Modifying the Width of Network Module Slots
54
Installing Network Modules in Cisco 3800 Series Routers
OL-5973-01
To cover an empty network module slot:
•
Extended single-wide slot—Install a slot adapter as described in the
. Then attach a blank faceplate and tighten the two screws.
•
Extended double-wide slot—Install a slot divider as described in the
. Install a slot adapter in each single-wide slot as described in the
“Installing and Removing Slot Adapters” section on page 59
. Then attach a blank faceplate in each
slot and tighten the two screws.

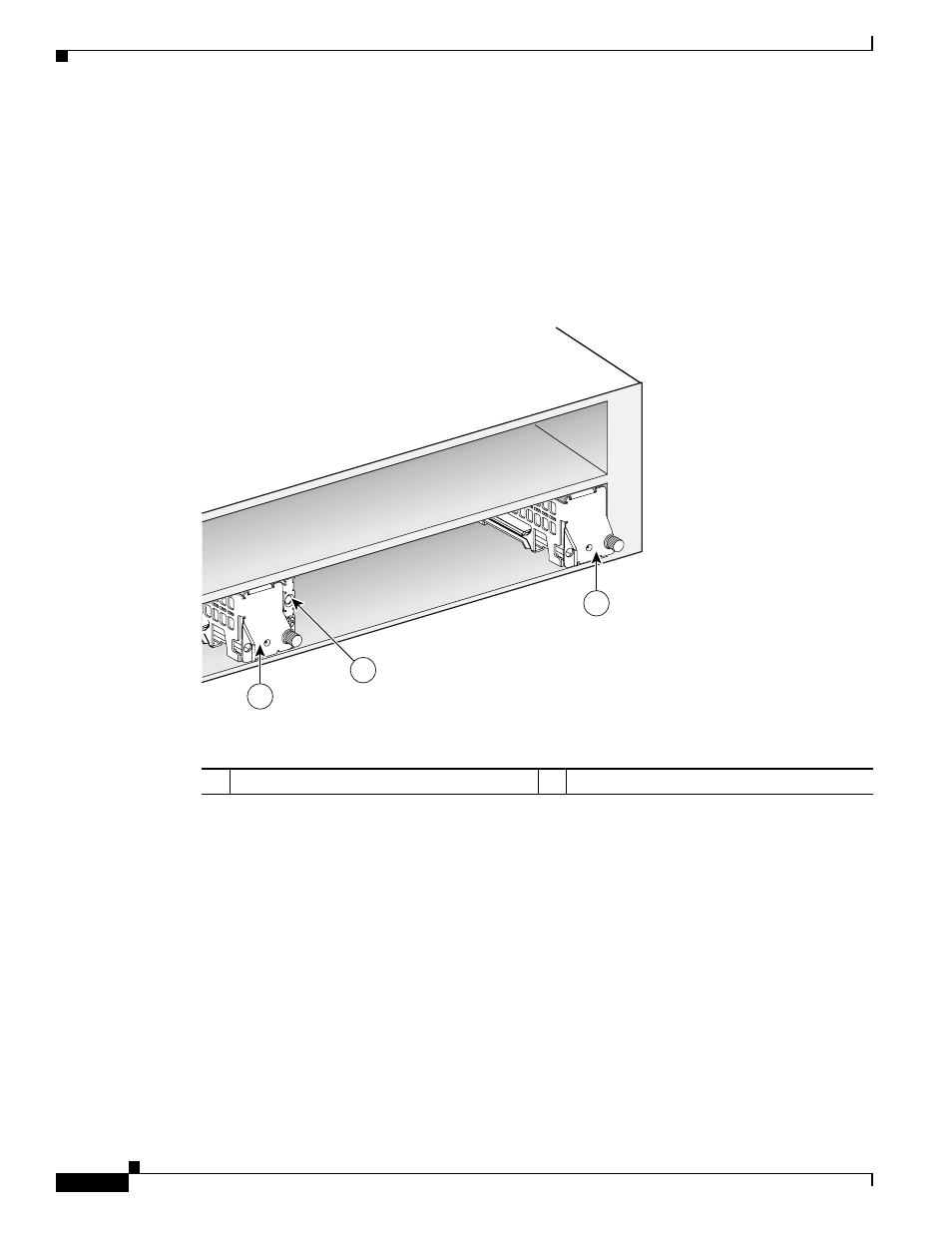

Figure 31
Slot Divider and Adapters for Standard Single-Wide Network Modules (Generic Router)
1
Slot divider
2
Slot adapters
121386
1
2
2
