Rack-Mounting the Router
13
Installing Cisco 3800 Series Routers in an Equipment Rack
OL-5969-01

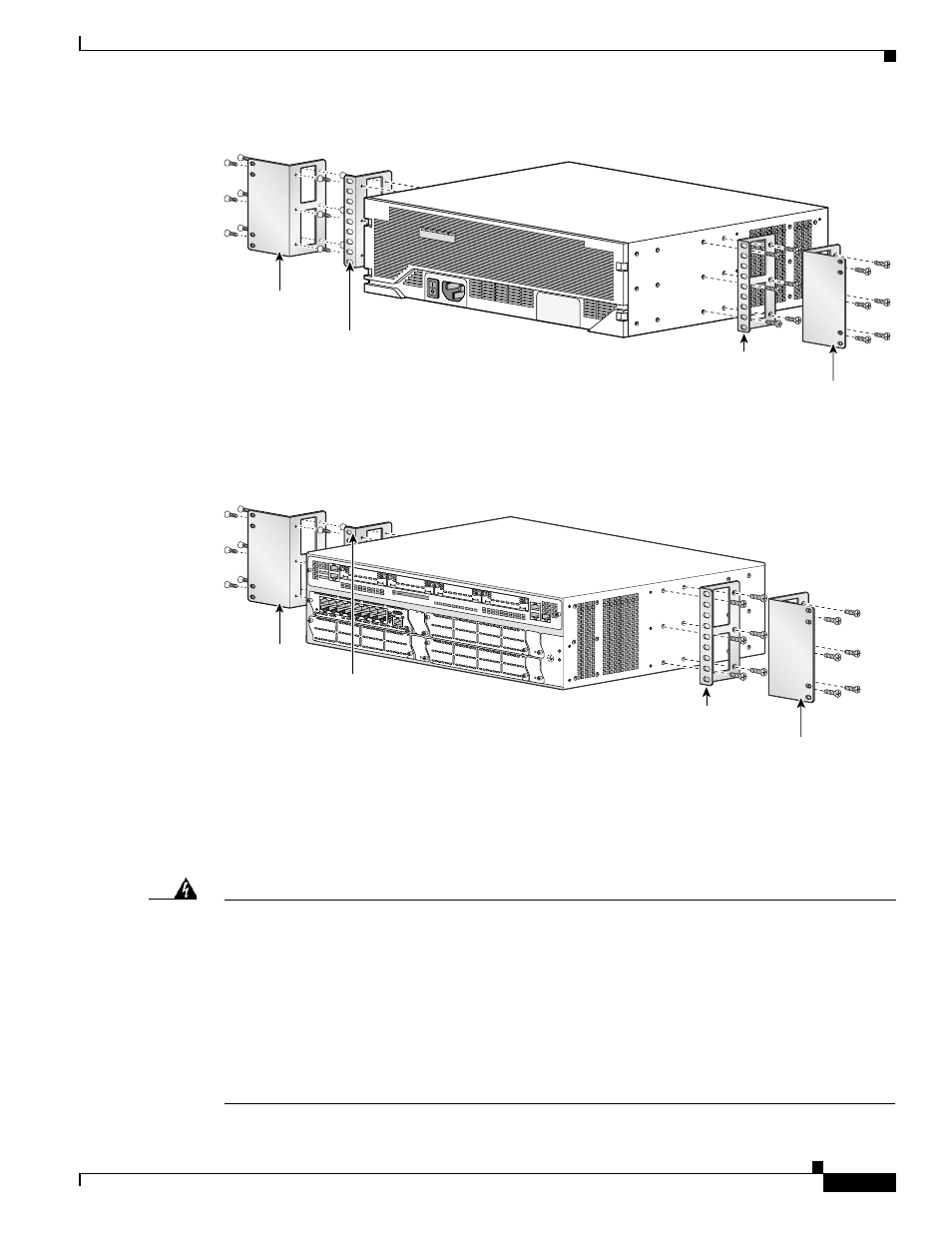

Figure 5 Bracket Installation for Center Mounting with Front Panel Forward
Figure 6 Bracket Installation for Center Mounting with Rear Panel Forward
Installing the Router in a Rack
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special
precautions to ensure that the system remains stable. The following guidelines are provided to ensure
your safety:
This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component
at the bottom of the rack.
If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
Statement 1006
Left bracket
for 23-inch rack
117985
Left bracket
for 19-inch rack
Use six screws on each side.
Right bracket
for 19-inch rack
Right bracket
for 23-inch rack
Left bracket
for 23-inch rack
EN
NM- ESW- 16
15x 7x 14x 6x 13x 5x
FastEthernet Ports
12x 4x 11x 3x 10x 2x 9x 1x 8x 0x
Ext Pwr -48V
0x
8x 7x
15x
GE 10/100/ 1000 Base-Tx
117986
Right bracket
for 19-inch rack
Right bracket
for 23-inch rack
Left bracket
for 19-inch rack
Use six screws on each side.
