Installing and Upgrading Internal Components in Cisco 3800 Series Routers
OL-5975-04
AIM Installation and Removal
Installing a CompactFlash Memory Card on the AIM
Complete the procedure below for installing a CompactFlash memory card mounted on the AIM.
Note Not all AIMs require installation of a CompactFlash memory card.
Step 1 Locate the CompactFlash memory card on the AIM. (See Figure 62 .)
Step 2 Insert the connector end of the CompactFlash memory card into the connector until the card is seated in
the connector. (See
Figure 62 and Figure 63 .)
Step 3 Reinstall the AIM as described in “AIM Installation and Removal” section on page 88 .
Step 4 Reinstall the chassis cover as described in the “Reinstalling the Cover on a Cisco 3825 Router” section
on page 105 and “Installing or Replacing the Plug-In Motherboard in a Cisco 3845 Router” section on
page 105 .
Step 5 Refer to the “Verifying AIM Installation” section on page 93 .

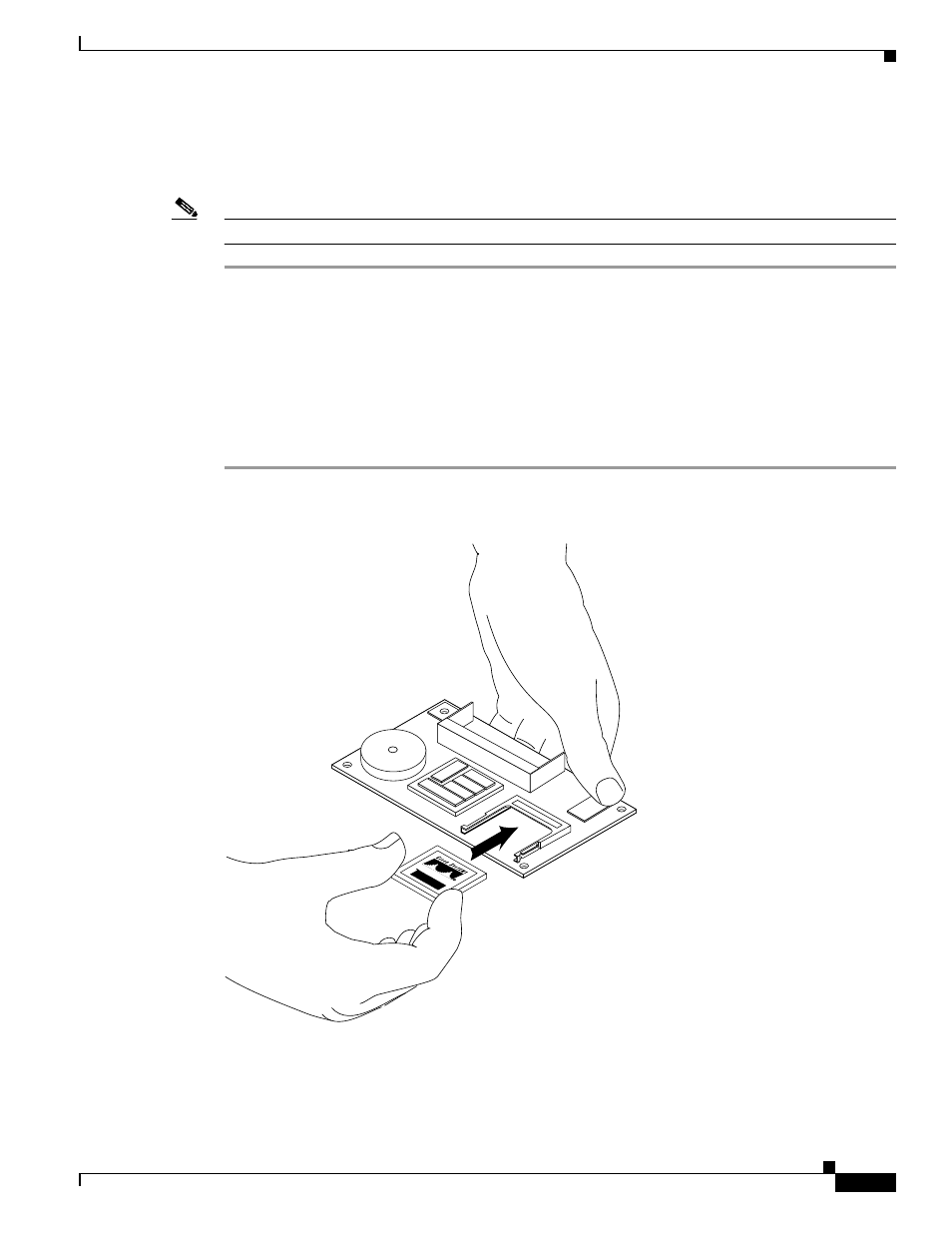

Figure 62 CompactFlash Memory Card Location on the AIM
120375
