REPLACEMENT PARTS TRANSMIG 250i
Manual 0-5187 6-3 REPLACEMENT PARTS
1
2
3
6
7
8 9
10
11
12
13
5
4
Art # A-10333

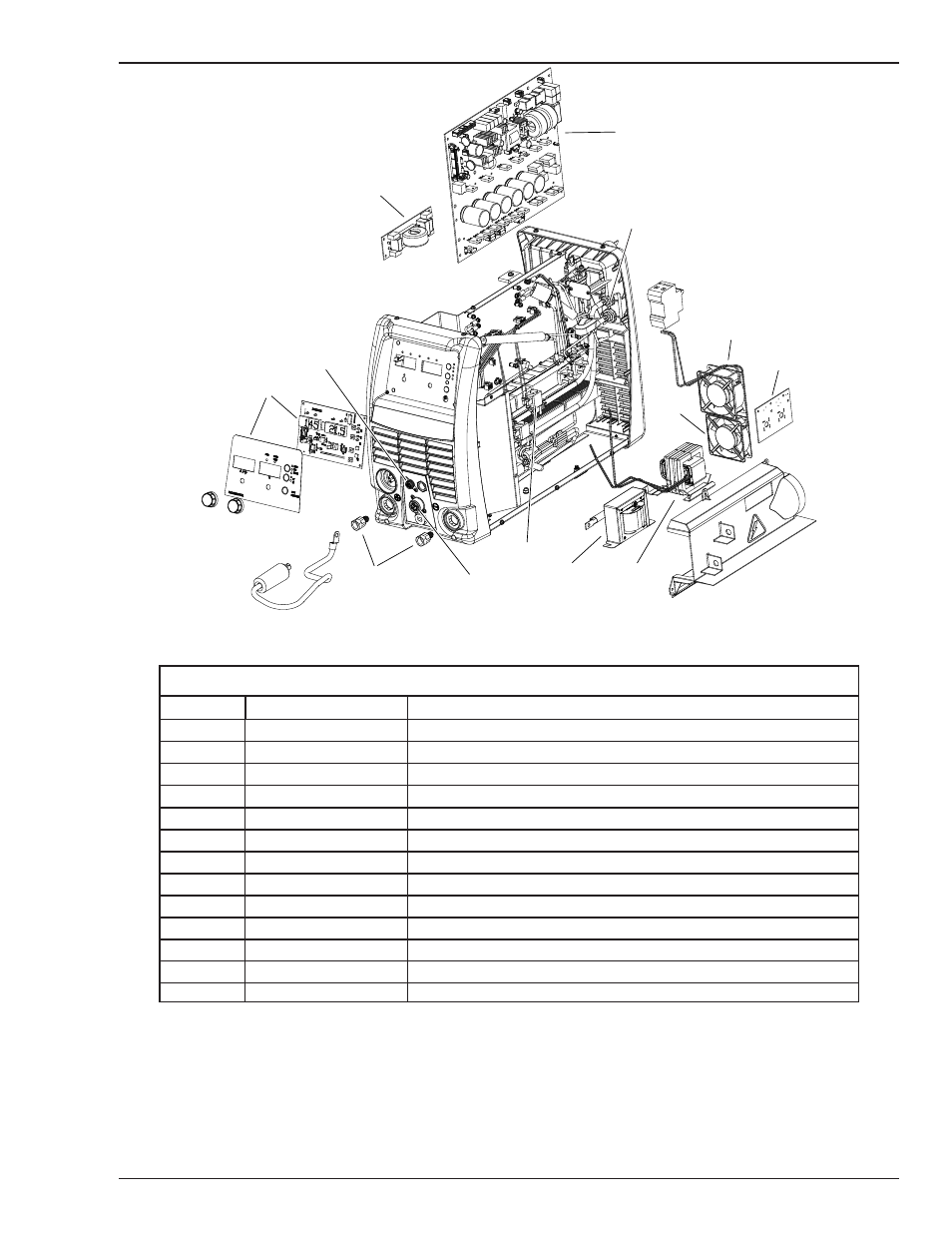

Figure 6-3 Right side and Front Replacement Parts
TRANSMIG 250i POWER SOURCE SPARE PARTS (RIGHT SIDE AND FRONT)
ITEM PART NUMBER DESCRIPTION
1 W7005330 PCB, 250i Main Power
2 W7005347 PCB, EMI, 250A
3 W7003036 Socket 8 pin (Note: 8 pin Control Plug Part# is UOA706900)
4 W7005336 PCB, Control Assy, 250i
5 W7005304 Dinse, Socket Panel, 50mm
6 W7005357 Socket 10 pin (Note: 10 pin Control Plug Part# is W7005358)
7 W7005315 Solenoid,24V,0-0.8MPa
8 W7005351 Inductor
9 W7005302 Transformer, Main, 250i
10 W7005331 PCB, Mov/Bridge, 250A
11 W7005317 Fan, 92x25 LS 24V
12 W7005316 Fan, 92x38 HS 24V
13 W7005355 Inlet, Gas, QC, Male
Table 6-3
