Transmig 250i installation/setup – Tweco 250i Multi Process Welding Inverter 2RT Wire Feeder User Manual
Page 40

TRANSMIG 250i
INSTALLATION/SETUP
INSTALLATION/SETUP 3-22
Manual 0-5187
3.13 Attaching the Tweco Professional MIG Torch (Euro)
1. Align the pins on the MIG Torch Cable with the pin holes of the MIG Torch receptacle on the front of the system
above the positive(+) dinse type receptacle. Press the MIG Torch in and secure by turning the locking ring to
the right (clockwise)
.
Refer to Figure 3-17.
Attach MIG Torch. Turn
locking ring to the right
Art # A-10338

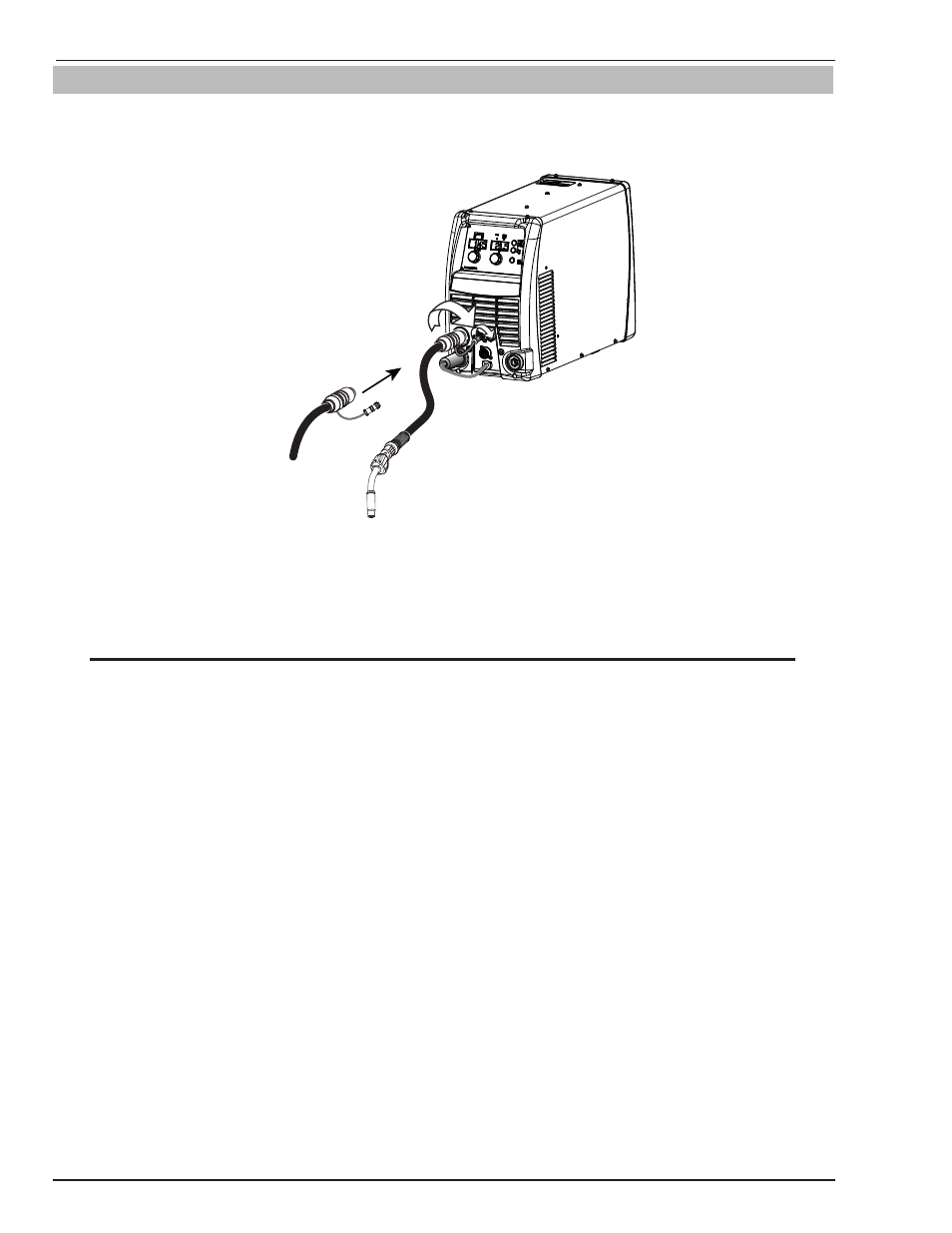

Figure 3-17: Mount MIG Torch Cable to Adapter Socket
2. If equipped, align the keyways of the MIG Torch Switch connector pigtail with the 8 pin receptacle to the right
of the MIG Torch cable and plug them together. Secure by turning the locking ring to the right (clockwise ).
Refer to Figure 3-17.
NOTE
When disconnecting the MIG Torch trigger switch leads from the machine, DO NOT pull on the wires.
Loosen the locking ring and gently pull the plug out of the socket.
