Transmig 200i, 05 volt-ampere curves – Tweco 200i Multi Process Welding Inverter User Manual
Page 74
TRANSMIG 200i
POWER SOURCE PROBLEMS AND ROUTINE SERVICE REQUIREMENTS 5-6 Manual 0-5209
5.05 Volt-Ampere Curves

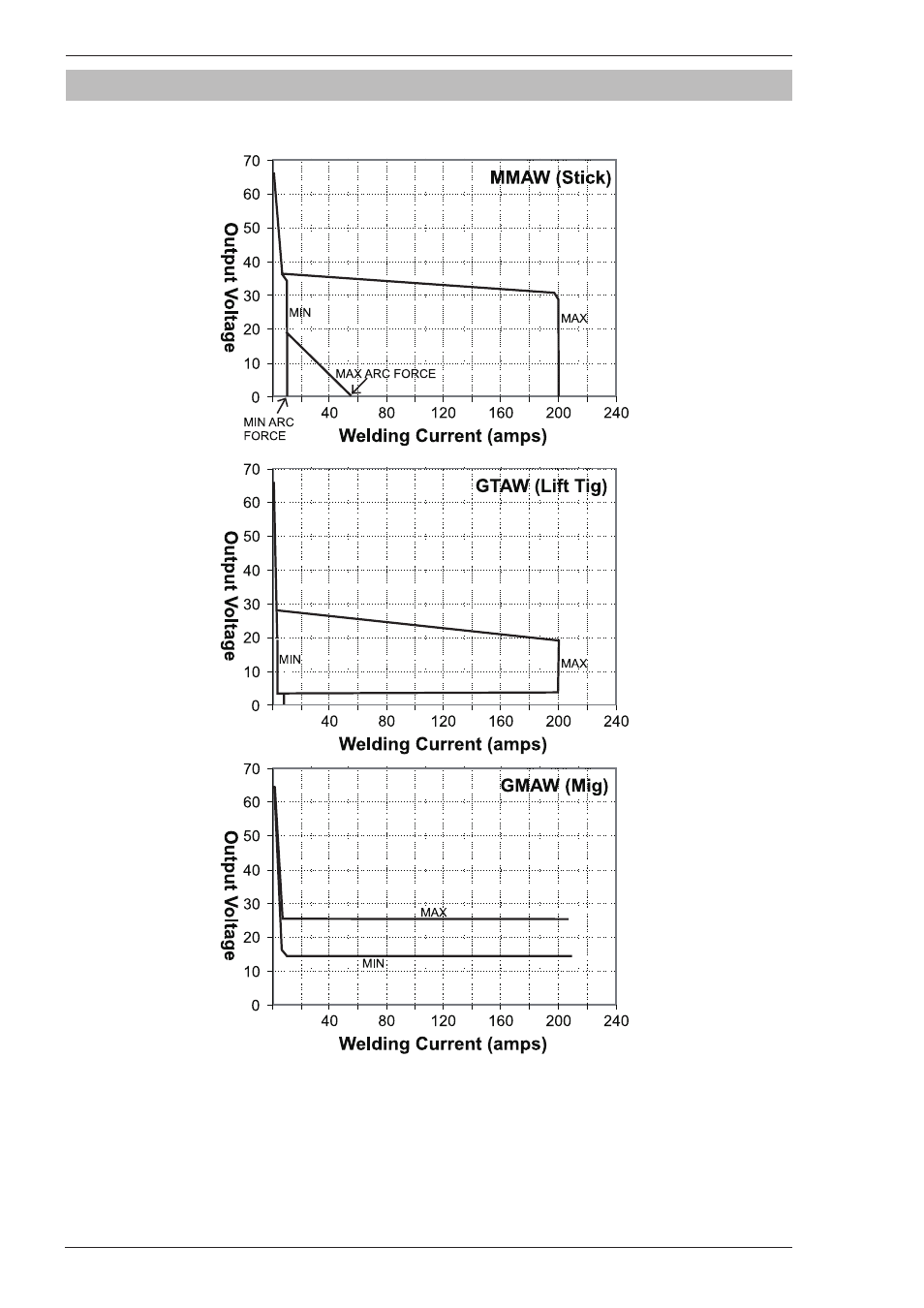

Voltage-Amperage Curves shows maximum voltage and amperage output capabilities of welding power source.
Curves of other settings fall between curves shown.
Art # A-10435_AB
Figure 5-1: Transmig 200i Volt-Ampere Curves
