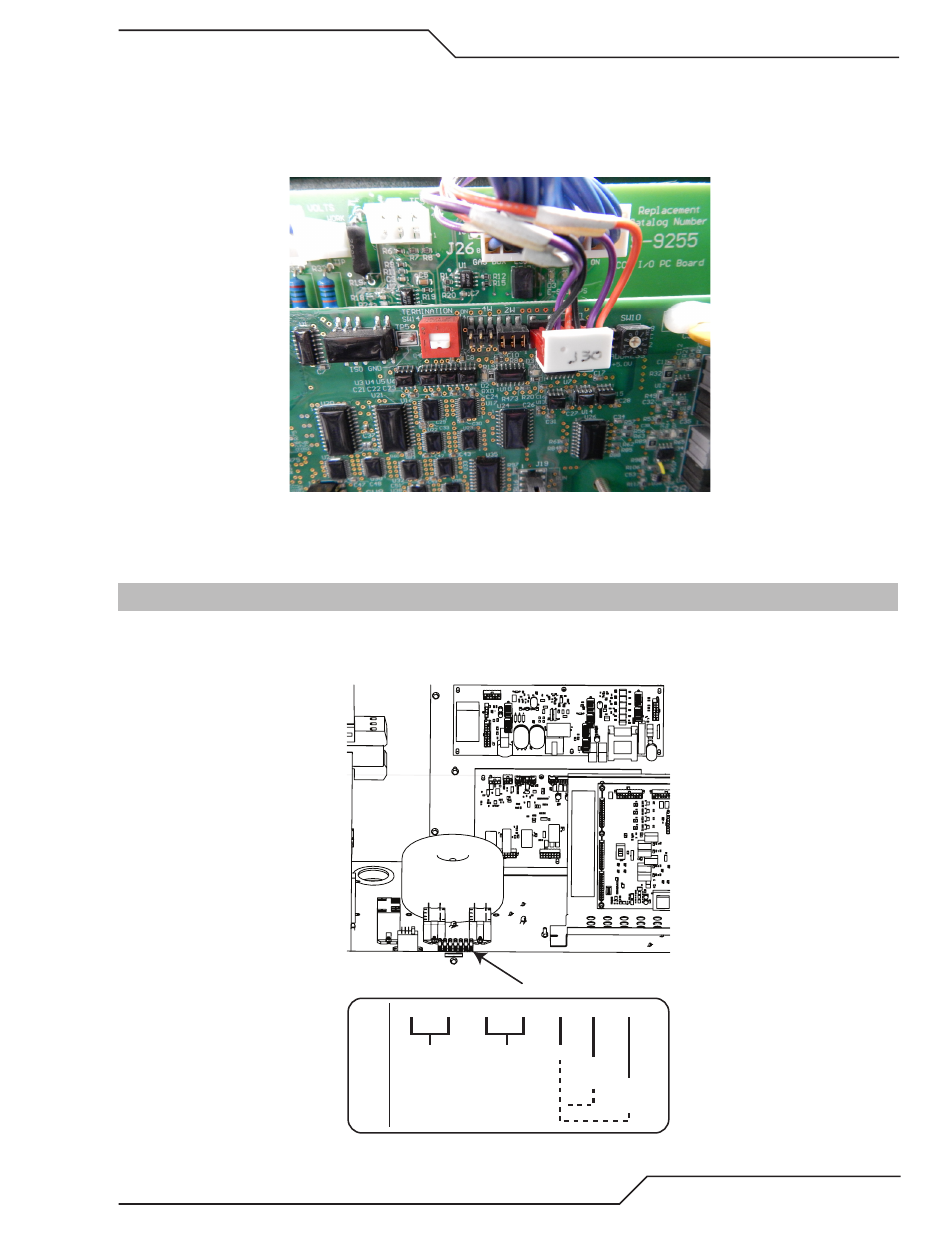

2 - Wire and 4 - Wire settings
When used with the TSC-3000 the plug should be in the 2 wire (2W) position shown below.
For other CNC controls using 4 wire communication such as the XT iCNC, place the jumper in the 4W position.
Art # 12322
3.14 Height Control Connections
The terminal strip provides connections to negative Arc Volts (Torch or electrode), Tip Volts (Pilot) and Work.
These are for a height control that requires connection to the full non-divided arc voltage. Also available on the
terminal strip are 120VAC and 24 VAC. The allowable current draw is 100ma @ 120VAC and 1Amp @ 24 VAC.
Art # A-11900
24 VAC
@ 1A
TB4 1 2 3 4 5 6 7
120 VAC
@ 100 ma.
Work
Tip Volts
(Pilot)
Arc Volts
(Torch)
Art # A-11954
