ULTRA-CUT 200 XT
Manual 0-5304 SPECIFICATIONS 2-7

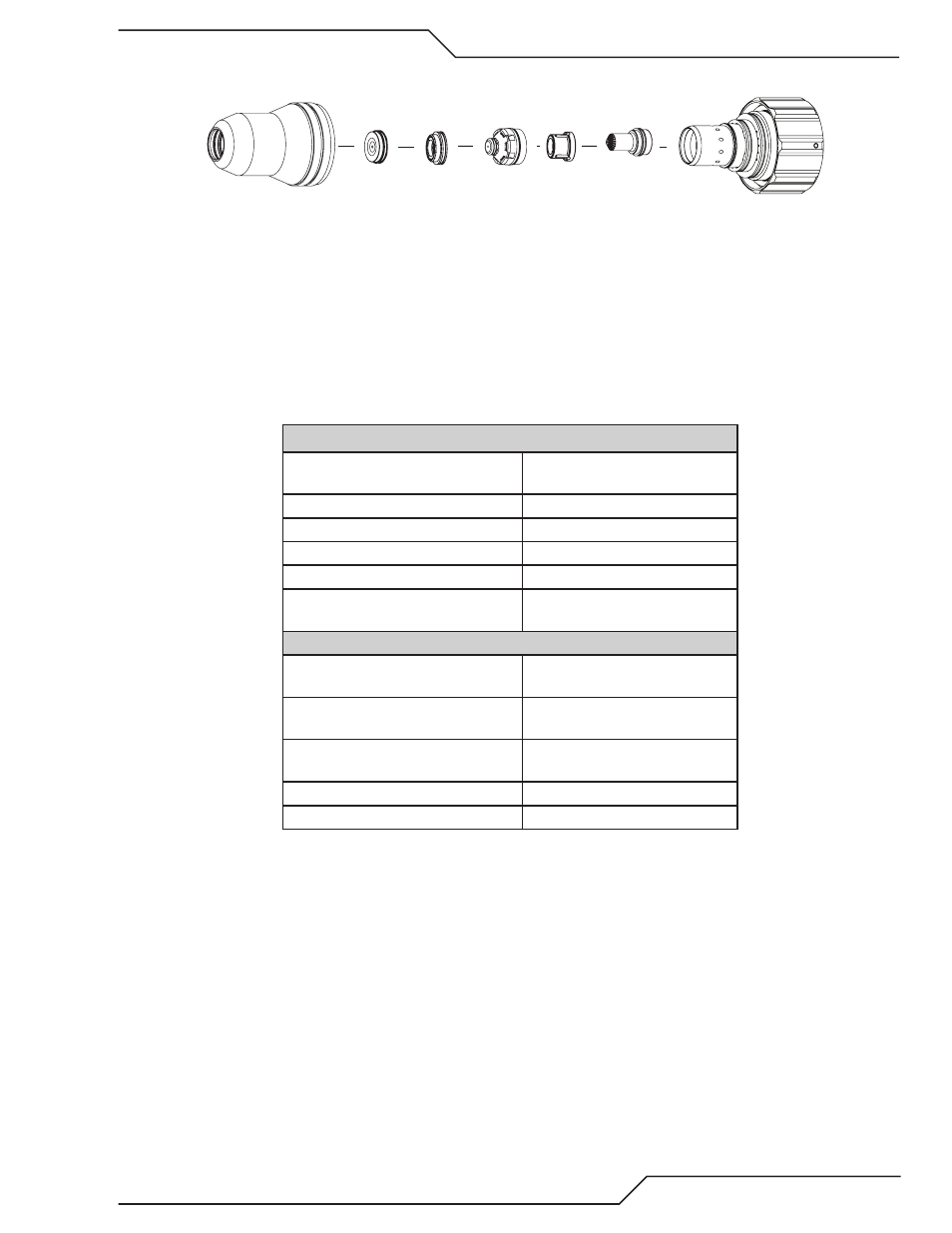

C. Torch Parts (Generic Parts Shown)
Cartridge Shield Cup
Art # A-04741_AB
Electrode Tip
Plasma Gas
Distributor
Shield Gas
Distributor
Shield Cap
D. Parts - In - Place (PIP)
The torch is designed for use with a power supply which senses coolant return flow to confirm that torch parts are
in place. If coolant return flow to the power supply is absent or insufficient the power supply will not provide power
to the torch. Coolant leakage from the torch also indicates that torch parts are absent or installed improperly.
E. Type of Cooling
Combination of gas stream through torch and liquid cooling.
F. XT Torch Data
XT™ Torch Ratings
Ambient
Temperature
104° F
40° C
Duty Cycle 100% @ 200 Amps
Maximum Current 200 Amps
Voltage (Vpeak) 500V
Arc Striking Voltage 10kV
Current Up to 200 Amps, DC,
Straight Polarity
XT ® Torch Gas Specifications
Plasma Gases: Compressed Air, Oxygen,
Nitrogen, H35
Shield Gases: Compressed Air, Oxygen,
Nitrogen, Water
Operating Pressure 125 psi ± 10 psi
8.6 bar ± 0.7 bar
Maximum Input Pressure 135 psi / 9.3 bar
Gas flow 10 - 450 scfh
