AUTO-CUT 300 XT
6-2 PARTS LIST Manual 0-5261

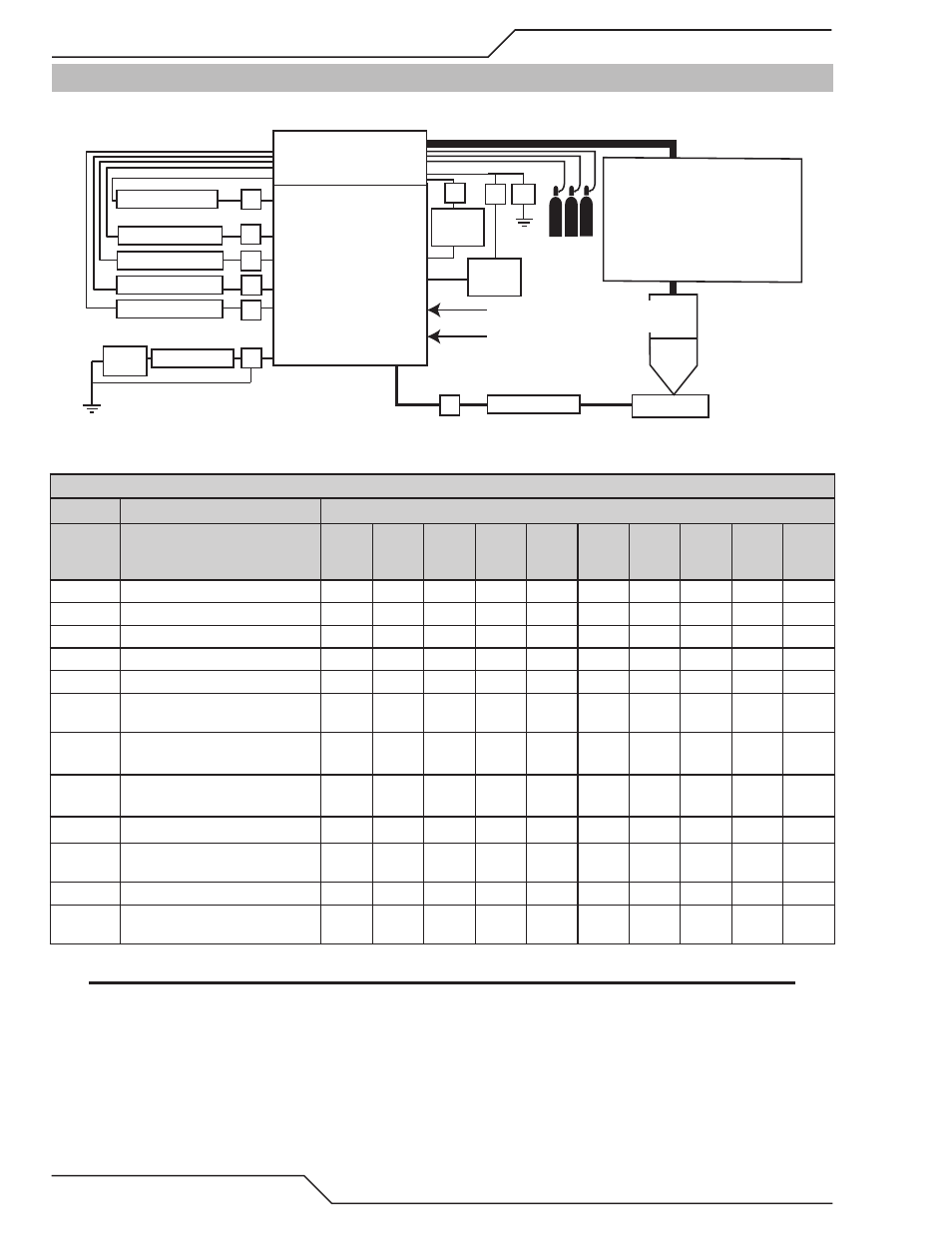

6.02 Leads and Cables
Refer to section 3.05 for ground connections and ground cables.
Work Cable O
Primary power
Work
Torch
Auto-Cut 300XT
Power Supply
Arc Starter /
Gas Control Module
(GCM-1000XT)
Pilot Return
Negative
Coolant Supply
Coolant Return
Control Cable
CNC
Positioning
Tube
Control
Cable
Ground
Cable
P
A
B
C
D
E
K
G: Torch Lead Set, Shielded
- Coolant Supply
w/ Negative
- Coolant Return
- Pilot Return
- Plasma Gas
- Shield Gas
F
Art # A-11902_AB
F1
CNC Cable
Leads Catalog Numbers; Auto-Cut 300 XT Power Supply, XT-301 Torch
Leads Length
Key Description
3 ft
1 m
5 ft
1.52 m
10 ft
3.05 m
15 ft
4.5 m
25 ft
7.6 m
35 ft
10.6 m
50 ft
15.2 m
75 ft
22.8 m
100 ft
30.5 m
125 ft
38.1 m
A,B,C,D,E Supply Lead Set 4-3096 4-3097 4-3098 4-3099 4-3100 4-3101 4-3102 4-3103 4-3104
A Pilot Return Cable (4 ft / 1.2 m) 9-4890
B Negative Cable 9-4892
C Coolant Hose, Supply 9-4886
D Coolant Hose, Return 9-4888
E
Control Cable, Power Supply to
Arc Starter
9-4941
F Ground Cable 9-4923
F1
Ground Cable, Gas
to Earth
9-4924 9-4925 9-4926 9-4927 9-4928 9-4929
G Torch Lead Assembly 4-3044 4-3045 4-3046 4-3047 4-3048
K
Control Cable, Power Supply
to GCM 1000 XT
9-9331
O Work Cable 9-9300 9-9301 9-9302 9-9303 9-9304 9-9305 9-9306 9-9307
P
Control Cable, CNC
to Power Supply
9-8312 9-8313 9-8315 9-8316 9-8317
NOTE :
Supply lead set includes Pilot Return Cable, Negative Cable, Coolant Supply & Return Hoses, and Control Cable.
