Page 34
AUTO-CUT 300 XT
3-10
INSTALLATION
Manual 0-5261

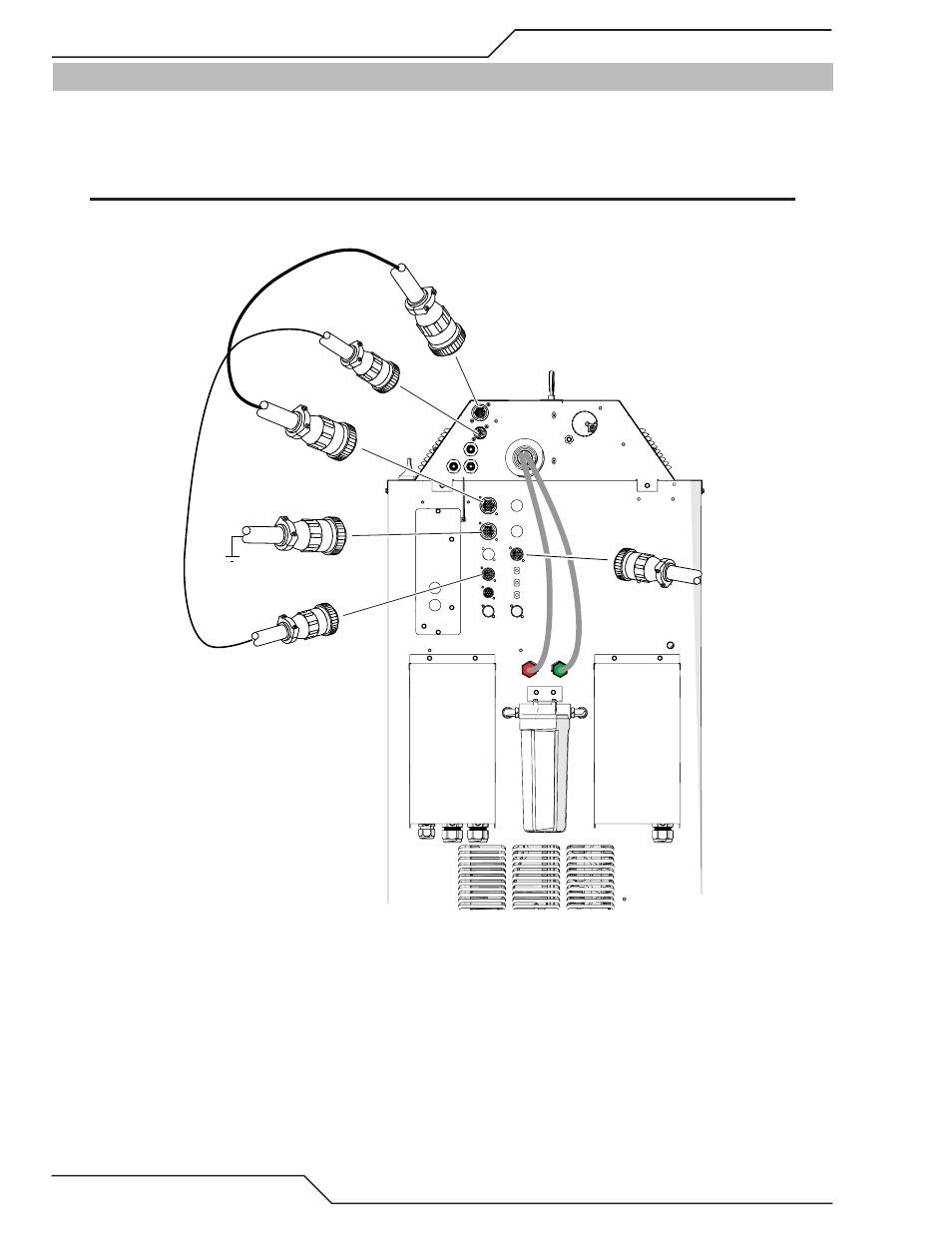

3.10 Cables for CNC, Remote Arc Starter/Gas Control
1. Connect one end of each cable to the power supply. Some cables shown are options and may not apply to
your system.
2. Connect the other end of the CNC cable to the CNC device.
NOTE
The CNC cable shield must be attached to ground at the CNC end.
COOLANT
RETURN SUPPLY
Art # A-11907
J15 To CNC Control
J59 To
Arc Starter
J55 To Gas Control
J54 TSC/
Comm
J56 To Gas Control
J58 Arc Starter
