AUTO-CUT 300 XT
Manual 0-5261 SPECIFICATIONS 2-1
SECTION 2: SPECIFICATIONS
2.01 General Description Of The System
A typical Auto-Cut 300 XT™ plasma cutting system includes:
• One Power Supply
• General Purpose Plasma Cutting Torch with Connecting Leads
• Torch Spare Parts Kit
The components are connected at installation.
2.02 Plasma Power Supply
The power supply provides the necessary current for cutting operations, and monitors system performance. The
power supply also cools and circulates the liquid coolant for the torch and leads.
2.03 Plasma Cutting Torch
The torch delivers the controlled current to the work through the main arc, causing the metal to be cut.

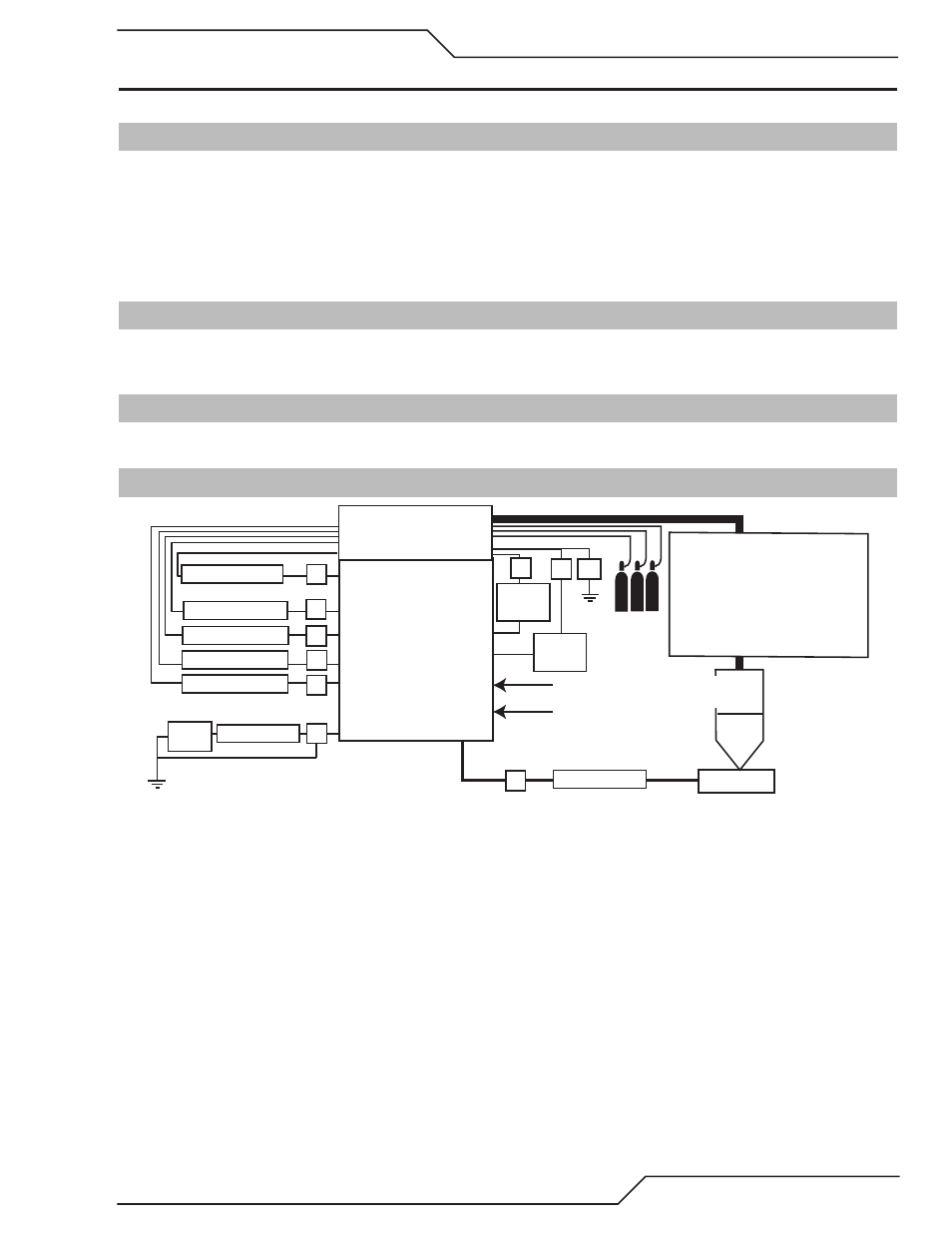

2.04 System Component Layout
Work Cable O
Primary power
Work
Torch
Auto-Cut 300XT
Power Supply
Arc Starter /
Gas Control Module
(GCM-1000XT)
Pilot Return
Negative
Coolant Supply
Coolant Return
Control Cable
CNC
Positioning
Tube
Control
Cable
Ground
Cable
P
A
B
C
D
E
K
G: Torch Lead Set, Shielded
- Coolant Supply
w/ Negative
- Coolant Return
- Pilot Return
- Plasma Gas
- Shield Gas
F
Art # A-11902_AB
F1
CNC Cable
