Page 55
Manual No. 0-4748
3-31
INSTALLATION
ULTRA-CUT 100

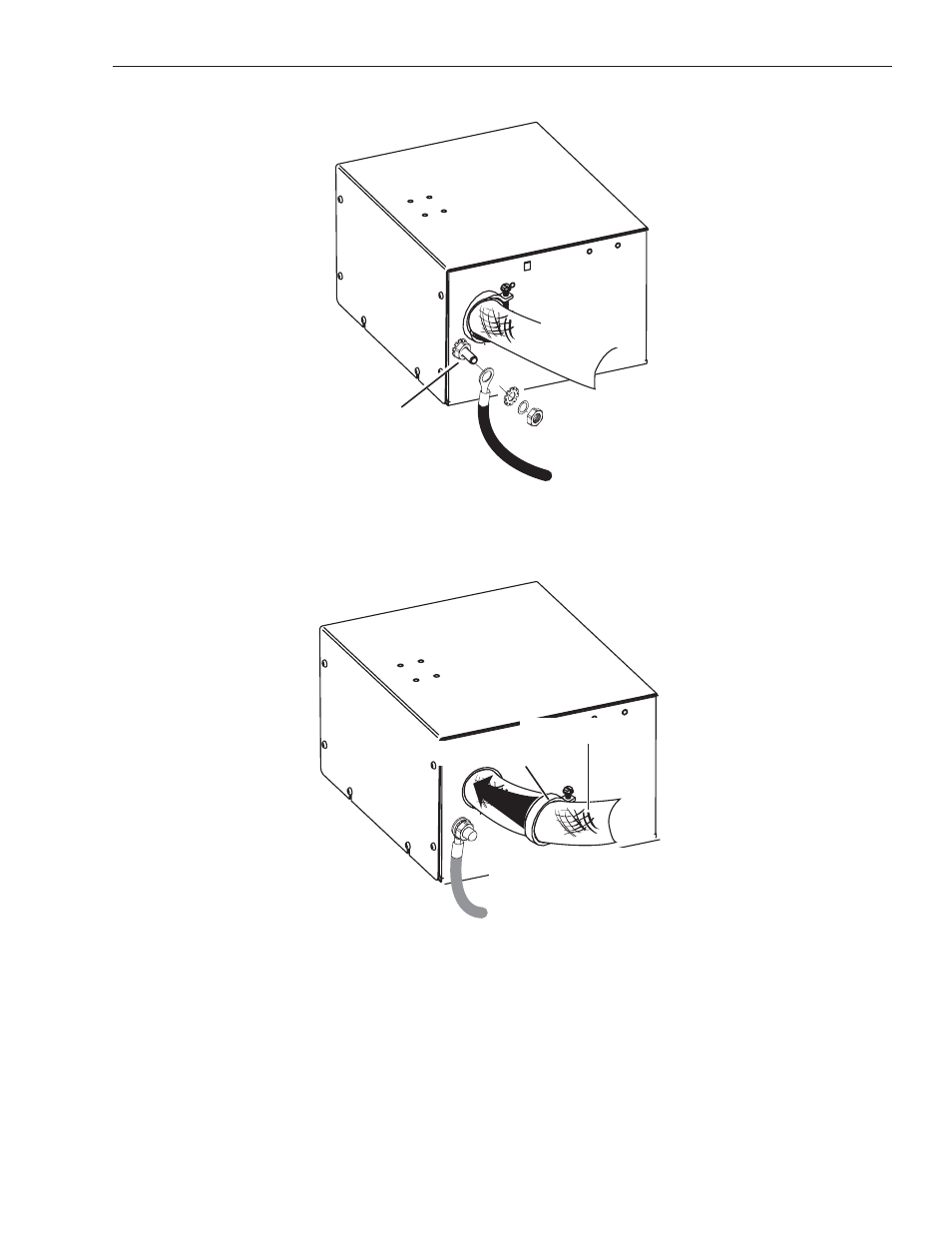

Ground Cable
Art # A-04758
1 Nut and 1 Washer
Remain in Place
Torch Leads
• Use a clamp to secure the Torch Lead Shield braid to the port on the Remote Arc Starter as shown.
Art # A-04759
Coolant and Pilot Leads
to Torch Valve Assembly
Torch Leads Shield
Shield Clamp
Connect Control Cable
1. Connect the Remote Arc Starter cable to the Remote Arc Starter receptacle.
