Tweco SC11 User Manual
Page 42
APPENDIX
A-2
Manual 0-2556

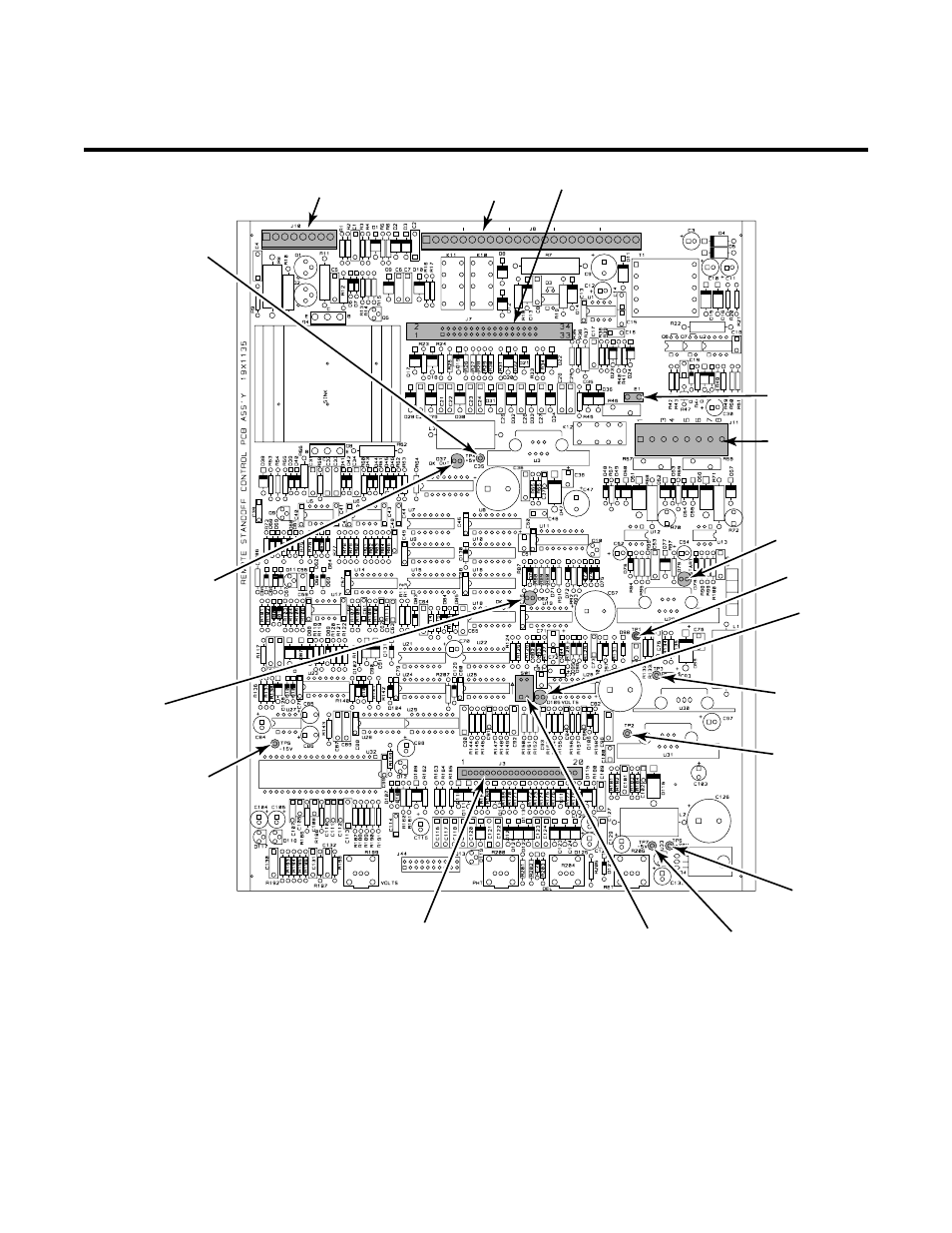

APPENDIX 2: STANDOFF CONTROL PC BOARD
PARTS LOCATION
J3
A-00701
J11
E1
SW1
J10
J8
J7
TP4
D37
D82
TP6
D79
TP1
TP3
D105
TP2
TP5
TP7
Indicator LED
Function
D37
ON= OK-To-Move (OK OUT) from Standoff Control
D82
ON = OK-To-Move (OK PS) received from Power Supply
D79
ON = START signal received from CNC Control
D105
OFF = Voltage in range to regulate
ON = 0 volts, No Arc or 220
