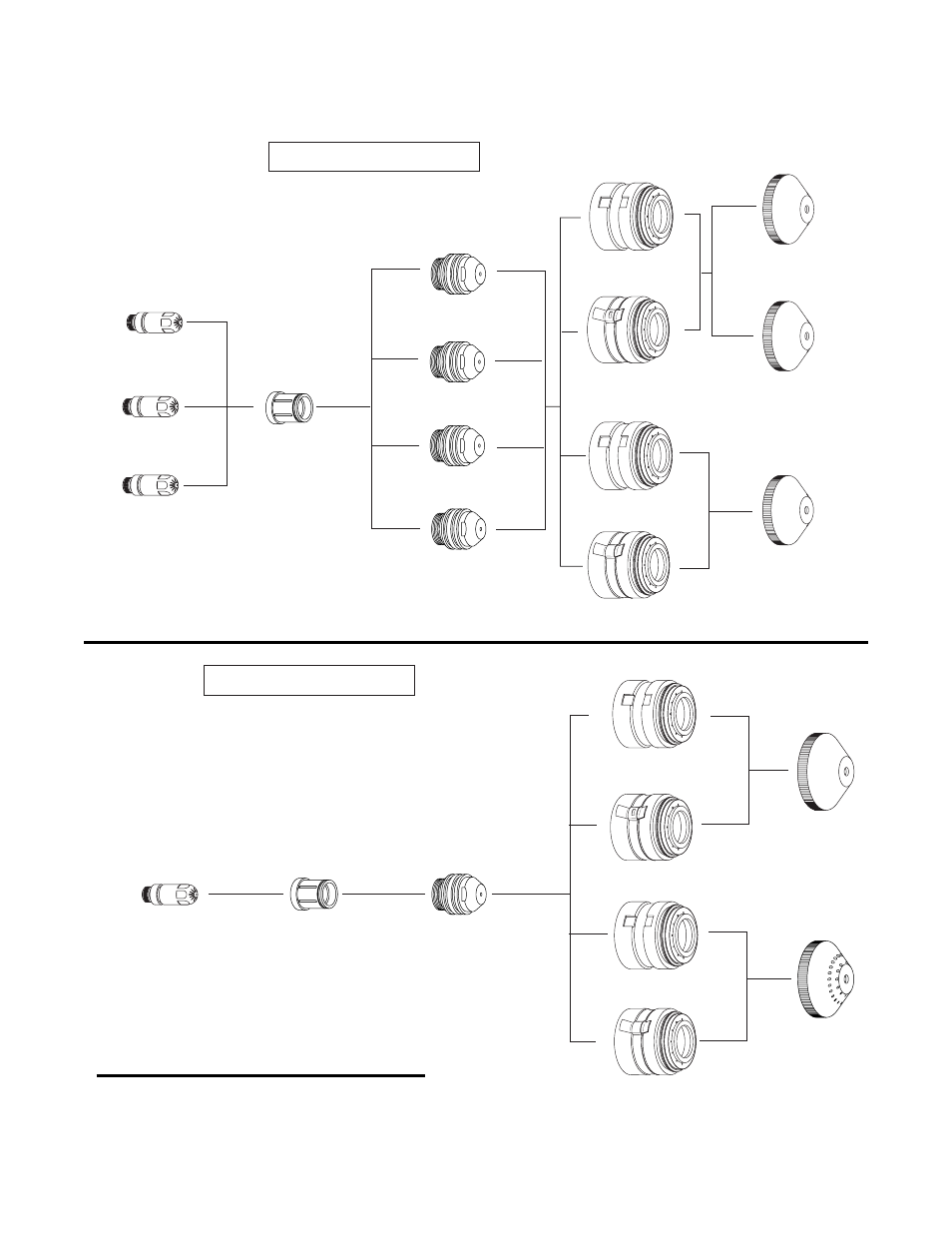

Manual 0-2689 6-5 PARTS LISTS
Maximizer 300 With Merlin 6000
Tips
Gas
Distributor
Art # A -03213
Electrodes
50 - 225 amps
Catalog No. 20-0008
O-Ring
Cat. No. 8-3484
0.055" Orifice, 100 amps
Catalog No. 20-1031
0.073" Orifice, 150 amps
Catalog No. 20-1032
0.083" Orifice, 225 amps
Catalog No. 20-1033
0.043" Orifice, 50 amps
Catalog No. 20-1030
* - Licensed under U.S. Patent Nos. 5,120,930 and 5,132,512
225 amps
Catalog No. 20-1017
50 - 100 amps
Catalog No. 20-1015
Using O
2
(100 - 225 amps)
150 amps
Catalog No. 20-1016
End Caps
Standard Cutting
Catalog No. 20-1002
Standard Cutting
100 -225 amps
Catalog No. 20-1004
Standard Cutting
50 amps
Catalog No. 20-1003
Underwater Cutting
100 - 300 amps
Catalog No. 20-1028 *
Underwater Cutting
Catalog No. 20-1029
Shield Cup
Body
Ohmic Clip
Shield Cup Body
Catalog No. 20-1427
Ohmic Clip Shield Cup Body
for Underwater Cutting Catalog No. 20-1428
Cutting Consumables
Art # A -03214
300 amps
Catalog No. 20-1009
O-Ring
Cat. No. 8-3484
0.109" Orifice, 300 amps
Catalog No. 20-1034
* - Licensed under U.S. Patent Nos. 5,120,930 and 5,132,512
Using O
2
(300 amps)
Tip
Gas
Distributor
Electrode
300 amps
Catalog No. 20-1018
Standard Cutting
300 amps
Catalog No. 20-1005
Underwater Cutting
100 - 300 amps
Catalog No. 20-1028 *
End Caps
Standard Cutting
Catalog No. 20-1002
Underwater Cutting
Catalog No. 20-1029
Shield Cup Body
Ohmic Clip Shield Cup Body
Catalog No. 20-1427
Ohmic Clip Shield Cup Body
for Underwater Cutting Catalog No. 20-1428
Cutting Consumables
NOTE:
If using a torch height control which offers an ohmic
sensing feature, select a shield cup body with an ohmic
clip tab. Use catalog # 20-1427 for normal cutting
and catalog 20-1428 for cutting underwater.
