Tweco 6000 Cutting Systems - Manual (Page 42)

PARTS LISTS 6-4 Manual 0-2689
6.04 Torch Consumables

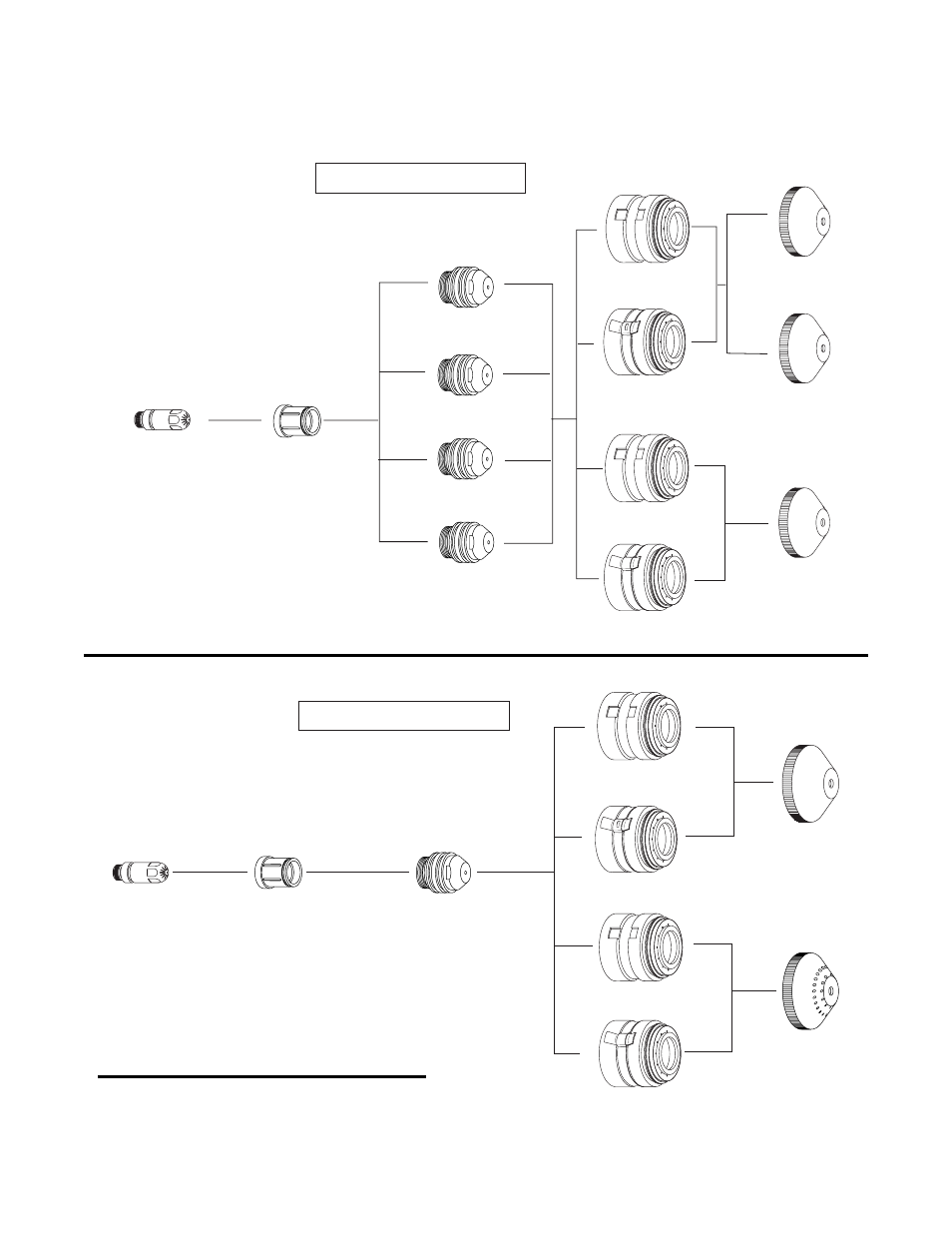

Maximizer 300 With Merlin 6000
Art # A -03014
300 amps
Catalog No. 20-1021
300 amps
Catalog No. 20-1009
O-Ring
Cat. No. 8-3484
0.109" Orifice, 300 amps
Catalog No. 20-1034
Standard Cutting
300 amps
Catalog No. 20-1005
Underwater Cutting
100 - 300 amps
Catalog No. 20-1028 *
* - Licensed under U.S. Patent Nos. 5,120,930 and 5,132,512
Using Air (300 amps)
Tip
Gas
Distributor
End Caps
Electrode
Standard Cutting
Catalog No. 20-1002
Underwater Cutting
Catalog No. 20-1029
Shield Cup Body
Ohmic Clip Shield Cup Body
Catalog No. 20-1427
Ohmic Clip Shield Cup Body
for Underwater Cutting Catalog No. 20-1428
Cutting Consumables
Tips
Gas
Distributor
End Caps
Electrode
50 - 225 amps
Catalog No. 20-1018
Standard Cutting
Catalog No. 20-1002
50 - 225 amps
Catalog No. 20-0008
O-Ring
Cat. No. 8-3484
0.055" Orifice, 100 amps
Catalog No. 20-1031
0.073" Orifice, 150 amps
Catalog No. 20-1032
0.083" Orifice, 225 amps
Catalog No. 20-1033
Standard Cutting
100 -225 amps
Catalog No. 20-1004
0.043" Orifice, 50 amps
Catalog No. 20-1030
Standard Cutting
50 amps
Catalog No. 20-1003
Underwater Cutting
100 - 300 amps
Catalog No. 20-1028 *
Underwater Cutting
Catalog No. 20-1029
* - Licensed under U.S. Patent Nos. 5,120,930 and 5,132,512
Using Air (50 - 225 amps)
Shield Cup
Body
Art # A -03013
Ohmic Clip
Shield Cup Body
Catalog No. 20-1427
Ohmic Clip Shield Cup Body
for Underwater Cutting Catalog No. 20-1428
Cutting Consumables
NOTE:
If using a torch height control which offers an ohmic
sensing feature, select a shield cup body with an ohmic
clip tab. Use catalog # 20-1427 for normal cutting
and catalog 20-1428 for cutting underwater.
