APPENDIX
A-14
Man
ual 0-2690
APPENDIX 2:
CUTTING SPEED CHAR
TS FOR
MERLIN 6000GST SYSTEMS (contin
ued)
NOTE
If the Optional Secondary Gas/Water Flow Control is used on the Gas Control Module, then the Gas HIGH-FLOW/LOW-FLOW
switch must be in the HIGH-FLOW position.
US Measurements

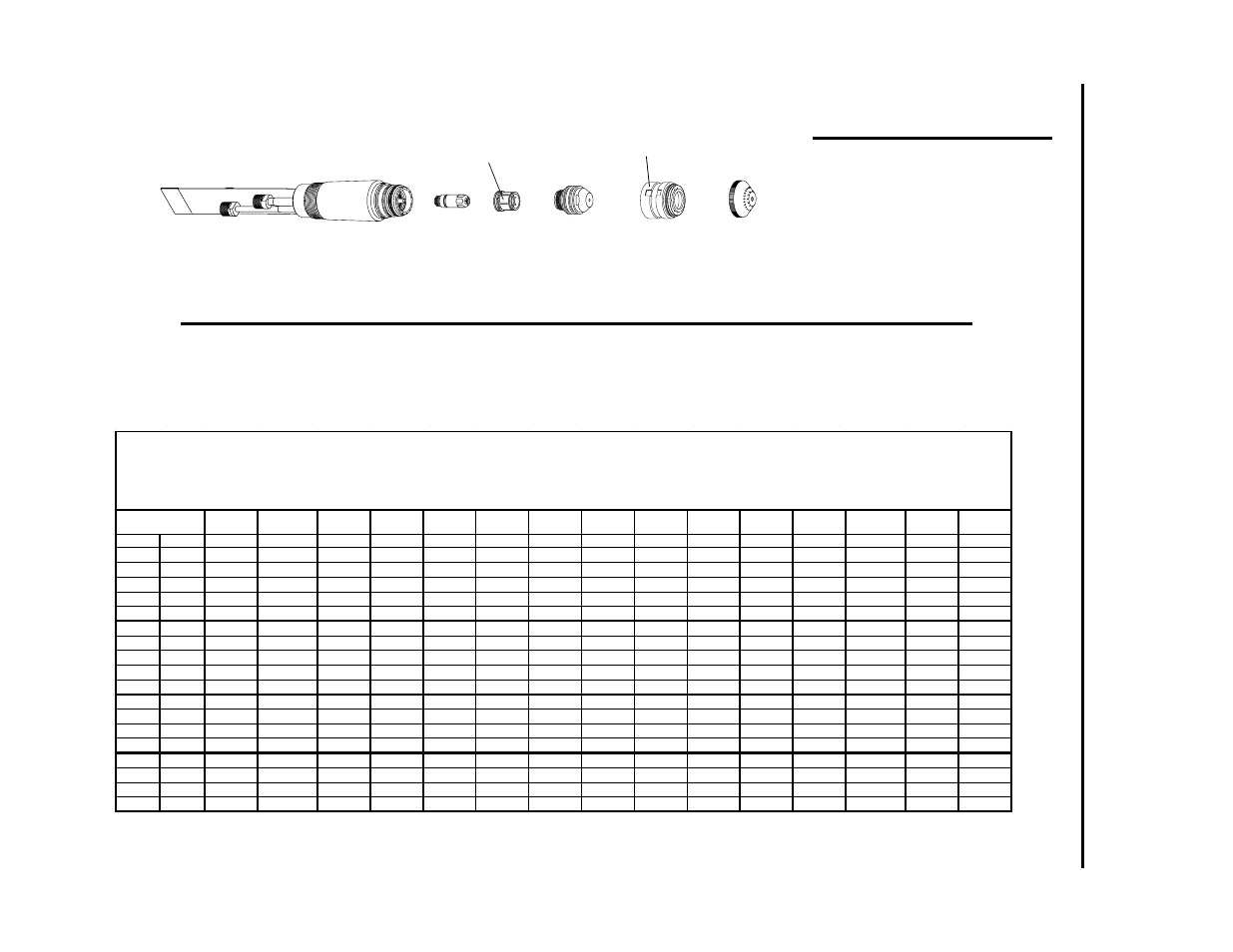

Oxygen Plasma Cutting Data Chart
Maximizer 300 Torch
Mild Steel - Underwater (Water Table)
Oxygen Plasma / Air Secondary
Electrode
Gas
Distributor
Tip End Cap Amperage
Output
Volts
Speed Standoff
Preflow
Pressure
Preflow
Flowball
Plasma
Pressure
Plasma
Flowball
Secondary
Pressure
Pierce
Delay
Pierce
Height
inches Gauge Cat. No. Cat. No. Cat. No. Cat. No. amps vdc inches/min inches psi psi psi seconds inches
1/16 16 20-1018 20-0008 20-1031 20-1028 100 125 400 0.188 90 76 100 92 75 0.00 0.250
1/8 10 20-1018 20-0008 20-1031 20-1028 100 125 275 0.188 90 76 100 92 75 0.00 0.250
3/16 7 20-1018 20-0008 20-1031 20-1028 100 130 185 0.188 90 76 100 92 75 0.00 0.250
1/4 20-1018 20-0008 20-1031 20-1028 100 130 125 0.188 90 76 100 92 75 0.00 0.250
3/8 20-1018 20-0008 20-1031 20-1028 100 130 75 0.188 90 76 100 92 75 0.25 0.250
1/4 20-1010 20-0008 20-1032 20-1028 150 121 150 0.188 90 76 100 92 75 0.10 0.250
3/8 20-1010 20-0008 20-1032 20-1028 150 125 100 0.188 90 76 100 92 75 0.10 0.250
1/2 20-1010 20-0008 20-1032 20-1028 150 130 65 0.188 90 76 100 92 75 0.20 0.250
5/8 20-1010 20-0008 20-1032 20-1028 150 135 55 0.188 90 76 100 92 75 0.20 0.250
3/4 20-1010 20-0008 20-1032 20-1028 150 140 40 0.188 90 76 100 92 75 0.50 0.500
1/2 20-1010 20-0008 20-1033 20-1028 225 135 100 0.250 105 69 90 90 75 0.25 0.375
5/8 20-1010 20-0008 20-1033 20-1028 225 135 75 0.250 105 69 90 90 75 0.25 0.375
3/4 20-1010 20-0008 20-1033 20-1028 225 135 50 0.250 105 69 90 90 75 0.25 0.375
1 20-1010 20-0008 20-1033 20-1028 225 140 40 0.250 105 69 90 90 75 0.50 0.375
3/4 20-1021 20-1009 20-1034 20-1028 300 135 65 0.375 105 86 90 120 75 0.25 0.500
1 20-1021 20-1009 20-1034 20-1028 300 140 50 0.375 105 86 90 120 75 0.50 0.500
1 1/4 20-1021 20-1009 20-1034 20-1028 300 145 30 0.375 105 86 90 120 75 NR NR
1 1/2 20-1021 20-1009 20-1034 20-1028 300 145 20 0.250 105 86 90 120 75 NR NR
Material
Thickness
Art # A-02704
Torch Body
180˚ 9-6410
70˚ 9-6457 90˚: 9-6459
End Cap
(See Chart)
Tip
(See Chart)
Gas Distributor
(See Chart)
Electrode
(See Chart)
Shield Cup Body
No. 20-1029
NOTE:
If using a torch height control which
offers an ohmic sensing feature, select a
shield cup body with an ohmic clip tab.
Use catalog # 20-1427 for normal cut-
ting and catalog 20-1428 for cutting
underwater.
