APPENDIX 2:
CUTTING SPEED CHAR
TS FOR
MERLIN 6000GST SYSTEMS (contin
ued)
NOTE
If the Optional Secondary Gas/Water Flow Control is used on the Gas Control Module, then the Gas HIGH-FLOW/LOW-FLOW
switch must be in the HIGH-FLOW position.
US Measurements
Air Plasma Cutting Data Chart
Maximizer 300 Torch
Mild Steel - Underwater (Water Table)
Air Plasma / Air Secondary
Electrode
Gas
Distributor
Tip End Cap Amperage
Output
Volts
Speed Standoff
Plasma
Pressure
Plasma
Flowball
Secondary
Pressure
Pierce
Delay
Pierce
Height
inches Gauge Cat. No. Cat. No. Cat. No. Cat. No. amps vdc inches/min inches psi psi seconds inches
1/16 16 20-1018 20-0008 20-1031 20-1028 100 145 400 0.188 80 90 75 0.00 0.200
1/8 10 20-1018 20-0008 20-1031 20-1028 100 145 225 0.188 80 90 75 0.20 0.200
3/16 7 20-1018 20-0008 20-1031 20-1028 100 150 135 0.188 80 90 75 0.20 0.200
1/4 20-1018 20-0008 20-1031 20-1028 100 155 105 0.188 80 90 75 0.20 0.200
3/8 20-1018 20-0008 20-1031 20-1028 100 160 75 0.250 80 90 75 0.30 0.300
1/4 20-1018 20-0008 20-1032 20-1028 150 140 160 0.250 80 90 75 0.00 0.250
3/8 20-1018 20-0008 20-1032 20-1028 150 150 90 0.250 80 90 75 0.20 0.375
1/2 20-1018 20-0008 20-1032 20-1028 150 160 65 0.250 80 90 75 0.50 0.375
5/8 20-1018 20-0008 20-1032 20-1028 150 165 45 0.250 80 90 75 0.50 0.500
3/4 20-1018 20-0008 20-1032 20-1028 150 170 30 0.250 80 90 75 0.75 0.500
1/2 20-1018 20-0008 20-1033 20-1028 225 150 100 0.250 80 90 75 0.00 0.500
5/8 20-1018 20-0008 20-1033 20-1028 225 155 75 0.250 80 90 75 0.25 0.500
3/4 20-1018 20-0008 20-1033 20-1028 225 160 50 0.250 80 90 75 0.25 0.500
1 20-1018 20-0008 20-1033 20-1028 225 165 25 0.250 80 90 75 0.50 0.500
3/4 20-1021 20-1009 20-1034 20-1028 300 150 70 0.375 80 120 75 0.25 0.500
1 20-1021 20-1009 20-1034 20-1028 300 155 40 0.375 80 120 75 0.50 0.500
1 1/4 20-1021 20-1009 20-1034 20-1028 300 160 25 0.375 80 120 75 NR NR
1 1/2 20-1021 20-1009 20-1034 20-1028 300 165 20 0.375 80 120 75 NR NR
Material
Thickness

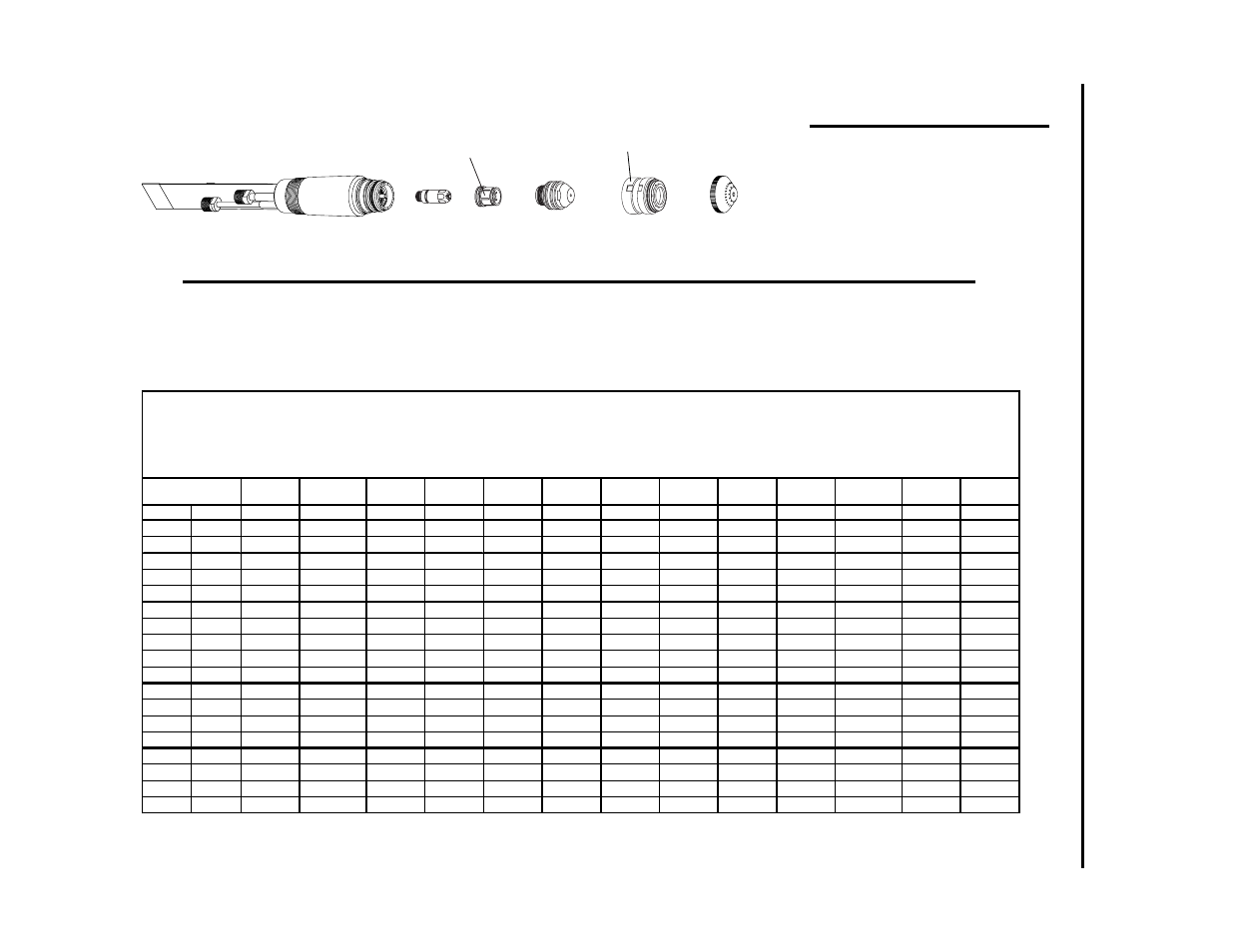

Art # A-02704
Torch Body
180˚ 9-6410
70˚ 9-6457 90˚: 9-6459
End Cap
(See Chart)
Tip
(See Chart)
Gas Distributor
(See Chart)
Electrode
(See Chart)
Shield Cup Body
No. 20-1029
NOTE:
If using a torch height control which
offers an ohmic sensing feature, select a
shield cup body with an ohmic clip tab.
Use catalog # 20-1427 for normal cut-
ting and catalog 20-1428 for cutting
underwater.
