Monitor Menu (1 of 5)

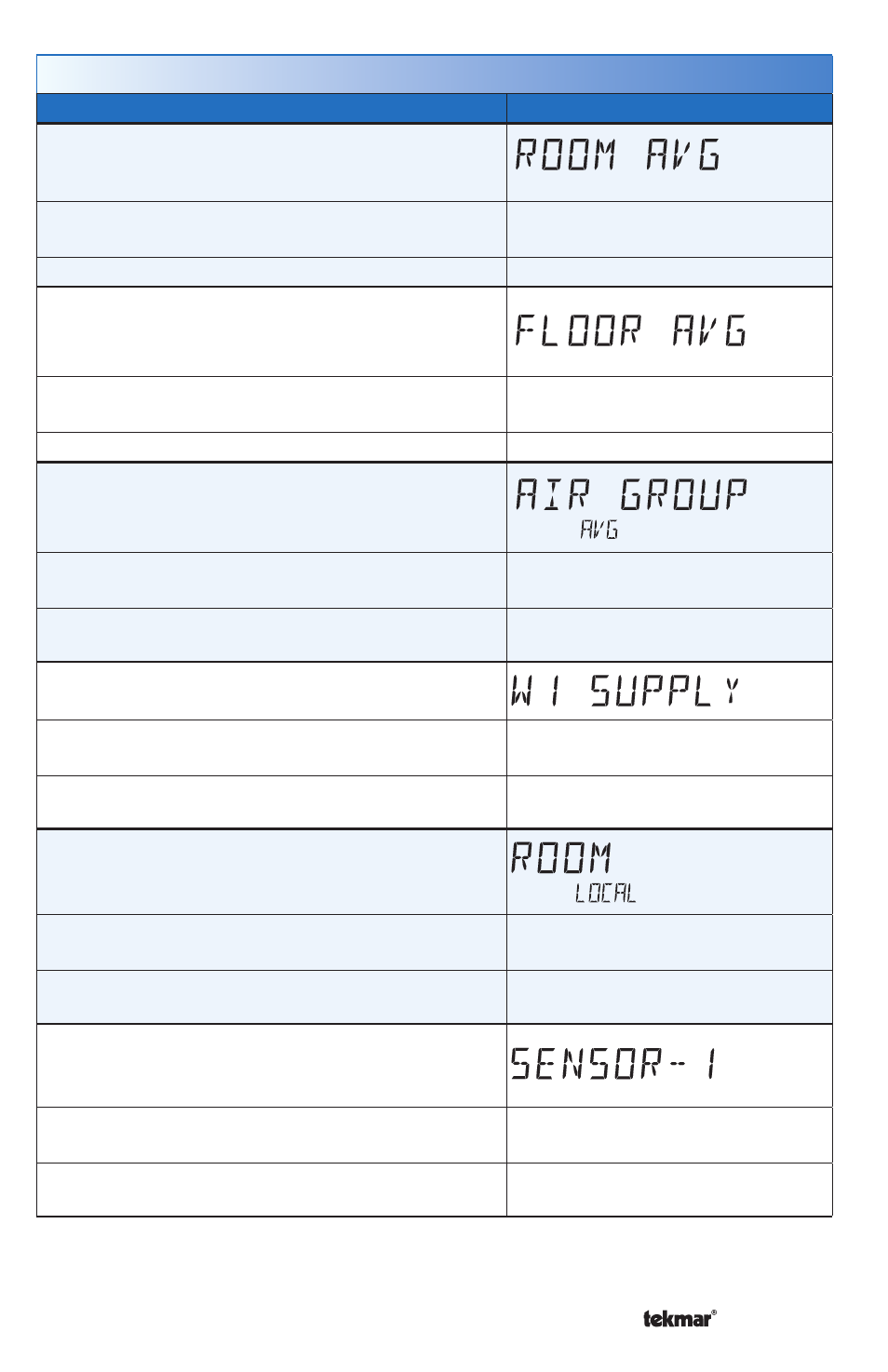

Setting Display
ROOM AVERAGE
Current room temperature. Displays the average if
there are multiple room sensors.
Access Level: Installer
Range: -58 to 212°F
(-50.0 to 100.0°C)
Conditions: Sensor 1, 2 or 3 is set to ROOM. Default: Not applicable.
FLOOR AVERAGE
Current floor temperature. Displays the average if
there are multiple floor sensors.
Access Level: Installer
Range: -58 to 212°F
(-50.0 to 100.0°C)
Conditions: Sensor 1, 2 or 3 is set to FLOR. Default: Not applicable.
AIR GROUP AVERAGE
Average room temperature of the thermostat and all
air group member thermostats.
Access Level: Installer
Range: -58 to 212°F
(-50.0 to 100.0°C)
Conditions: Setup menu setting Air Group Master
must be set to 1 through 16.
Default: Not applicable.
W1 SUPPLY
First stage heating supply water temperature.
Access Level: Installer
Range: -22 to 266°F
(-30.0 to 130.0°C)
Conditions: Setup menu setting W1 TERM set to
HRF1, HRF2.
Default: Not applicable.
ROOM LOCAL
The built-in room sensor temperature measurement.
Access Level: Installer
Range: -58 to 212°F
(-50.0 to 100.0°C)
Conditions: Setup menu setting Room Sensor is
set to ON.
Default: Not applicable.
SENSOR 1
The temperature measurement from the sensor 1
input wiring terminals.
Access Level: Installer
Range: -22 to 266°F
(-30.0 to 130.0°C)
Conditions: Setup menu setting Sensor 1 is set to
ROOM, FLOR, or DUCT.
Default: Not applicable.
