Sensor wiring, Front low voltage wiring diagram, Mounting the outdoor sensor 070 – tekmar 400 House Control Installation User Manual

Page 7

background image

© 2013

400_D - 09/13

7 of 32

R

C

L

N

Expansion

tN4 Boil

Ct

N

4

Modulating

Boiler

—+

2
1

Menu

House Control 400

Item

+

Com

Boil

Out

DHW

Vlv

C

Vlv

C

Vlv

C

Zone 3

Zone 1

Zone 2

Zone 4

Vlv

C

Com

Zone 1

Zone 2

Zone 3

Zone 4

tN2 tN2 tN2 tN2 tN2 tN2 tN2 tN2

Sensors - No P

ow

er

Call

Call

tN4

C

Mod dc/mA

Boil Exp.

Se
tpoint

DHW

R

C

Input Power

H8005B

Made in Canada

Use at least 167°F

(75°C) conductors

Stag

e 2

Stage 1

Zone Valves

24 V (ac) Transformer 009

DHW Call

from DHW

Tank Aquastat

(optional)

Setpoint Call

Outdoor

Sensor

070

Boiler Supply

Sensor 082

DHW Tank

Sensor 082

One or Two Stage

Boiler T-T

tekmarNet

®

2 Thermostats

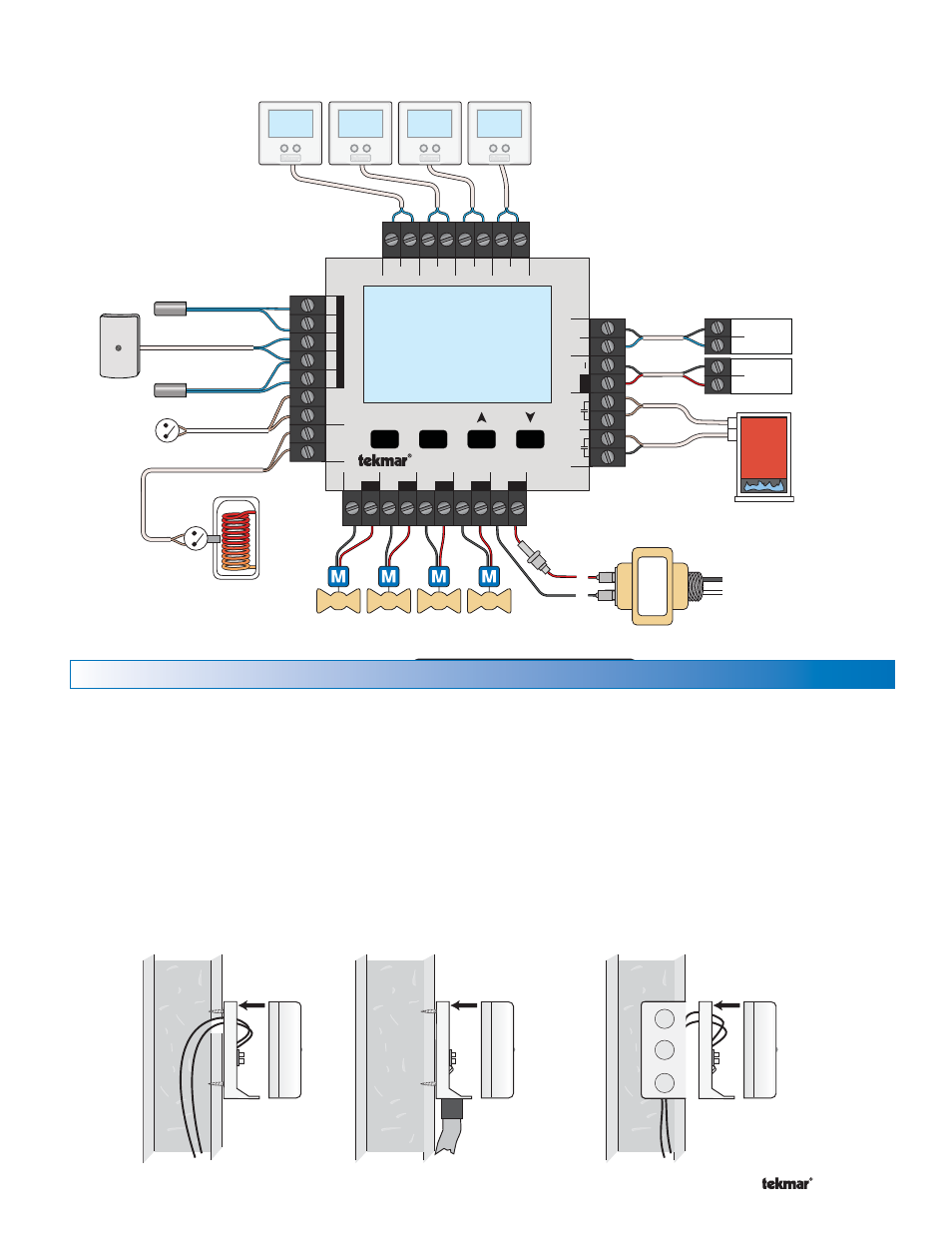

Front Low Voltage Wiring Diagram -------------------------------------------------------------------

-------------------------------------------------------------------

Sensor Wiring

The temperature sensor (thermistor) is built into the 070
enclosure.

Remove the screw and pull the front cover off the
sensor enclosure.
The 070 can either be mounted directly onto a wall or
a 2” x 4” electrical box. When the 070 is wall mounted,
the wiring should enter through the back or bottom of
the enclosure. Do not mount the 070 with the conduit
knockout facing upwards as rain could enter the enclo-
sure and damage the sensor.

In order to prevent heat transmitted through the wall
from affecting the sensor reading, it may be necessary
to install an insulating barrier behind the enclosure.
The 070 should be mounted on a wall which best rep-
resents the heat load on the building (a northern wall
for most buildings and a southern facing wall for build-
ings with large south facing glass areas). The 070
should not be exposed to heat sources such as venti-
lation or window openings.
The 070 should be installed at an elevation above the
ground that will prevent accidental damage or tampering.

Mounting the Outdoor Sensor 070 --------------------------------------------------------------------

--------------------------------------------------------------------

Sensor with bottom
entry wiring

Sensor with rear
entry wiring

Sensor mounted
onto 2" x 4"
electrical box

tekmarNet

®

4

Expansion to

Wiring Centers,

Timers, or

User Switch
