Calls
CALLS
Displays any call for heat the control is
receiving.
Pumps
PUMPS
Displays any pump currently operating.
Zones
1 2 3 4
ZONES
Displays if an on-board zone is operating.
WARNING
Displays if an error exists on the system.
Saving
ENERGY SAVING INDICATOR
Displays when the system is saving energy.
See Energy Saving Features section.
WWSD
WWSD
Displays when the system is in Warm
Weather Shut Down.
°F°C
minhr
sec%
°F, °C, %, HOURS, MINUTES, SECOND
Units of measurement for current number.
UNOCCUPIED
Indicates that a User Switch or Timer has
put the system into UnOccupied.
BOILER
Indicates that the boiler should be
heating.
MAX MIN
MIN / MAX
Displays when an operating temperature
reaches a minimum or maximum value.

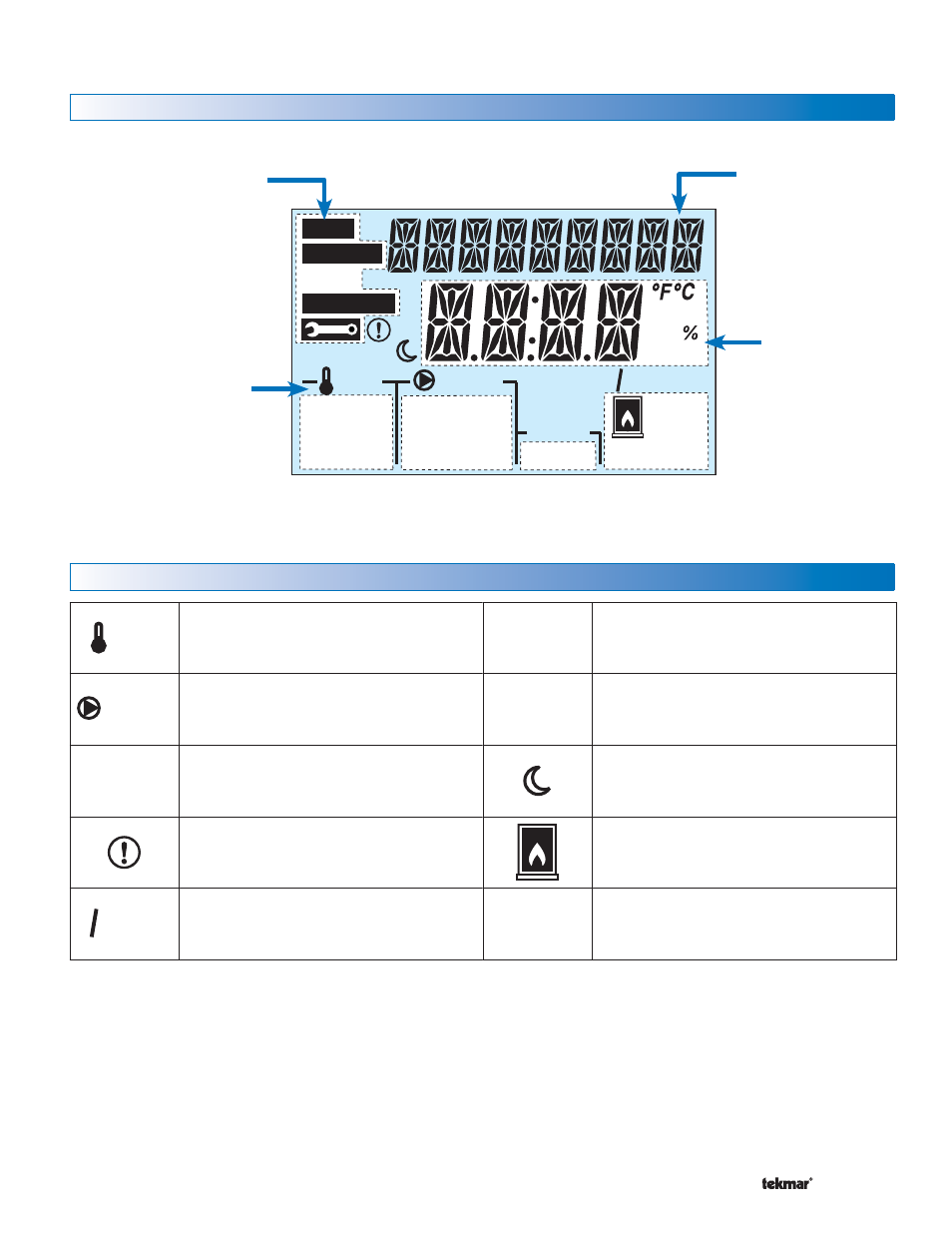

Symbols
Display
MONITOR
VIEW
ADJUST
MAX MIN
Boil Exp
DHW Setp
Boil System
Zones
DHW Var 1 2 3 4 1 2
AM
min
sec
hr
PM
Calls Pumps WWSD Saving
Item Field
Displays the name
of the selected item
Number Field
Displays the
current value of
the selected item
Status Fields
Displays the current
status of the control’s
inputs, outputs and
operation. Most symbols
in the status field are
only visible when the
VIEW Menu is selected
Menu Field
Displays the
current menu
User Interface
