Sensor wiring, Front low voltage wiring diagram, Mounting the outdoor sensor 070 – tekmar 400 House Control Installation User Manual

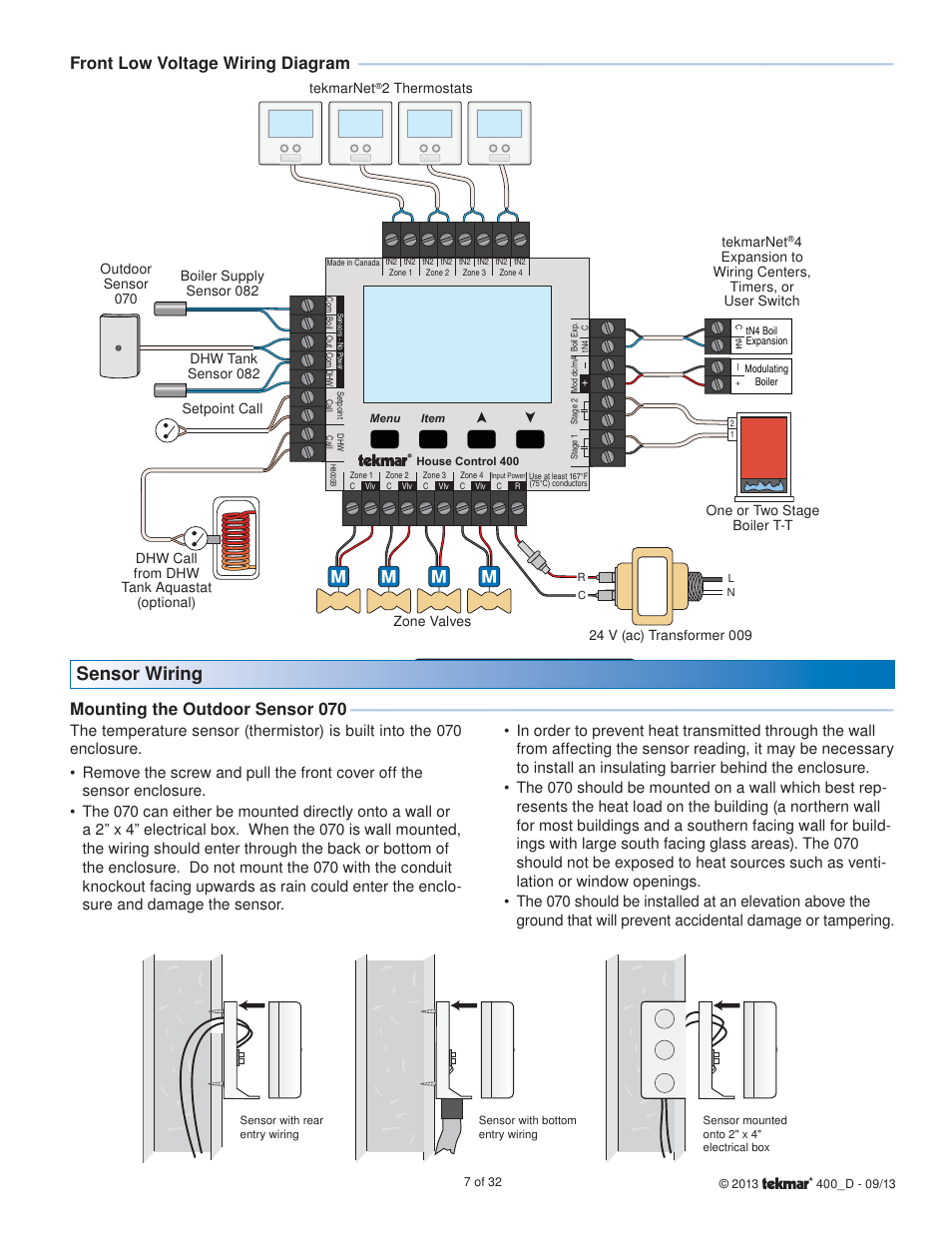

Page 7
