*Note: Depending on the settings the installer makes in the control, control menu items may not appear.
Copyright © U 369 -10/00 6 of 8
LT
D
USER
The highest outdoor air temperature recorded since this item
was last cleared.
Note: To clear the recorded information in
the specific item field, press and hold ▲ and ▼ until “CLR”
is displayed.
-67 to 140 °F
(-55 to 60 °C)
The lowest outdoor air temperature recorded since this item
was last cleared.
Note: To clear the recorded information in
the specific item field, press and hold
▲ and ▼ until “CLR”
is displayed.
-67 to 140 °F
(-55 to 60 °C)
The highest room air temperature recorded since this item
was last cleared.
Note: To clear the recorded information in
the specific item field, press and hold ▲ and ▼ until “CLR”
is displayed.
20 to 120
°F
(-7 to 49
°C)
The lowest room air temperature recorded since this item was
last cleared.
Note: To clear the recorded information in the
specific item field, press and hold ▲ and ▼ until “CLR”
is displayed.
20 to 120 °F
(-7 to 49 °C)
Range Item
062 063

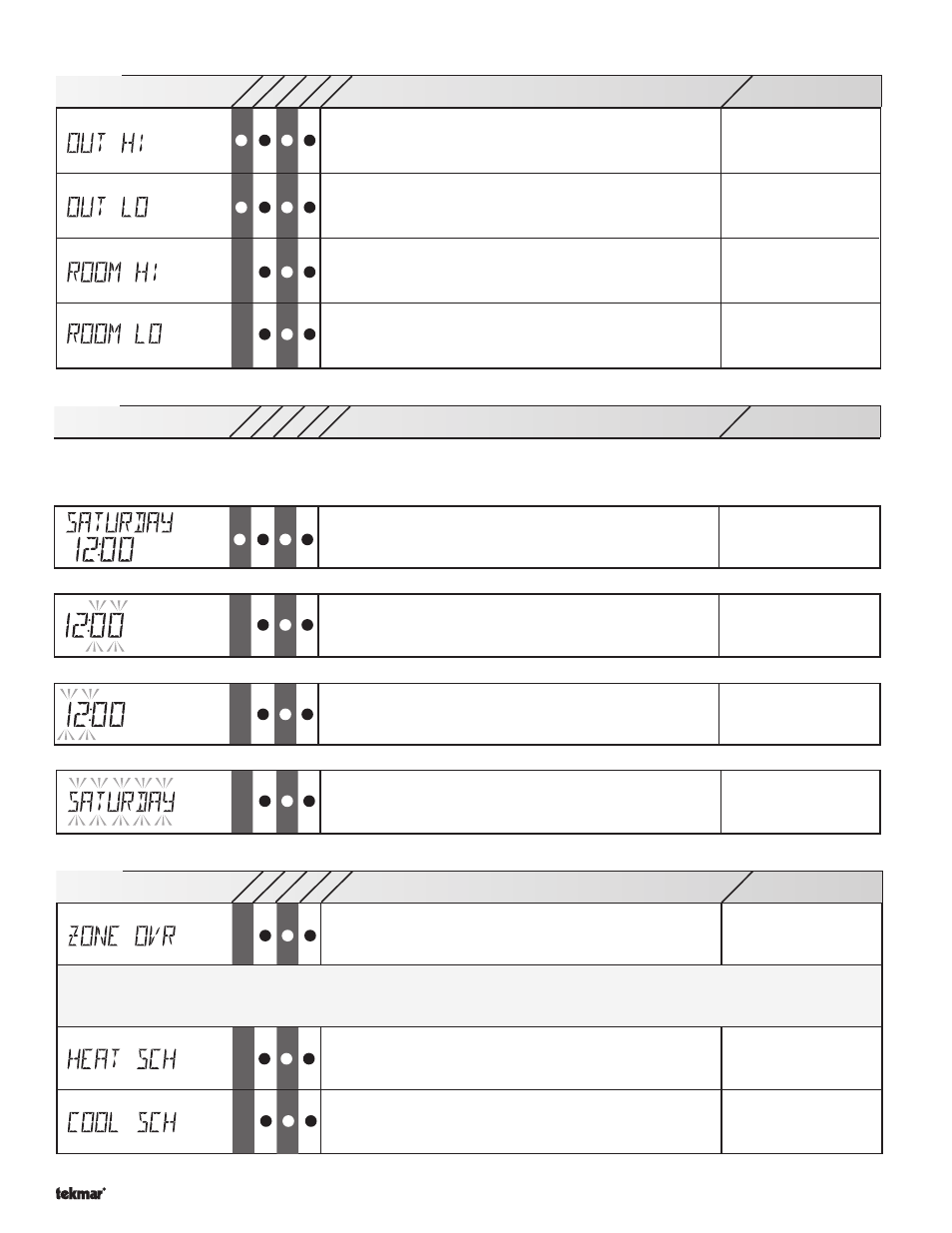

369 RTU Monitor Menu
Press and release the Item button to select minutes. Use the
▲ and ▼ buttons to set the minutes.
Press and release the Item button to select the day of the week. Use the
▲ and ▼ buttons to set the day.
369 RTU Time Menu Range Item
LT
D
USER062 063
The 369 has an internal clock used for setback purposes. In order to set the clock, the Setback / None DIP switch must be in the
Setback position.
Press and release the Menu button to select the Time Menu.
Display time of day and the day of the week.
Press and release the Item button to select hours. Use the ▲ and ▼ buttons to set the hour.
:00 to :59 Real time clock minutes.
12: AM to 11: PM or
00: to 23:
Real time clock hours.
SATURDAY, . . . ,
FRIDAY
Day of the week.
AM
AM
369 RTU Schd (Schedule) Menu (1 of 2) Item
062 063 LT
D
USER
The type of setback override that is in effect for this zone’s
schedule.
Note: NONE, TMPY Occ Ovr and PERM UnOcc
Ovr is available in the LTD access level.
NONE, TMPY Occ Ovr,
PERM Occ Ovr, TMPY
UnOcc Ovr, PERM
UnOcc Ovr, AWAY Ovr
None – No override. TMPY Occ – Overrides to Occupied setting for 3 hours. PERM Occ – Overrides to Occupied setting until new
override is selected.
TMPY UnOcc – Overrides to UnOccupied for 3 hours. PERM UnOcc – Overrides to UnOccupied setting until
new override is selected. AWAY – Heating setpoint to a maximum of 62 °F (17°C), ignores slab minimum setting and existing schedule.
The schedule that is to be used for the cooling system. NONE, ZONE, CTRL
The schedule this zone uses for heating. NONE, ZONE, CTRL
Range
