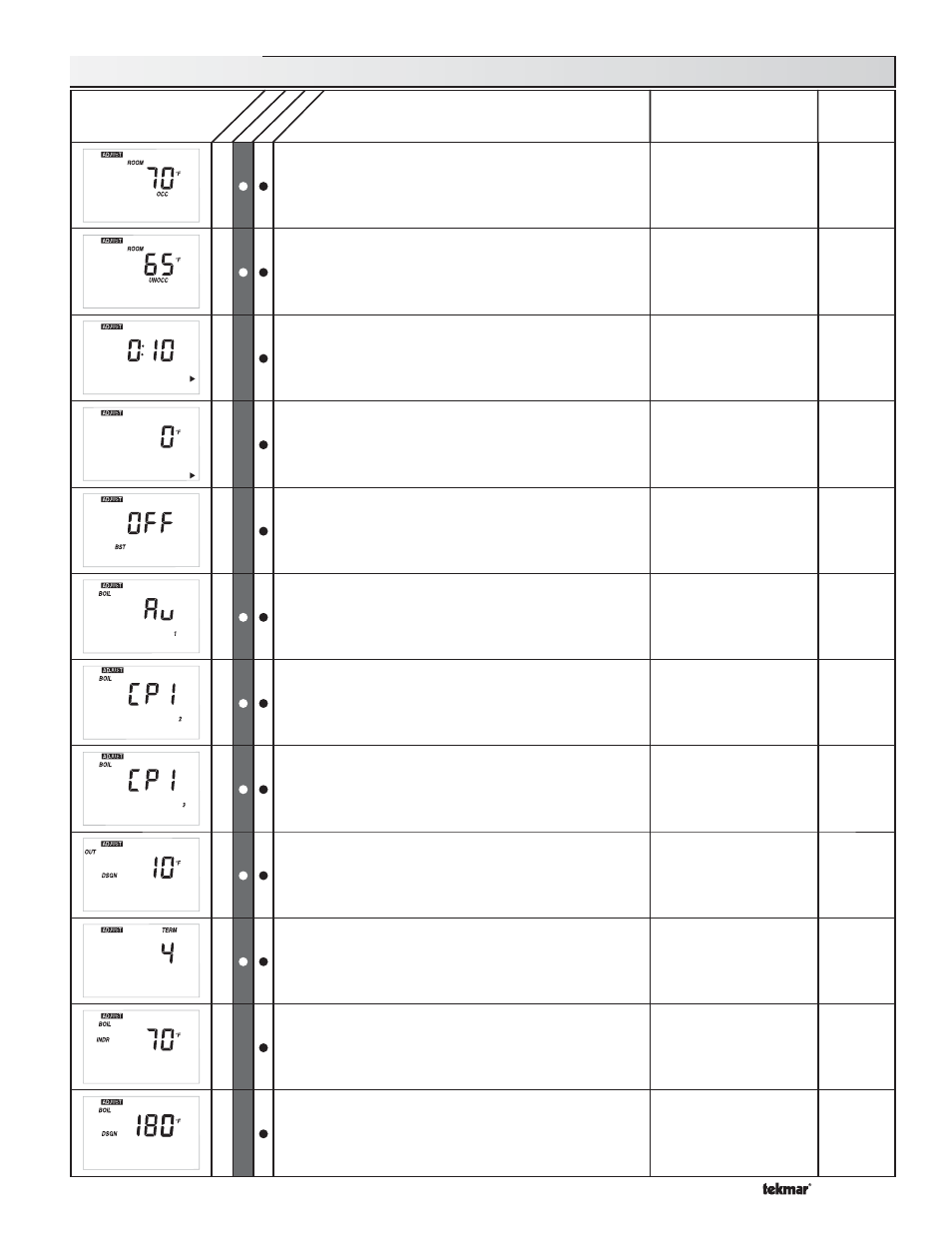

Adjust Menu (1 of 5)
C
Room Occupied The desired room air temperature
during the occupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
C
Room Unoccupied The desired room air temperature
during the UnOccupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
35 to 100°F
(2 to 38°C)
Default = 65°F (18°C)
F
External Input Signal Selects the range of the external
input signal.
This item is only available when the External Input / Stand
Alone DIP switch to External Input.
0:10, 2:10
Default = 0:10
F
Offset Sets the temperature offset used in calculat-
ing the boiler target temperature with an external input
signal.
This item is only available when the External Input / Stand
Alone DIP switch is set to External Input.
-10 to 10°F
(-6 to 6°C)
Default = 0°F (0°C)
C
Boost The amount of morning boost when changing
from the UnOccupied to the Occupied period.
This item is only available when the External Input / Stand
Alone DIP switch is set to Stand Alone.
OFF, 0:20 to 8:00 hr
(5 minute increment)
Default = OFF
B Boiler 1 Selects whether or not boiler 1 is operational.
Au (Auto), OFF
Default = Au
B
Boiler 2 Selects whether or not boiler 2 is operational.
CP1 copies the settings of Boiler 1 to Boiler 2. CP1, Au (Auto), OFF
Default = CP1
B
Boiler 3 Selects whether or not boiler 3 is operational.
This item is only available when DHW MODE is set to
OFF. CP1 copies the settings of Boiler 1 to Boiler 3.
CP1, Au (Auto), OFF
Default = CP1
C
Outdoor Design The design outdoor air temperature used
in the heat loss calculations for the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
-60 to 45°F
(-51 to 7°C)
Default = 10°F (-12°C)
C
Terminal Unit The type of terminal units that are being
used in the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone. 1 (HRF1), 2 (HRF2),
3 (COIL), 4 (CONV),
5 (RAD), 6 (BASE)
Default = 4
C
Boiler Indoor The design indoor air temperature used
in the heat loss calculation for the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
C
Boiler Design The design supply water temperature used
in the heat loss calculations for the heating system.
This item is only available when the External Input /
Stand Alone DIP switch is set to Stand Alone.
70 to 220°F
(21 to 104°C)
Default = 180°F (82°C)
Display Description Range
Section Installer Ad
v
Actual
Setting
