NIPROS/V26 調整と設定
ヘッドセットDL-400を装着します。
Put on the intercom headset DL-400.
2
TALLY indicator
LED
Power switch
INTERCOM
MIC
H.P
DS-460 CAMERA ADAPTER
MIN
MAX
MIN
MAX
POWER
OFF ON
+4dB
-20dB
-60dB
48V
OFF
P-MIC
METER
SELECT
HYPER LIMITER
TALLY
VU
PK
PEAK
MONITOR
SELECT
INTERCOM
AUDIO IN
MIN
MAX
ON
OFF
LIMIT LEVEL
INPUT LEVEL
AUDIO INPUT
METER
LIGHT
ON
OFF
TALK
ON
OFF
SIDE
TONE
INTERCOM volume adjustment
インターカムの調整
MONITOR
OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT.
AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
HEADSET
connector

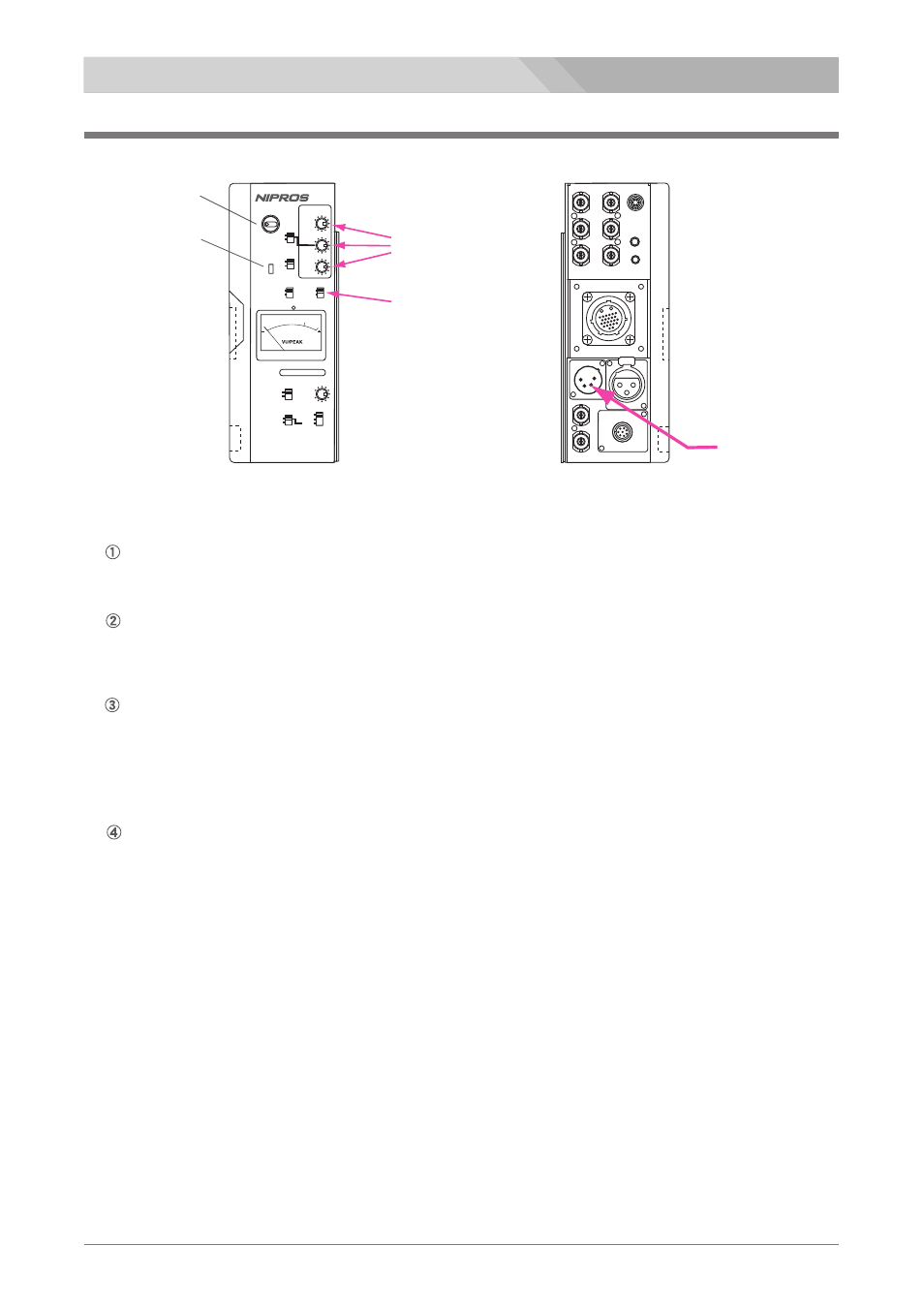

Set the MONITOR SELECT switch to the INTERCOM position.
MONITOR SELECTスイッチを INTERCOM にセットします。
DS-460 調整と設定
Adjustments and Settings for DS-460
Multi-core Studio System NIPROS/V26
Volumes
MONITOR SELECT
switch
H.P.を徐々に上げていきます。お互いの声がよく聞こえるようにヘッドセットのH.P(ヘッドホン), および MIC(マイク)の
ボリュームを調整します。
While listening to your own voice and the other operators voice, turn up the H.P and MIC
volumes gradually so that both the voices can be heard clearly.
自分の声が適当に聞こえるようにSIDE TONEで調整します。
Adjust the SIDE TONE volume to hear your own voice properly.
