28
HD/Y
HD/B-Y
HD/R-Y
CMP IN
CMP OUT
TALLY IN
MONI IF
DC 12V IN
MONITOR
OUT
(6-pin)
RET OUT
(BNC)
CMP IN
composite
video signal
DC power,and
TALLY signal
COLOR INPUT RGB MARKER
MONO
16:9
4:3
PEAKING
CAMERA AUDIO OUT EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT VIDEO OUT
VIDEO IN AUX
LANC
TC OUT EXT.
AUDIO IN SDI IN OUT 1 OUT 2 OUT 1 OUT 2 SDI RET IN
TC IN RET IN
TALLY EXT LINE (4W I/O)
IN OUT
Y Pb Pr
AC IN
composite
video signal
RET IN
(BNC)
MONI IF
MONITOR OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT.
AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
Multi-core Studio System NIPROS/V26
1
2
リターンコンポジットビデオ信号/
LVM-89Wの接続

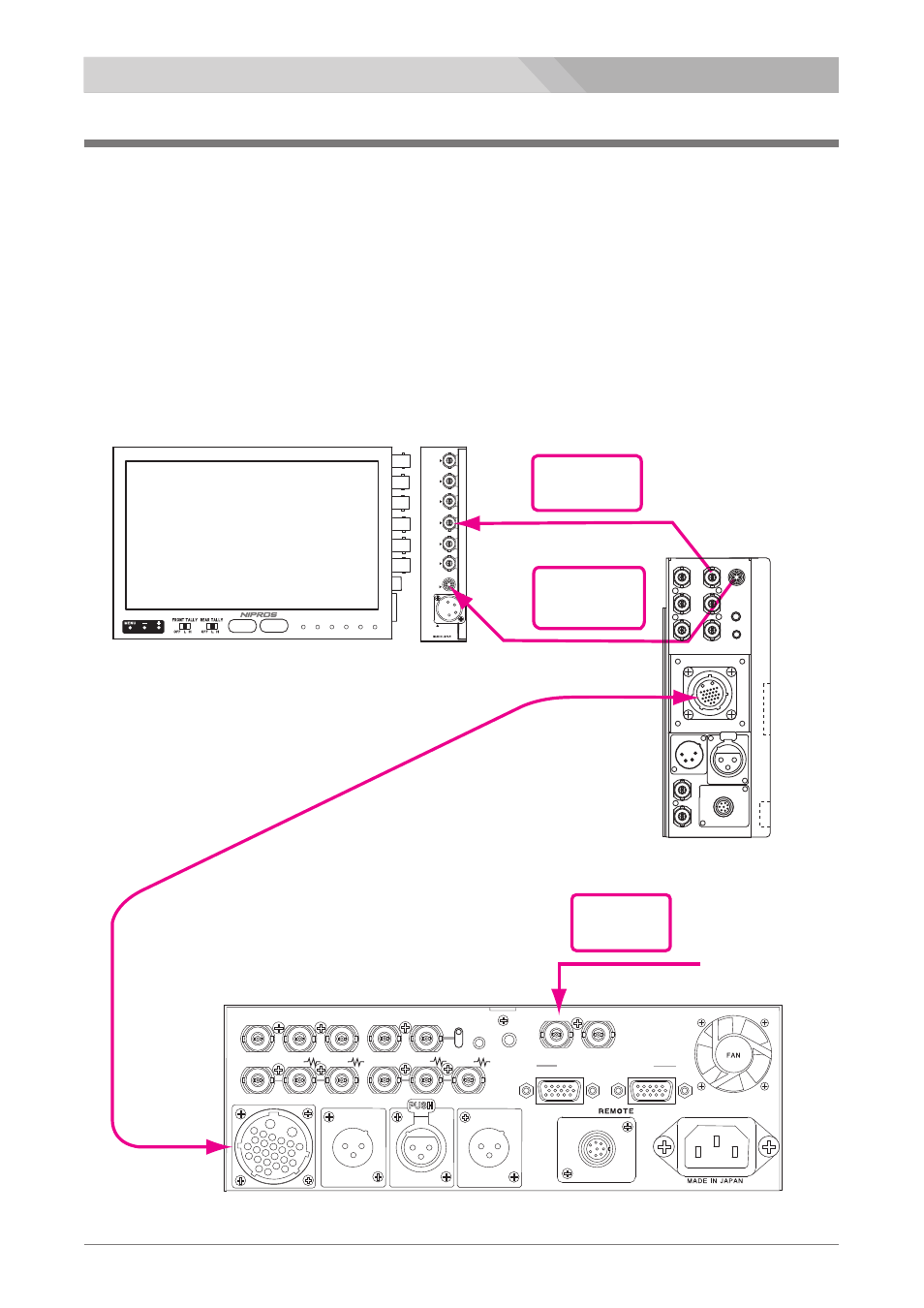

Return composite video signal connection with LVM-89W
DS-560
In case of using the supplied monitor LVM-89W to display the retun signal :
Connect the RET OUT connector of the camera adaptor DS-460 and the CMP IN (composite signal input)
connector of the monitor LVM-89W with a BNC cable.
To supply the DC 12V power, connect the MONITOR OUT connector of camera adaptor and the
MONITOR IF connector of the monitor with the supplied 6-pin cable (VC-450).
リターン画 ( リターンコンポジットビデオ信号 ) を LVM-89W に映す場合は、DS-460 の RET OUT と VM-89W の CMP IN
とを BNC ケーブルで接続します。
電源は、LVM-89W の MONITOR IF コネクタへ DS-460 の MONITOR OUT コネクタから 6 ピンケーブルで接続します。
6-pin cable (VC-450)
BNC cable
DS-460
LVM-89W
from
switcher,
etc.
26-pin cable
