32
オーディオ信号の接続

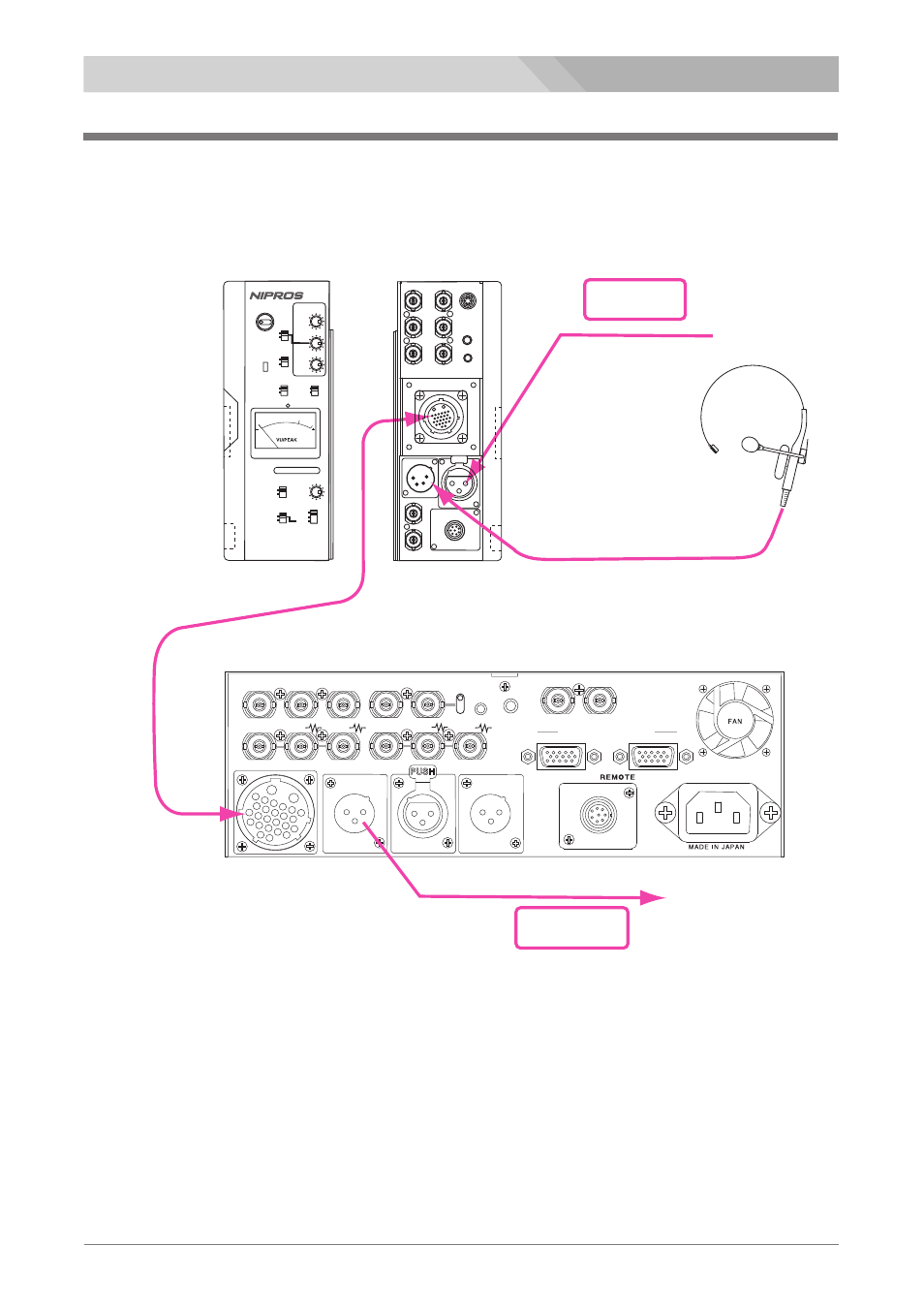

AUDIO signal connection
オーディオ 信号を入力する場合は、AUDIO IN コネクタ ( キャノン 3 ピン）へ接続します。
In case of the audio signal input :
Connect the audio output signal from a camcorder to the AUDIO IN connector with a XLR 3-pin cable.
1
NIPROS/V26 接続方法
CAMERA AUDIO OUT EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT VIDEO OUT
VIDEO IN
AUX
LANC
TC OUT EXT.
AUDIO IN SDI IN OUT 1 OUT 2 OUT 1 OUT 2 SDI RET IN
TC IN RET IN
TALLY EXT LINE (4W I/O)
IN OUT
Y Pb Pr
AC IN
DS-560
audio signal
MONITOR
OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT.
AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
INTERCOM
MIC
H.P
DS-460 CAMERA ADAPTER
MIN
MAX
MIN
MAX
POWER
OFF ON
+4dB
-20dB
-60dB
48V
OFF
P-MIC
METER
SELECT
HYPER LIMITER
TALLY
VU
PK
PEAK
MONITOR
SELECT
INTERCOM
AUDIO IN
MIN
MAX
ON
OFF
LIMIT LEVEL
INPUT LEVEL
AUDIO INPUT
METER
LIGHT
ON
OFF
TALK
ON
OFF
SIDE
TONE
DS-460
Multi-core Studio System NIPROS/V26
オーディオ信号の出力は、AUDIO OUT コネクタからキャノン 3 ピンケーブルでスイッチャー、 VTR、 オーディオミキサー
等へ接続します。
Connect the AUDIO OUT connector to a switcher, a VTR, an audio mixer, etc. with a XLR 3-pin cable. 2
audio signal
to
switcher,
VTR,
audio mixer,
etc.
(XLR 3-pin)
AUDIO OUT
(XLR 3-pin cable)
from
camcorder
DL-400
