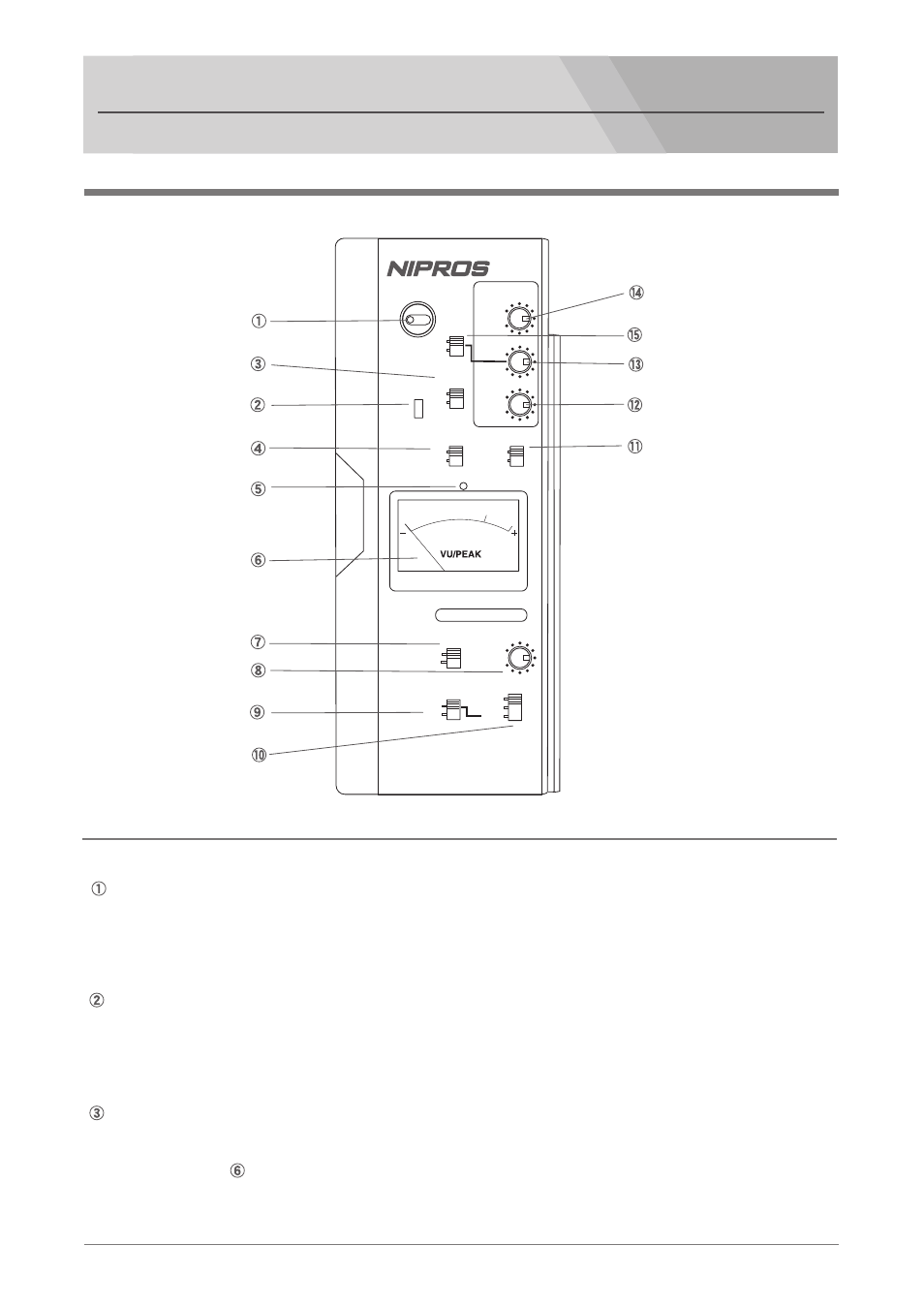

Names and Functions of Parts
4
Camera Adapter ES−500
メインパネル
Main panel
POWER switch
電源をON/OFFするスイッチです。
Turns the power on and off.
ベースステーションDS-560からのタリー信号を受けて点灯します。
TALLY indicator
Lights up when receiving the tally signal from the Base Station ES-600.
INTERCOM
MIC
H.P
(S-0
CAMERA ADAPTER
MIN
MAX
MIN
MAX
POWER
OFF
ON
+4dB
-20dB
-60dB
48V
OFF
P-MIC
METER
SELECT
HYPER LIMITER
TALLY
VU
PK
PEAK
MONITOR
SELECT
INTERCOM
AUDIO IN
MIN
MAX
ON
OFF
LIMIT
LEVEL
INPUT LEVEL
AUDIO INPUT
METER
LIGHT
ON
OFF
TALK
ON
OFF
SIDE
TONE
VU/PEAKメータ( )の照明を ON/OFF します。
METER LIGHT switch
Turns the light of the VU/PEAK meter on and off.
