33
インターカムヘッドセットの接続
INTERCOM HEADSET connection
NIPROS/V26 接続方法
MONITOR
OUT
TC OUT
Y IN
H
S
U
P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT.
AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE
▲
▲HEADSET
AUDIO IN
▲
VIDEO IN
Multi-core Studio System NIPROS/V26

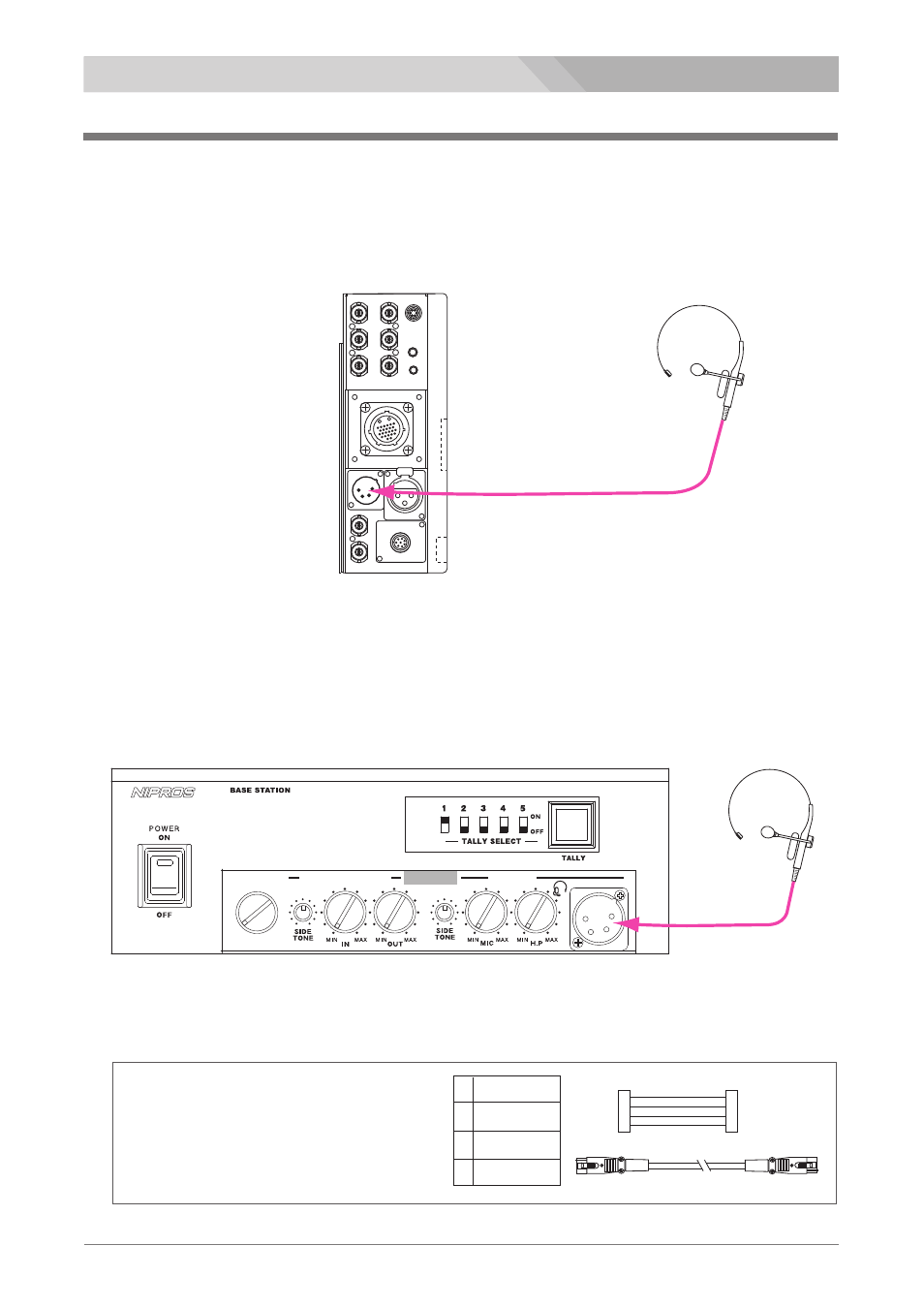

付属のヘッドセット DL-400 を INTERCOM HEADSET コネクタ ( キャノン 4 ピン , オス ) へ接続します。
2
DS-560 :
Connect the supplied headset DL-400 to the INTERCOM HEADSET connector (XLR 4-pin, male) on the
front panel.
25
50
75
100
EXT LINE (4W I/O)
INTERCOM
HEADSET
DS-560
CABLE
DS-460
DS-560
DS-460 :
Connect the supplied headset DL-400 to the INTERCOM HEADSET connector(XLR 4-pin, male) on the
connector panel.
1
付属のヘッドセット DL-400 を INTERCOM HEADSET コネクタ ( キャノン 4 ピン , オス ) へ接続します。
キャノン4P オスコネクタのヘッドセットを使用される場合
は、キャノン4P メス-メスのケーブルをご用意下さい。
1
2
3
4
MIC(G)
MIC(H)
H.PHONE(G)
H.PHONE(H)
1
2
3
4
1
2
3
4
In case using a headset with the XLR 4-pin
male connector, prepare the cable with the
XLR 4-pin female connectors.
DL-400
DL-400
