Nipros ES-500 Operating Instruction - Manual (Page 38)

38
DC電源の接続
POWER supply connection
カムコーダーへ、DC 12V 電源は V シューバッテリーアダプターから供給されています。
NIPROS/V26 接続方法
to
LVM-89W
DC 12V
to
camcorder
(26-pin cable)
(26-pin cable)
MONITOR
OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT. AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
MONITOR
OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT.
AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
V-shoe battery adaptor
MONITOR
OUT
(6-pin)

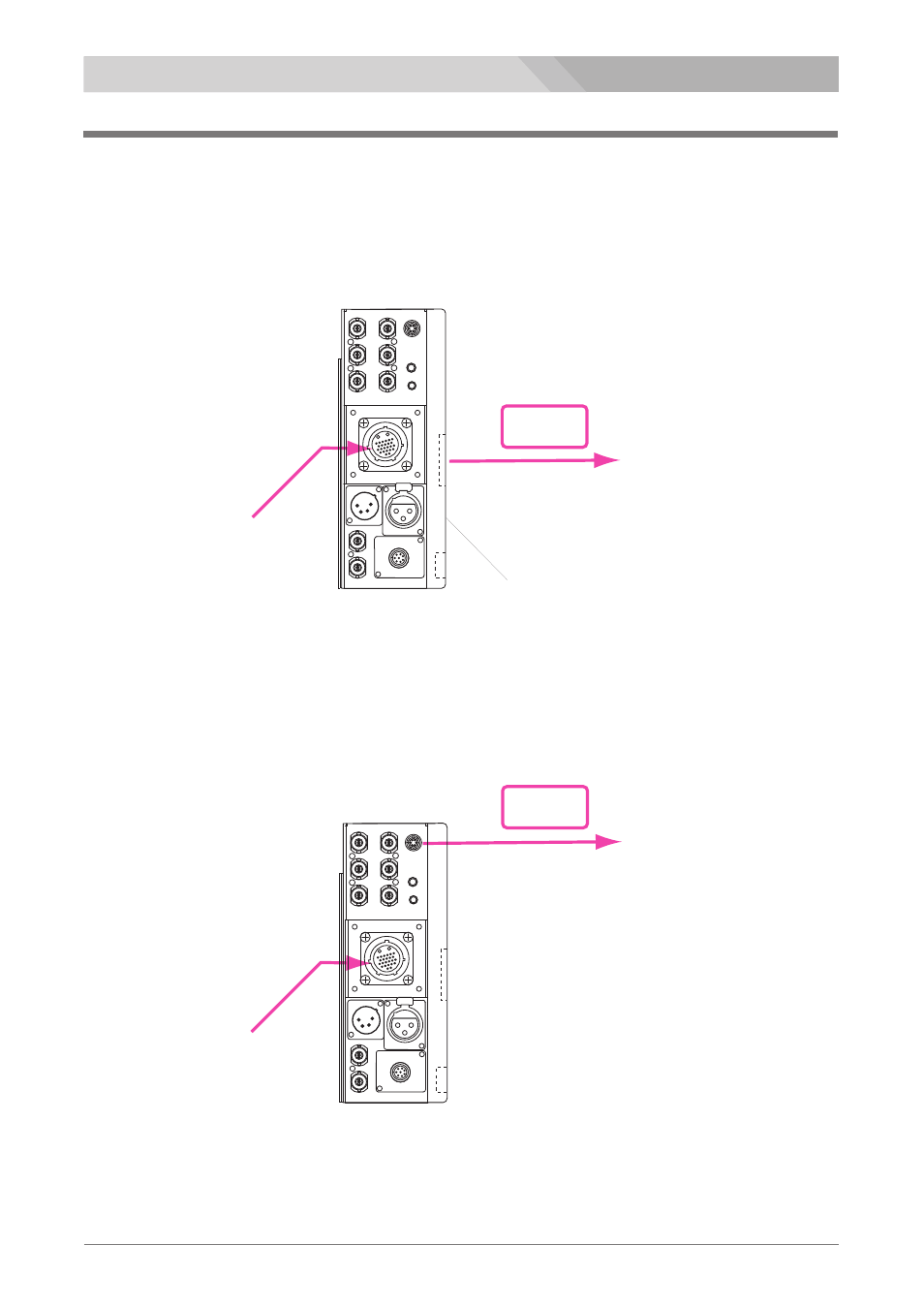

Multi-core Studio System NIPROS/V26
DC power supply to a camcorder :
The DC 12V power is supplied to the camcorder from the V-shoe battery adaptor.
2
DC 12V
DC 電源を LVM-89W へ供給する場合は、DS-460 の MONTOR OUT コネクタから付属の 6 ピンケーブル (VC-450) で
接続します。
DC power supply to the supplied monitor LVM-89W :
Connect the MONITOR OUT connector of DS-460 to the monitor LVM-89W with the supplied 6-pin cable
(VC-450).
3
DS-460
DS-460
