NIPROS/V26 接続方法
RET OUT
(BNC)
CAMERA AUDIO OUT EXT LINE (2W I/O) EXT LINE (2W I/O)
HD/SD COMPONENT OUT VIDEO OUT
VIDEO IN
AUX
LANC
TC OUT EXT.
AUDIO IN SDI IN OUT 1 OUT 2 OUT 1 OUT 2 SDI RET IN
TC IN RET IN
TALLY EXT LINE (4W I/O)
IN OUT
Y Pb Pr
AC IN
RET IN
(BNC)
to
monitor,
etc.
DS-560
DS-460
MONITOR
OUT
TC OUT
Y IN
H S U P
TALLY OUT
RET OUT
MADE IN JAPAN
AUX
Pb IN
Pr IN
EXT.
AUDIO OUT
LANC
(VIDEO OUT/TC IN)
REMOTE ▲
▲HEADSET
AUDIO IN ▲
VIDEO IN
from
switcher,
etc.

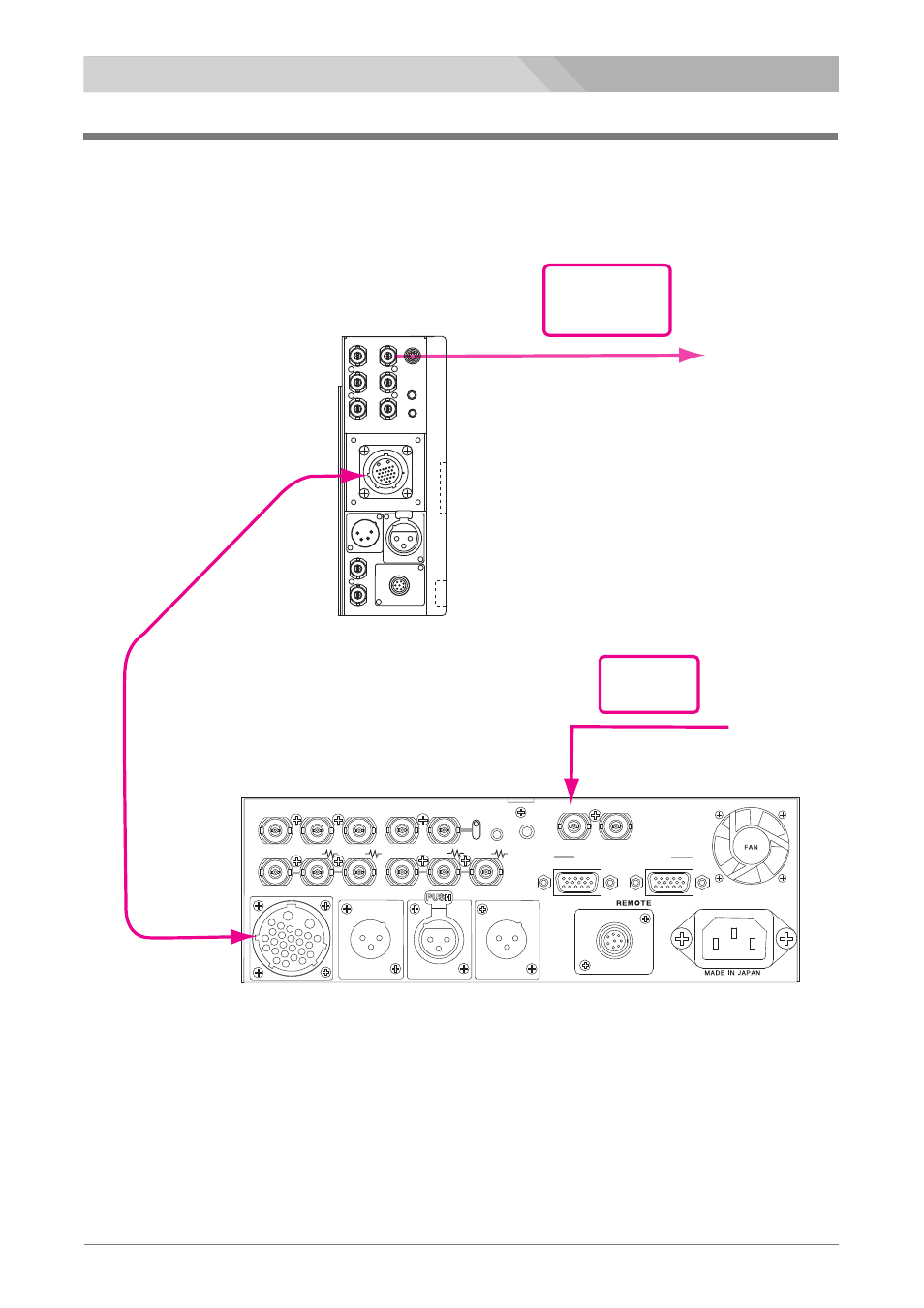

Multi-core Studio System NIPROS/V26
リターンコンポジットビデオ信号の接続
Return composite video signal connection
1
スイッチャーからのリターンコンポジット信号出力は、RET IN コネクタへ BNC ケーブルで接続します。
Connect the return composite video output signal from a switcher to the RET IN connector with a BNC cable. 2
リターンコンポジットビデオ信号の出力は、RET OUT コネクタからモニター等へ BNC ケーブルで接続します。
Connect the RET OUT connector to a monitor, etc. with a BNC cable.
return
composite video
signal
composite
video signal
