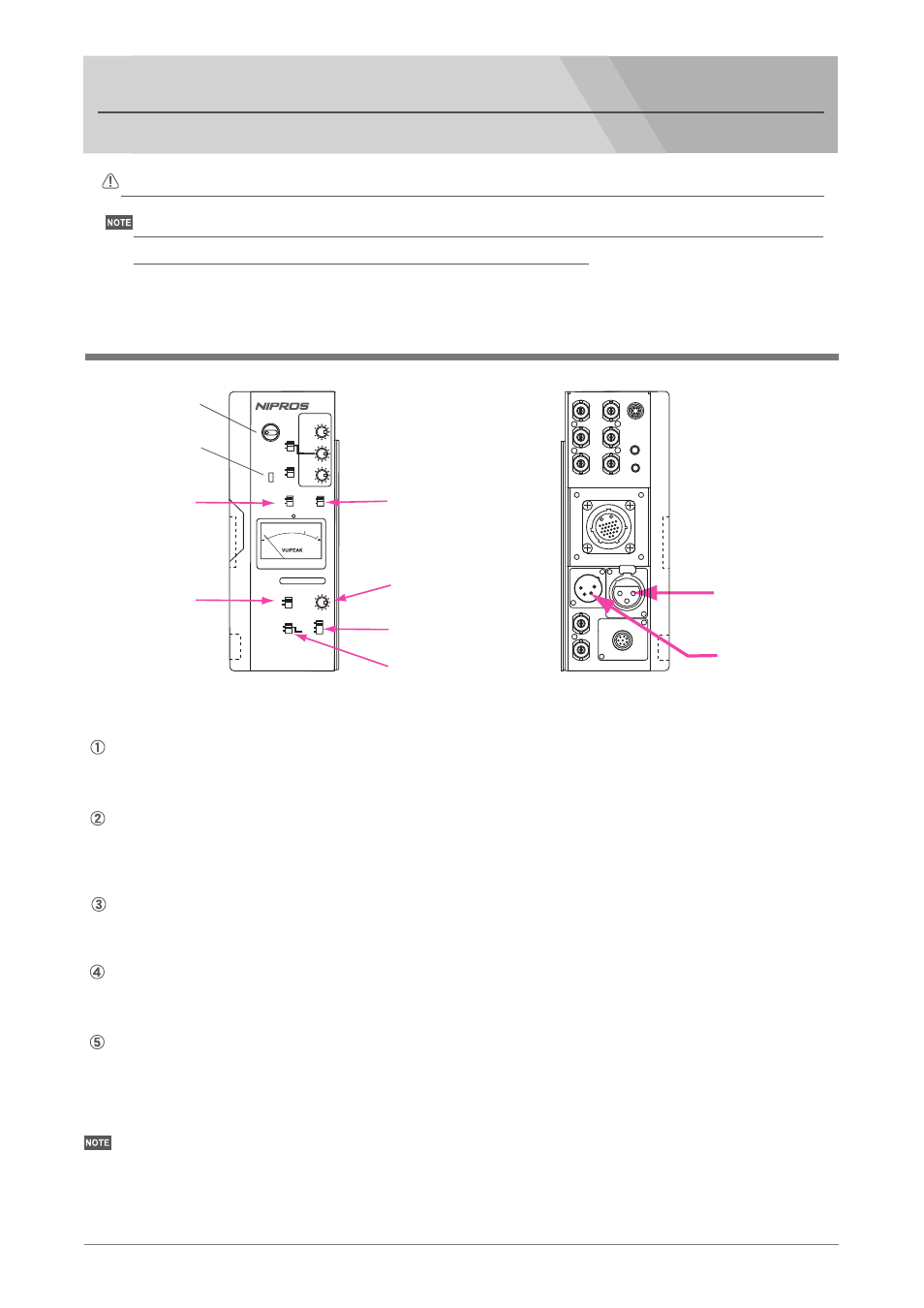

Adjustments and Settings

39

※電源スイッチをONにする前にヘッドセットのボリュームを最小の位置にして下さい。

各ボリュームを急激に上げないでください。

Turn on the power switches of ES-500, ES-600, LVM-89W and Camcorder

Make sure the volume of each unit is set to the minimum position before starting adjustment.
Never turn up the volumes suddenly to prevent hearing impairment.

オーディオ信号を接続し、ヘッドセットDL-400を装着します。

Connect the audio output signal from a camcorder to the AUDIO IN connector and put on the

supplied intercom headset DL-400.

1

TALLY indicator

LED

Power switch

INTERCOM

MIC

H.P

DS-460

CAMERA ADAPTER

MIN

MAX

MIN

MAX

POWER

OFF

ON

+4dB
-20dB
-60dB

48V
OFF

P-MIC

METER

SELECT

HYPER LIMITER

TALLY

VU
PK

PEAK

MONITOR

SELECT

INTERCOM
AUDIO IN

MIN

MAX

ON
OFF

LIMIT

LEVEL

INPUT LEVEL

AUDIO INPUT

METER

LIGHT

ON

OFF

TALK

ON

OFF

SIDE

TONE

Audio signal adjustment

Set the INPUT LEVEL select switch and P-MIC switch to the appropriate position according to

the input signal connected to the AUDIO IN connector.

Set the MONITOR SELECT switch to the AUDIO IN position to monitor the audio input signal by

the headset.

During adjustment, set the LIMIT switch to the OFF position. Accordig to the input signal, set

to the ON position to prevent the audio distortion by a sudden high level audio input.

Set the METER SELECT switch to the VU or PK(peak) position according to the input audio

source.

Adjust the audio input level by rotating the LEVEL volume so that the input level becomes to

the proper level while watching VU/PEAK meter and monitoring the sound by the headset.

オーディオ入力の調整

INPUT LEVELセレクトスイッチ、P-MIC(ファンタムマイク電源)スイッチを AUDIO INコネクタに接続された入力に

合わせてセットします。

オーディオ入力をモニターする場合は、MONITOR SELECTスイッチを AUDIO IN にセットします。

オーディオ入力を調整するときは、LIMIT(ハイパーリミッター)スイッチを OFFにセットします。調整終了後は、突発的

な過大音量の入力による歪みを防ぐために ONします。

METER SELECT(メーターセレクト)スイッチを 入力オーディオソースに合わせてVU またはPK(PEAK)にセットします。

オーディオ入力レベルを LEVELボリュームを回して調整します。VU/PEAKメーターおよびヘッドホンでモニターしながら

調整します。

audio signal

MONITOR

OUT

TC OUT

Y IN

H

S

U

P

TALLY OUT

RET OUT

MADE IN JAPAN

AUX

Pb IN

Pr IN

EXT.

AUDIO OUT

LANC

(VIDEO OUT/TC IN)

REMOTE

HEADSET

AUDIO IN

VIDEO IN

HEADSET

Adjustments and Settings for ES­500

Multi-core Studio System NIPROS/V26

INPUT LEVEL select

switch

P-MIC switch

MONITOR SELECT

switch

LIMIT switch

METER SELECT

switch

LEVEL volume
