Names and Functions of Parts
10
Base Station ES−600
フロントパネル

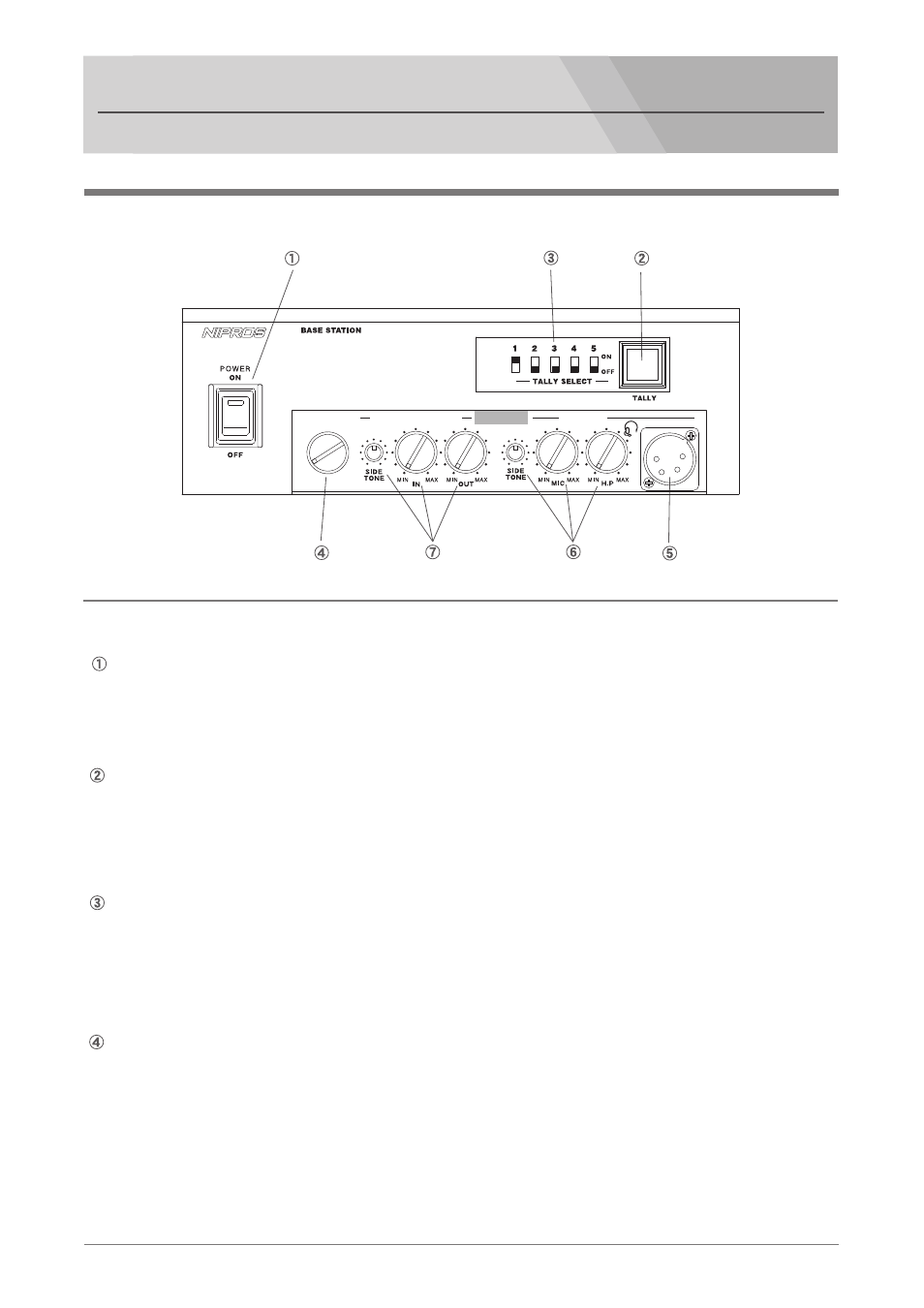

Front panel
25
50
75
100
EXT LINE (4W I/O)
INTERCOM
HEADSET
ES-600
CABLE
POWER switch and indicator
電源をON/OFFするスイッチです。電源スイッチがONになっている時に点灯します。
Turns the power on and off. The indicator lights up when the power switch is on.
リアパネルのTALLY IN コネクタに入力されるタリー信号により点灯します。
TALLY indicator
Lights up when receiving the tally signal connected to the TALLY EXT LINE (4W I/O) IN connector
on the rear panel.
タリーを点灯させるチャンネル(1 - 5 CH)のスイッチを選択して ON します。
TALLY SELECT switch
Select the TALLY channel and set the TALLY SELECT switch to ON position to light up the TALLY
indicator.
CABLE select switch
Set to the appropriate position according to the length of a 26-pin multi-cable connected
to the CAMERA connector on the rear panel.
リアパネルのCAMERA 26-ピンケーブルコネクタに接続されたケーブル長に合わせて、ケーブル切替スイッチをセットします。
