SLIDER/DOLLY TIME LAPSE CALIBRATION

MOTION CONTROL -

SIMPLE

Note:

Simple mode is a feature from the older versions of the Oracle.

The new SmartLapse™ mode superceeds it in everyway and is the

preferred method. Although if you are used to using Simple mode you

can still activate it by following these instructions.

1:

Once in

Slider/TT

mode press the MENU button until you

get to the main menu

2. Select

Motion Control

by moving the joystick

UP/DOWN

Press the MIDDLE JOYSTICK BUTTON or ENTER to confirm

3.

To toggle Simple mode, move the Joystick down to Advanced

Press and hold the 1 Button for 5 seconds

Press the MIDDLE JOYSTICK BUTTON or ENTER to confirm.

Before running your first time lapse on a slider or dolly, perform

the calibration procedure to insure proper function.

4.

Select one of the following:

Continuous

or

No Intervlmtr

Press the MIDDLE JOYSTICK BUTTON or ENTER to confirm.

NOTE:

See page 17 for descriptions of Continuous & Intervlmter

(Intervalometer)

Camera

Motion Control

<

v

Advanced

^

Simple <

Continuous

No Intervlmtr

9.

Press the 3 Button to select

Cal

(Calibration).

10.

Move the joystick up/down followed by MIDDLE JOYSTICK

BUTTON or ENTER or press the 1 BUTTON to select the

10 minute

calibration or press the 2 BUTTON to select the

30 minute

calibration followed by the MIDDLE JOYSTICK

BUTTON or ENTER to confirm.

NOTE:

You can run either a 10 minute or 30 minute calibration. The longer the

calibration time, the more accurate the results.

11.

Make sure the slider motor is positioned to your left and move

the carriage to the left side (closest to the motor) of the track

using the joystick.

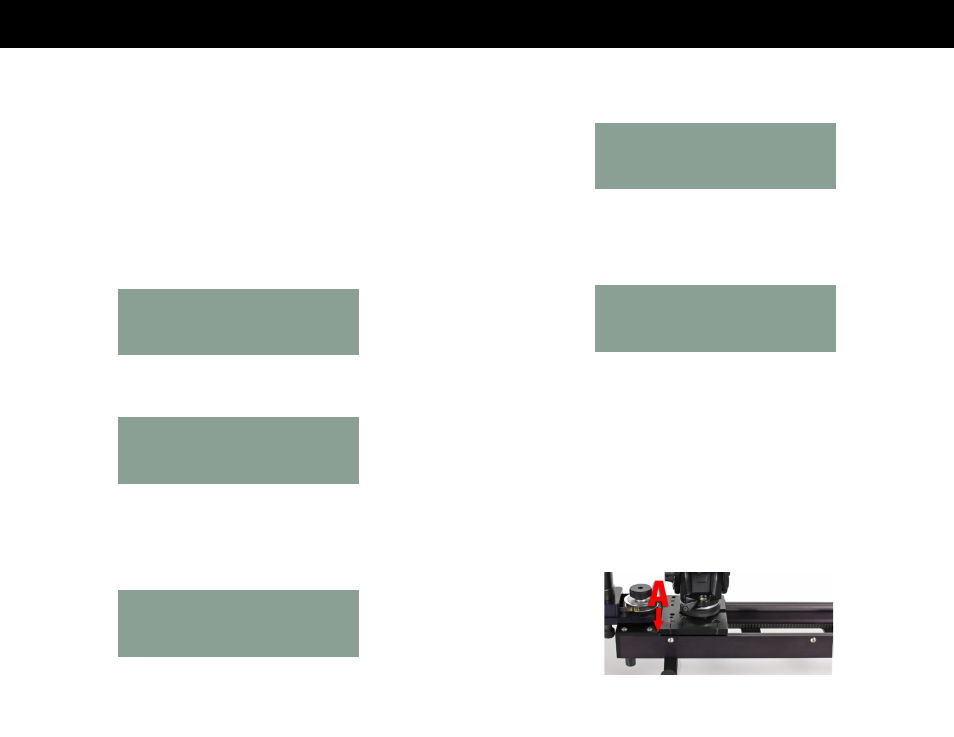

This procedure requires measuring the distance the slider moves

from start point to end point. The easiest way to do this is to move the

carriage all the way to the end of the track (point A), run the calibration,

then measure the gap between point A and point B when complete.

1:Distance

3:Cal

2:Time ENTER:Run

1:

10 Mins

2:

30 Mins

30
