REVOLUTION HEAD RECORD & PLAYBACK

MOTION CONTROL -

LIVE RECORDING

This section will cover recording and playing back real-time

camera moves on a Kessler Crane Revolution pan/tilt head.

1:

Once in

Head Unit

mode press the MENU button until you

get to the main menu

1.

Use the joystick to move the Revolution Head to your desired

start position.

2.

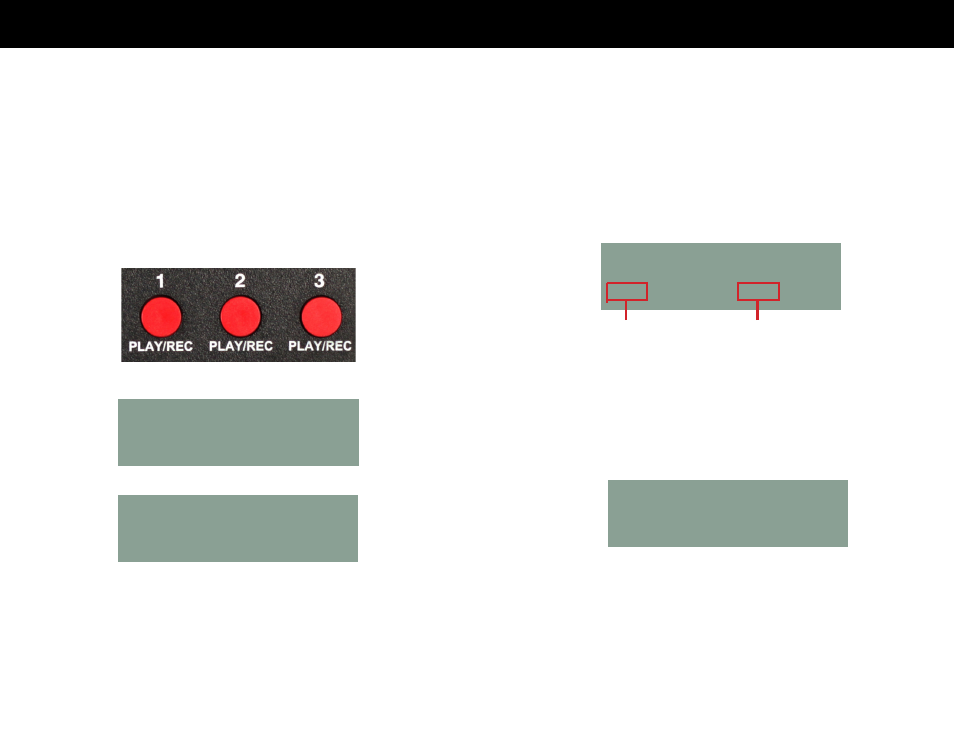

Press and hold a numbered memory bank BUTTON

(1, 2, OR 3) for 5 seconds to clear that memory bank

3.

Screen will saying

Erasing

4. Select

1: Live

with the 1 Button

Note:

Take note of where the head is positioned. Mark positions with a

wax pencil if necessary so you can return to it when prompted.

Another way to mark start position is to mount a laser pointer to your

Revolution head. Mark the point on the wall, floor, ceiling, etc. of where

the laser is pointing. When the ORACLE™ prompts you to return the

Revolution head to the start position, you can simply maneuver the

head so the laser points to the same location. This assures the head is

starting out in the same position.

Record-

1:Live

2:SmartLapse

Erasing

9.

Move the joystick LEFT/RIGHT to begin recording your camera

movement. Press the MIDDLE JOYSTICK BUTTON to begin

recording with a pause before the beginning your movement.

10.

MAX SPEED, DAMPING and DEADBAND can all be adjusted

during this time and will be recorded as will the timing

11.

All movement is recorded in real time and a seconds counter is

displayed on the screen

12.

Press the same memory bank BUTTON (1, 2, OR 3) again or

press the MIDDLE JOYSTICK BUTTON stop the recording

13.

To play back your recorded movement, press the BUTTON

(1, 2, OR 3) for the memory bank you recorded it on

14.

The screen will prompt you to return the Revolution head to

the start position marked in the

Note

on the previous page

16.

Use the joystick to move the head back to your start position

17.

Press your memory bank BUTTON (1, 2, OR 3) again to

start playback. The screen will display

Play Back

with the

amount of time remaining.

Recording

1 11

Memory Bank Seconds Counter

Please Return to

Start Position
