3 E-flite Edge 540 BP ARF Assembly Manual

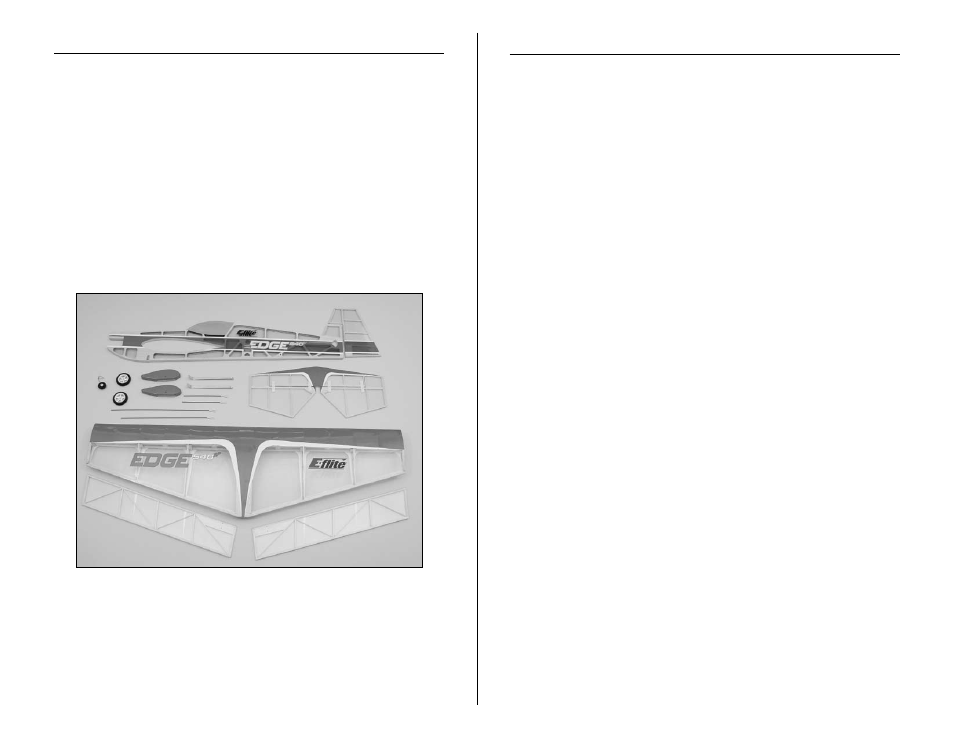

Contents of Kit/Parts Layout
Large Replacement Parts
EFL2601 Wing w/Ailerons
EFL2602 Fuselage with Rudder
EFL2603 Horizontal Tail Assembly
EFL2405 Landing Gear
Small Replacement Parts
EFL2604 Pushrod Set
EFL2605 Hardware Set
EFL2606 Wheel Set
EFL2607 Wheel Pants
EFLA213 E-flite/JR/Horizon Decals
EFLM1915 Outrunner Stick Mount
Required Radio Equipment
You will need a minimum 6-channel transmitter (for proper
mixing and dual rate capabilities), crystals, micro receiver,
and four sub-micro servos. You can choose to purchase a
complete radio system that includes all of these items or, if
you are using an existing transmitter, just purchase the other
required equipment separately. We recommend the crystal-free,
interference-free Spektrum ™ DX6 2.4GHz DSM ® 6-channel
system, which includes a micro receiver and 4 sub-micro
7.5-gram servos. If using your own transmitter, we recommend
the E-flite ® S75 Sub-Micro servos.
If you own the Spektrum DX7 radio, just add the AR6100 DSM2 ™
6-channel receiver and four of our E-flite S75 Sub-Micro servos.
Complete Radio System
SPM2460 DX6 DSM ® 6CH Park Flyer w/4-S75
Or Purchase Separately
JSP30610 6-Channel UltraLite Rx w/o Crystal, Positive Shift
JR/AIR (72MHz)
JSP30615 6-Channel UltraLite Rx w/o Crystal, Negative Shift
Fut/HRC (72MHz)
JRPXFR** FM Receiver Crystal (JR only,
not Spektrum receivers)
Or
SPM6000 AR6000 DSM 6CH parkflyer receiver (for DX6 only)
Or
SPM6100 AR6100 DSM2 6CH Rx (for DX7 only)
And
EFLRS75 7.5-Gram Sub-Micro Servo (4)
