5 E-flite Edge 540 BP ARF Assembly Manual

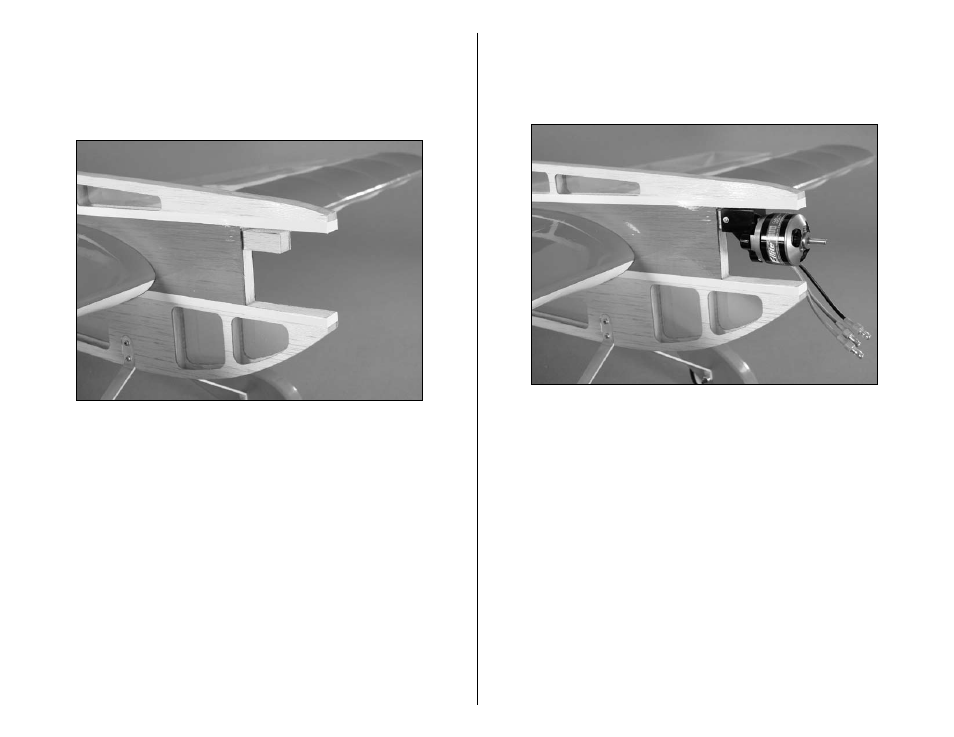

 3. Use medium CA to glue the two motor offset shims to
the sides of the motor stick. This is necessary to provide the
correct thrust angle for the motor. Make sure the thin end on
the left shim is towards the front, and the shim on the right
has the thick end of the shim towards the front.
Note: The left and right of the aircraft are as viewed
while sitting in the pilot seat. The photo above shows a
view of the right side of the fuselage.
 4. Slide the motor mount onto the motor stick. Use a drill and
1 /
16
-inch (1.5mm) drill bit to drill a pilot hole for the screw
into the motor stick. Use the 1.5mm x 10mm screw to secure
the mount to the motor stick.
Note: You can also drill an extra screw in to the opposite
side of the mount forward of the one shown to help
reduce wear on the motor stick.
