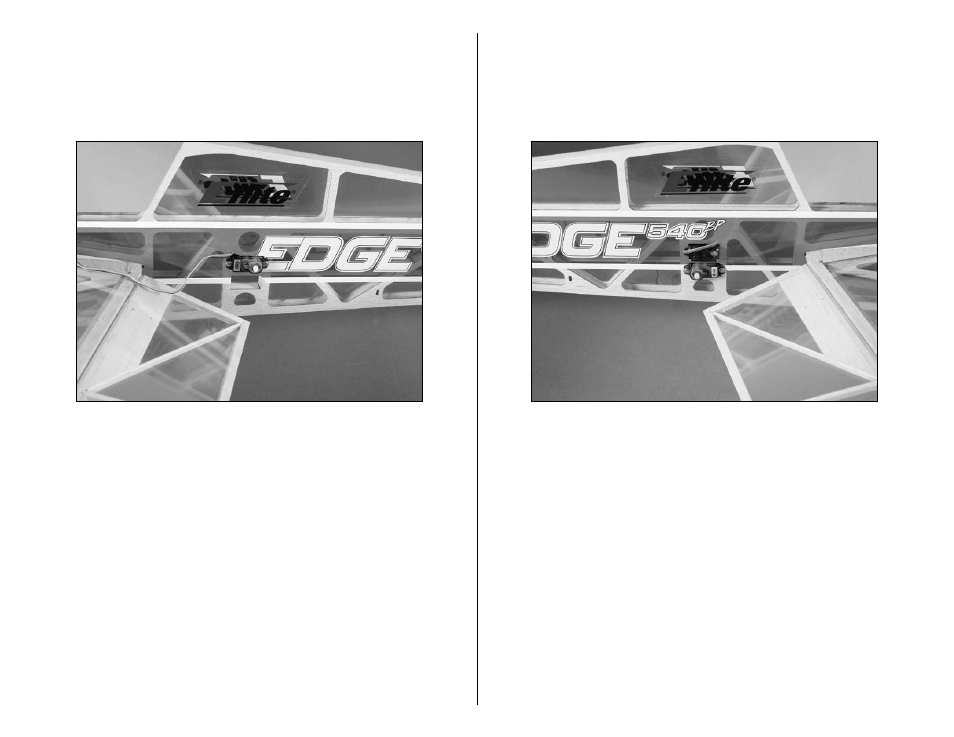

 2. The elevator servo is installed in the upper hole in the
fuselage using the hardware provided with your servo. Pre-
drill the holes for the servo mounting screws using a drill and
1 /
16
-inch (1.5mm) drill bit. The output of the servo will be on
the left side facing the rear of the plane.
Note: Notch the fuselage so you can pass the elevator
servo lead to the same side of the fuselage as the aileron
servo leads.
 3. The rudder servo is installed in the lower hole using the
hardware provided with your servo. Pre-drill the holes for the
servo mounting screws using a drill and
1 / 16
-inch (1.5mm)
drill bit. The output for the rudder servo will be opposite the
elevator servo facing the rear of the plane.
