8
Landing Gear Installation
Required Parts
Fuselage Carbon main gear
Tail skid Wheel pant (2)
1 1
/
2
" (38mm) wheel (2) 2mm x 25mm screw (2)
2mm nut (4) #4 washer (black) (2)
4-40 x 1/2" socket screw (2) 2mm washer (4)
2mm x 6mm wood screw (2)
Required Tools and Adhesives
Threadlock 1/8" (3mm) drill bit
Drill Medium CA
Hobby knife Hex wrench: 3/32"
Phillips screwdriver (small)
Note : You may consider using a larger
diameter wheel, such as 2 1/4 in, if your
flying site has rough terrain. By using a
larger wheel, you will not be able to use the
included wheel pants.

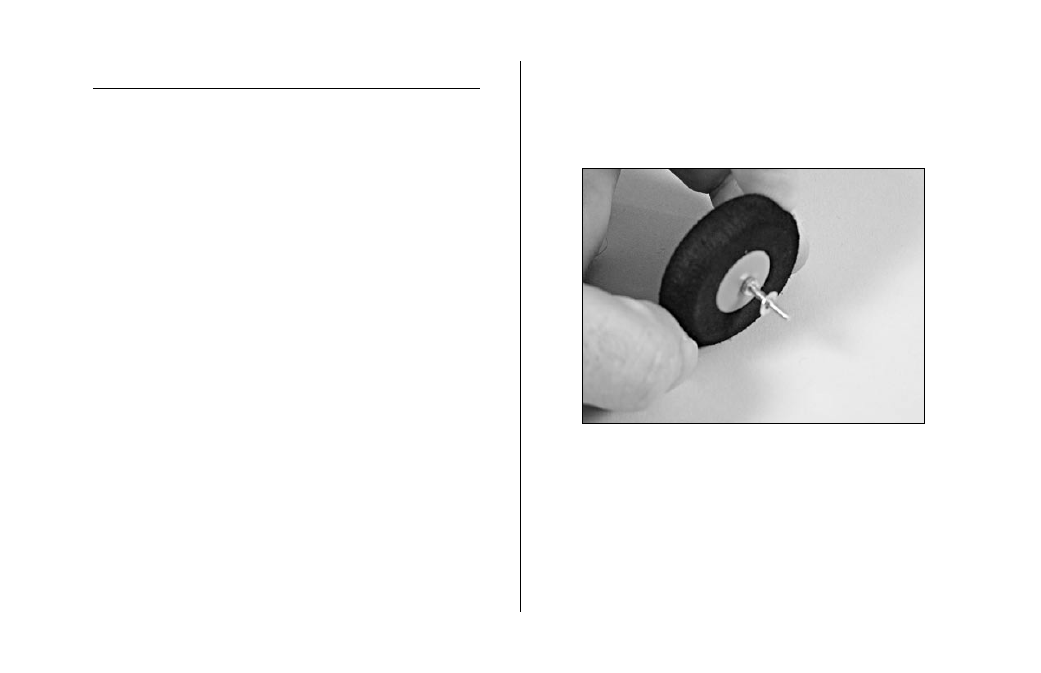

  1. Slide the 2mm x 25mm screw through one of the
wheels. Thread a 2mm nut onto the screw. Slide a
2mm washer onto the screw. This will all fit inside the
wheel pant.
