15

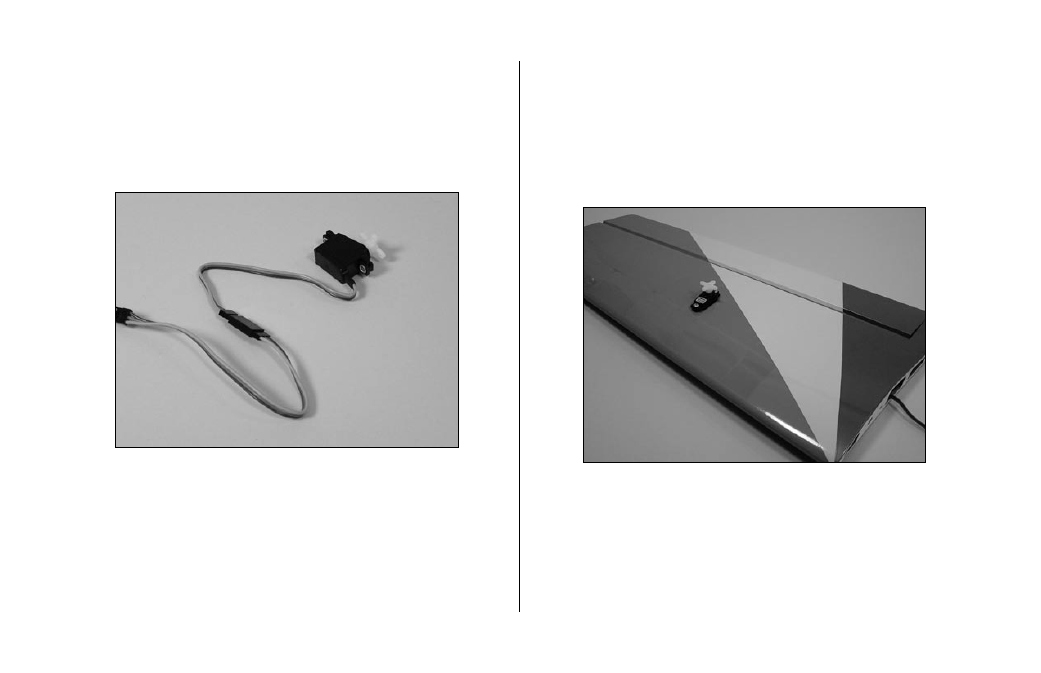

  1. Install the grommets and brass eyelets on the servo
using instructions provided with the radio system.
Attach a 6" (150mm) servo extension. Use string to
secure the servo lead and extension to prevent them
from unplugging in flight.
Note : We suggest using the Large Arms
w/Screws (JRPA212) on all JR® servos for the
Mini Edge. Replace all existing arms before
installing the servos.
  2. Place the servo in the wing. Guide the servo lead
out through the opening at the wing root.
  3. Secure the aileron servo using the screws provided
with the servo.
