E-flite Mini Edge 3D ARF - Manual (Page 28)

28
Rudder and Elevator Servos
Required Parts
Fuselage Plastic rudder horn
2mm x 4mm screw (3) Pull-pull cable
3" (75 mm) pushrod wire Brass cable keepers (4)
Micro control horn w/backplate
Micro control connector w/retainer (3)
Servos: JR 241 Sub-micro Servo (JRPS241) (2)
12" (305 mm) servo extension
Micro cable adjust connector (2)
Required Tools and Adhesives
Phillips screwdriver (small) Hobby knife
Medium CA Thin CA

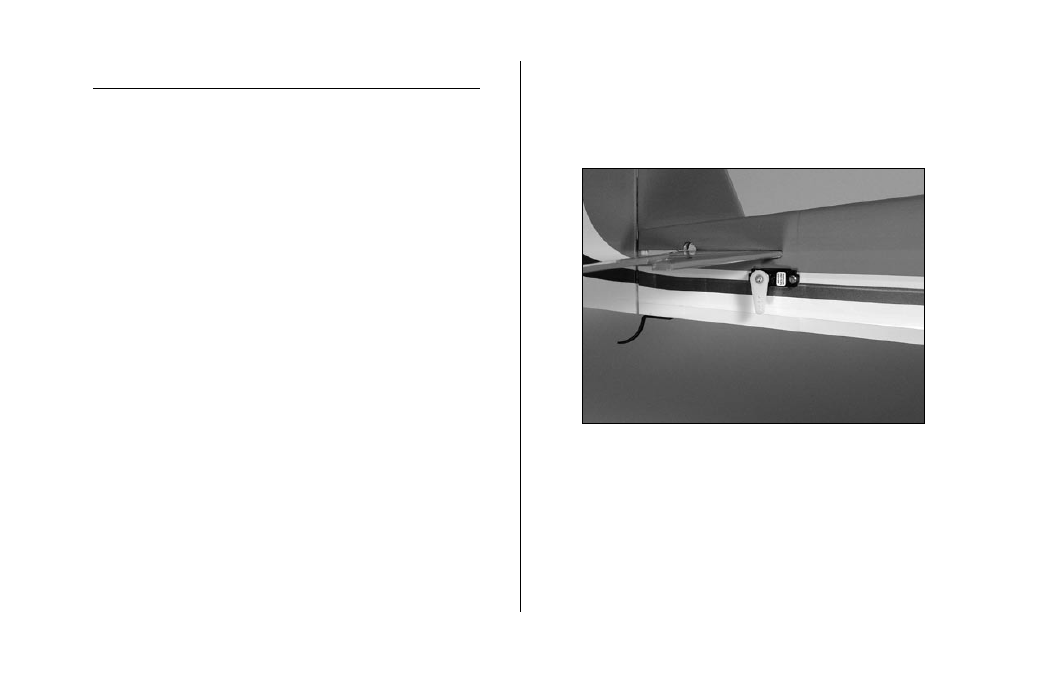

 1. Install the grommets and brass eyelets in the elevator
servo. Secure a 12" (305 mm) servo extension to the
servo. Mount the elevator servo using the hardware
provided with the servo.
 2. Use a hobby knife to enlarge the center hole in one
of the remaining control horns. Attach the 3" (75mm)
pushrod wire to the control horn.
