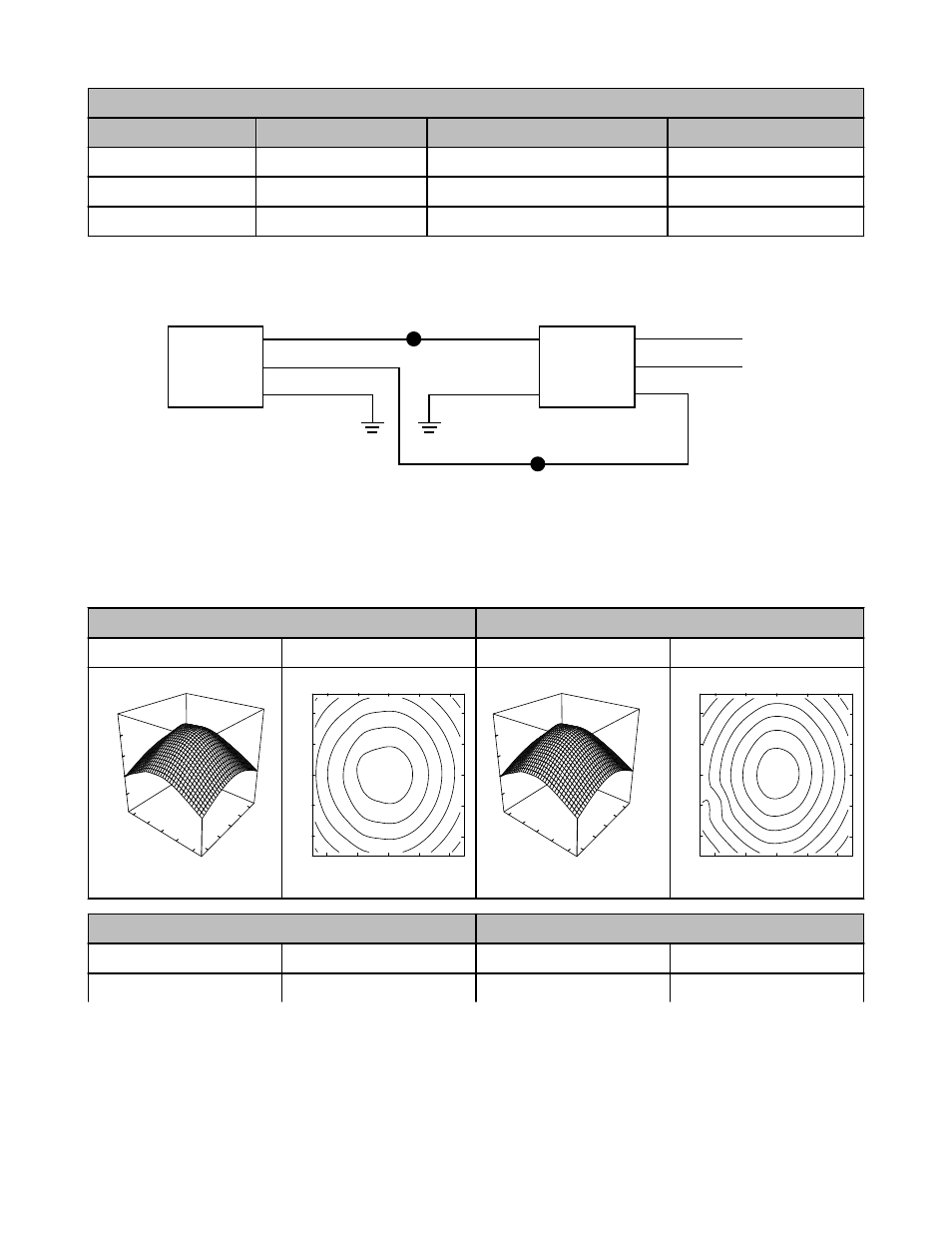

Banner Tubular Fluorescent Lights - Manual (Page 3)

Models with Lamps 24 Inches and Longer
Light Model Light Opening L1 Distance Between Mounting Holes L2 Overall Length L3
HFFW24ACR 605 mm (23.8") 773 mm (30.5") 785 mm (30.9")
HFFW36ACR 909 mm (35.8") 1080 mm (42.5") 1092 mm (43.0")
HFFW48ACR 1214 mm (47.8") 1384 mm (54.5") 1396 mm (55.0")
Wiring
External Ballast Models Only — See dimension drawings for wiring of built-in ballast models.
Lamp Ballast
Blue Blue
Brown
Green/Yellow Green/Yellow
Black/White
White
AC
Power
(connect to
ballast housing) (connect to
ballast housing)
Red
Beam Patterns
8-inch Models 12-inch Models
3D View Top View 3D View Top View
-8
-16
-8
0
8
16
5
10
15
20
25
-16
0
8
16
inches
E[fc]
0 -16 -8 8 16
0
-16
-8
8
16
inches
16
18
20
E[fc]
-8
-16
-8
0
8
16
5
10
15
20
25
-16
0
8
16
inches
E[fc]
0 -16 -8 8 16
0
-16
-8
8
16
inches
25
27.5
30
E[fc]
22.5
14-inch and 15-inch Models 24-inch Models
3D View Top View 3D View Top View
HFFW.. High-Frequency Tubular Fluorescent Lighting
