Model Bulb
Length
Ballast Type Connection Supply Voltage Bulb Wat-
tage
HFFW36ACR 36" 25 W
HFFW48ACR 48" 32 W
Dimensions

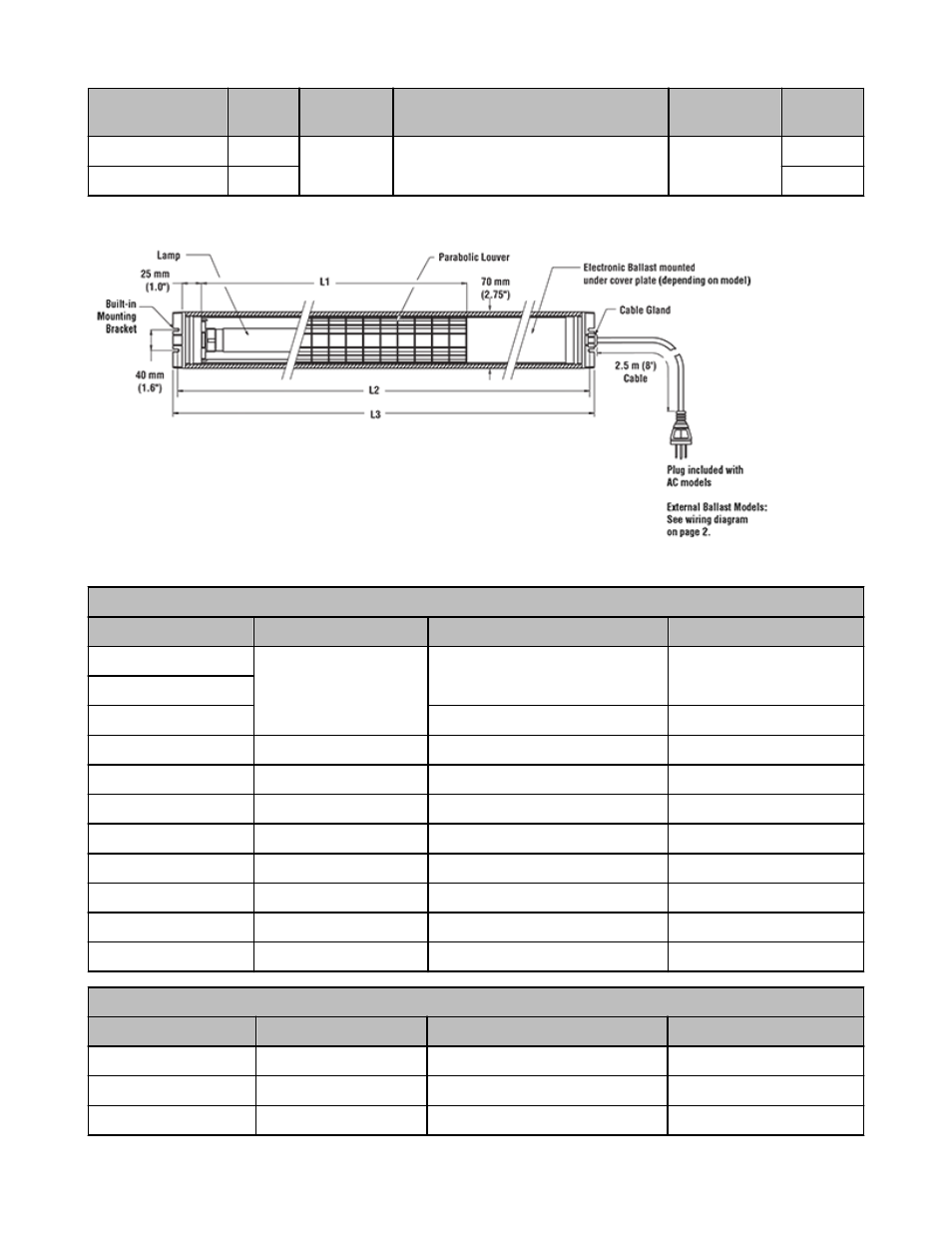

Figure 1. Dimensions for Models with Lamps 24 inches and Longer
Models with Lamps Up to 15 Inches Long
Light Model Light Opening L1 Distance Between Mounting Holes L2 Overall Length L3
HFFW8DC
198 mm (7.8")
501 mm (19.7") 513 mm (20.2")
HFFW8AC110
HFFW8AC230 468 mm (18.4") 480 mm (18.9")
HFFW12DC 318 mm (12.5") 620 mm (24.4") 632 mm (24.9")
HFFW12AC 315 mm (12.4") 700 mm (27.6") 712 mm (28.0")
HFFW14DC 363 mm (14.3") 727 mm (28.6") 739 mm (29.1")
HFFW15AC110 363 mm (14.3") 808 mm (31.8") 820 mm (32.3")
HFFW15AC230 363 mm (14.3") 854 mm (33.6") 866 mm (34.1")
HFFW8ACR 198 mm (7.8") 388 mm (15.3") 400 mm (15.8")
HFFW12ACR 293 mm (11.5") 467 mm (18.4") 479 mm (18.9")
HFFW15ACR 393 mm (15.5") 546 mm (21.5") 558 mm (22.0")
Models with Lamps 24 Inches and Longer
Light Model Light Opening L1 Distance Between Mounting Holes L2 Overall Length L3
HFFW24AC 604 mm (23.8") 1019 mm (40.1") 1031 mm (40.6")
HFFW36AC 909 mm (35.8") 1324 mm (52.1") 1336 mm (52.6")
HFFW48AC 1214 mm (47.8") 1644 mm (64.7") 1656 mm (65.2")
HFFW.. High-Frequency Tubular Fluorescent Lighting
