Page 4

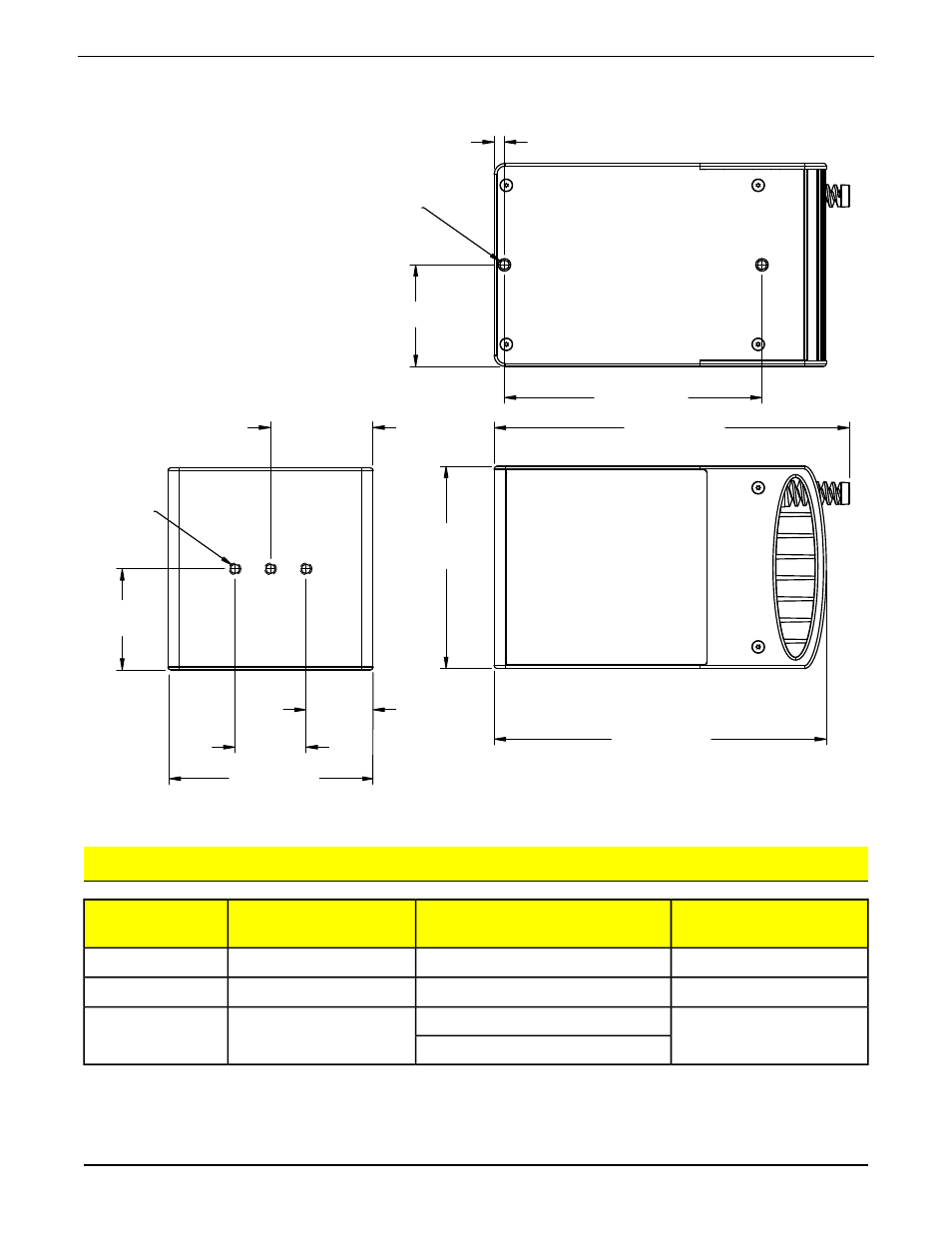

100 mm Models
178.0 mm (7.01")
109.3 mm (4.30")
190.3 mm (7.49")
109.9 mm (4.33")
38.1 mm
(1.50")
35.9 mm (1.41")
54.9 mm (2.16")
54.6 mm (2.15")
5.5 mm (0.22")
138.0 mm (5.43")
3X 1/4-20
UNC
54.9 mm (2.16")
4X 1/4-20 UNC
Wiring Table
External Power Supply
(Continuous)
External Power Supply (Strobed)
PresencePLUS Pro Con-
troller Terminal Block
On-Axis Light Wire
+V
+V
Pin 1, +V (24V dc ±10%)
Brown
-V
-V
Pin 2, -V (dc common)
Blue
-V
OFF
+5 to 24V dc
Pin 4 (strobe)
Black
ON
-V
P/N 126059 rev.
-
Banner Engineering Corp. - Minneapolis, MN USA - www.bannerengineering.com
Tel: 763.544.3164
4
LED..O..M Series Diffused On-Axis Lights
