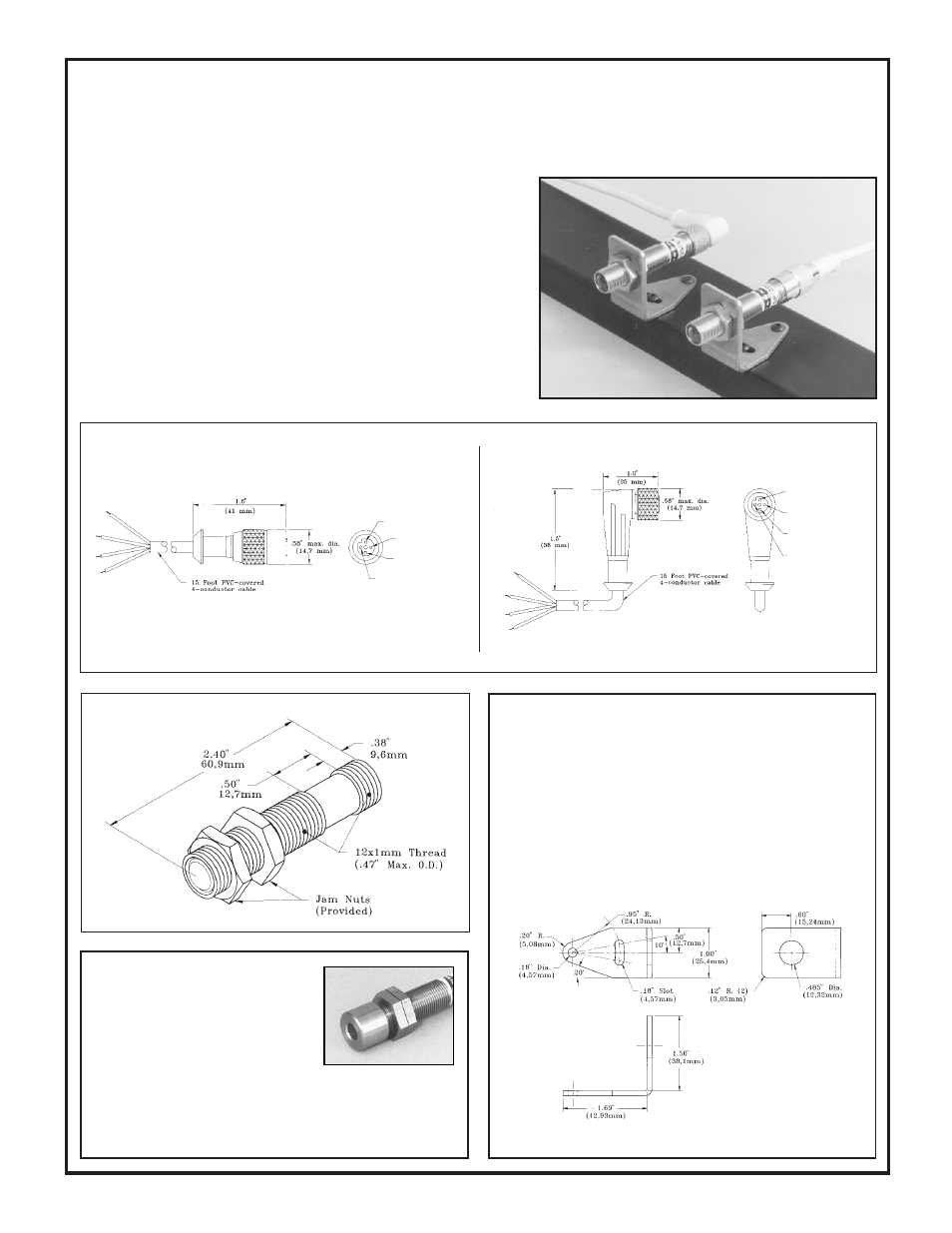

Model SMB12MM Mounting Bracket
Model SMB12MM is a stainless steel mounting bracket for SP12
Series sensors. The sensor mounts to the bracket using the two jam
nuts supplied with the sensor. This rugged, slotted bracket allows
±
10 degrees of lateral movement. Bracket is 12-gauge stainless
steel. The bracket mounting holes accommodate #8 hardware.
Dimensional Information for MQDC-415 Cable Dimensional Information for MQDC-415RA Cable
SP12 Series
Opposed Mode Remote Modulated Barrel Sensors
with Quick Disconnect (QD) Cable Option
Apertures
Rectangular and circular thread-on water-
tight apertures are available for SP12
sensors. Apertures are used to shape and
size the sensor's effective beam and to
protect the sensor's lens. Use of apertures
with these high-gain sensors makes it
possible to create very narrow, concentrated sensing beams for
demanding applications. Aperture Kit AP12SC includes three
round apertures with openings of .02", .04". and .10" diameter.
Aperture kit AP12SR has three rectangular apertures .02", .04",
and .10" wide. Both include lens, o-rings, and thread-on housing.
The stainless steel models of SP12 Series modulated remote barrel sensors
may be ordered with a built-in connector designed to mate with eurofast™
quick-disconnect (QD) cables. The resultant sensor model numbers are:
SP12SELQD (emitter), and
SP12SRLQD (receiver).
T he mating cables are ordered separately. Cables are available in 15 foot
lengths with either of two styles of mating connector. Cable model MQDC-
415 has a straight connector, and model MQDC-415RA has a right-angled
connector (see drawings below). In both models, the plug body is molded
to the PVC cable for waterproof integrity. Plug contacts are gold-plated.
Dimension Drawing
SMB12MM bracket:
White wire
Blue wire
Black wire
Brown wire
White wire
Blue wire
Black wire
Brown wire
