Banner MAXI-AMP Series - Manual

Printed in USA P/N 32882
•
•
•
•
Versatile, cost-effective sensor control modules: models
available for use with most Banner photoelectric sensors
Power supply, photoelectric amplifier (CD and CM
Series), programmable timing logic (CD5, CM5, and CL5
models), and output relay in a single, compact plug-in
module
CD5, CL5, and CM5 models include 12 selectable delay,
pulse, and latch timing logic functions
(single or dual functions)
All models have 5-amp SPDT electromechanical relay
output (solid-state switch optional); some models offer
additional solid-state dc switch (see table, page 2)

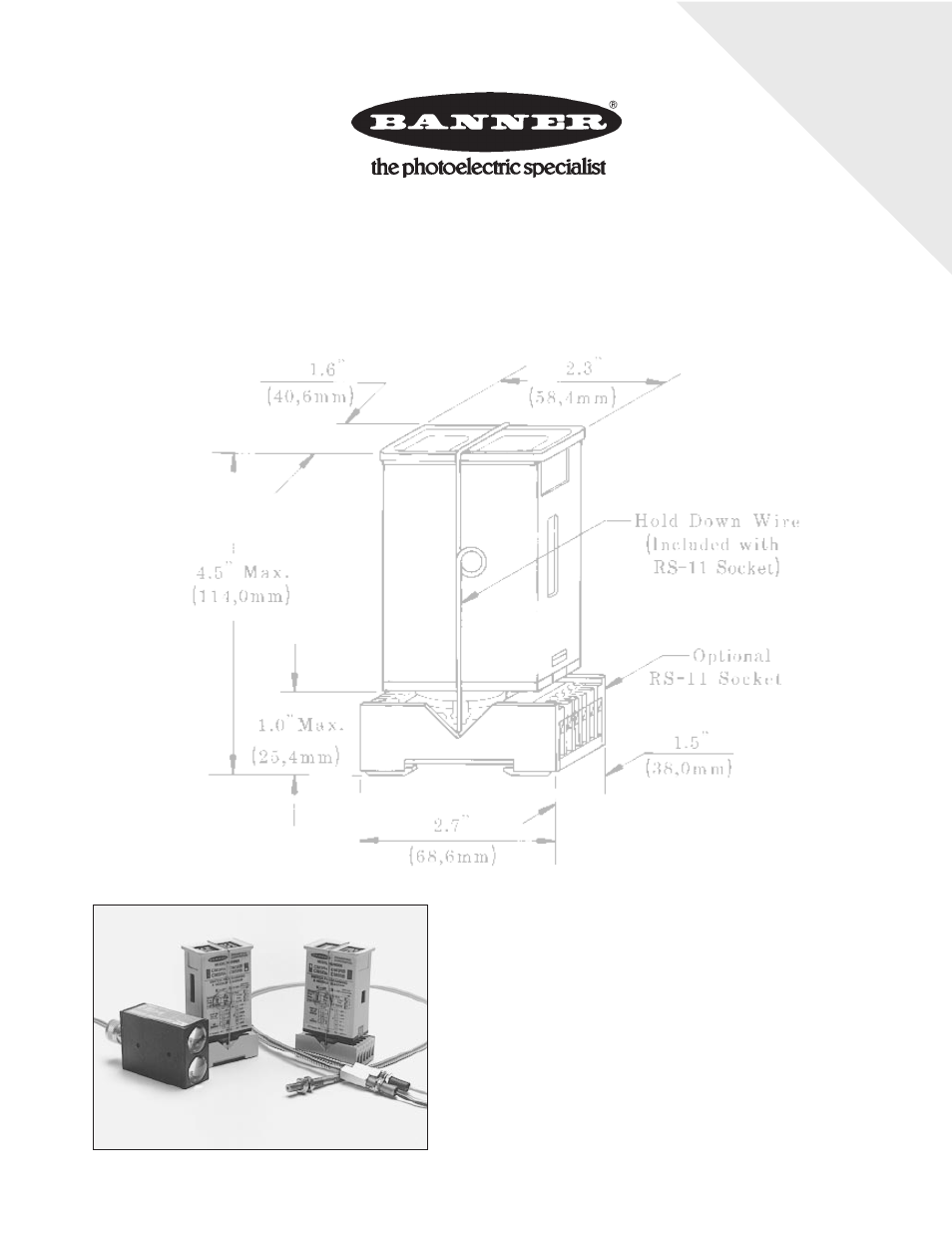

MAXI-AMP ® System
Stand-alone sensor control modules
Product
Line
Specifications
