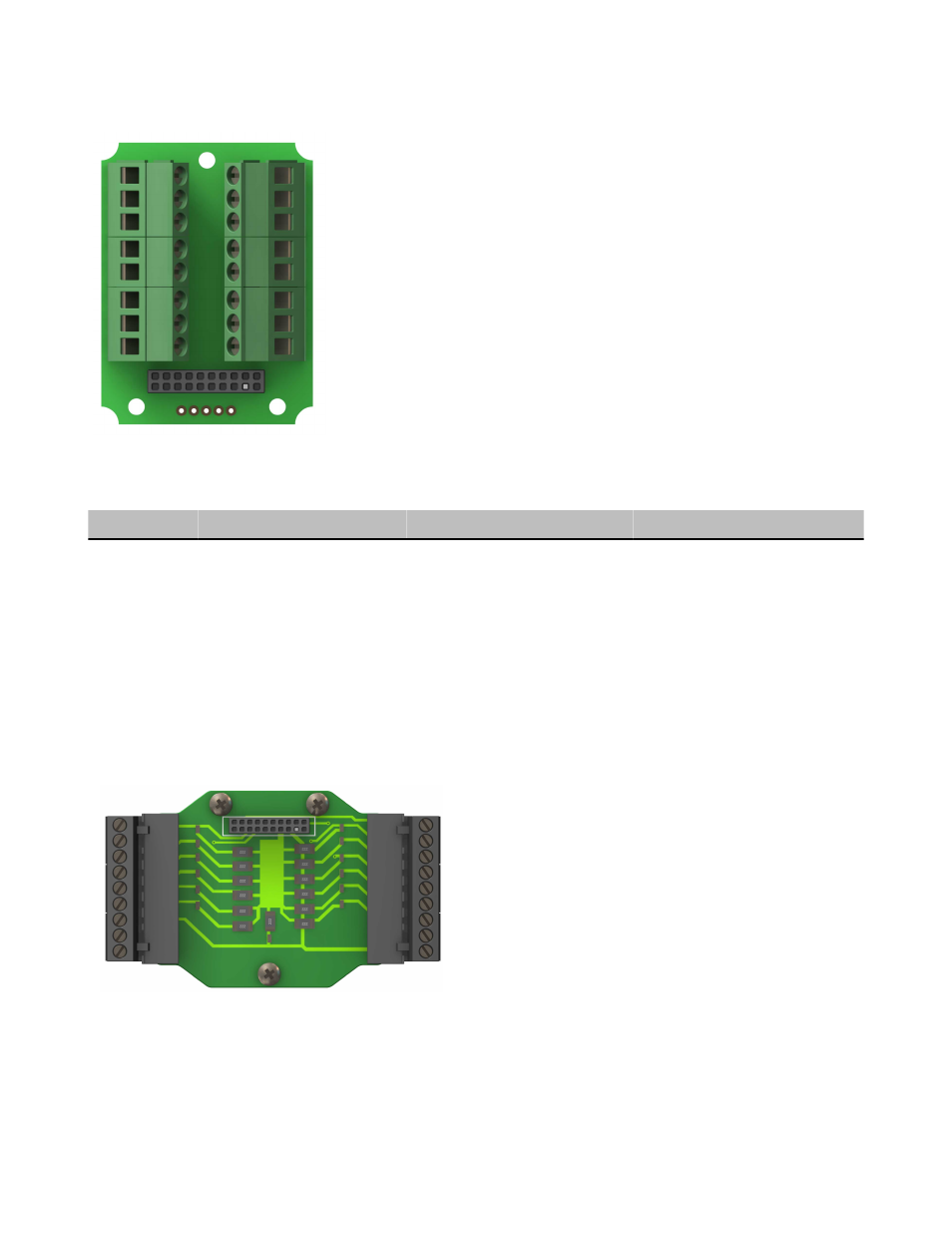

Terminal Block (IP67 Base)
PWR
GND
DO6
DO5
DO4
DO3
DO2
DO1
PWR
GND
DI6
DI5
DI4
DI3
DI2
DI1
DIx. Discrete IN x.
DOx. Discrete OUT x.
GND. Ground/dc common connection.
PWR. Power, 10 to 30V dc power connection.
DX80...C Wiring
Wiring power to the DX80...C models varies depending the power requirements of the model.
Terminal Label Gateway, DX85 * 10 to 30V dc Powered Nodes Battery Powered Nodes **
V+ 10 to 30V dc 10 to 30V dc
Tx/+ RS485 / D1 / B / +
V- dc common (GND) dc common (GND) dc common (GND)
Rx/- RS485 / D0 / A / -
B+ 3.6 to 5.5V dc
* Connecting dc power to the communication pins will cause permanent damage.
** For FlexPower devices, do not apply more than 5.5V to the gray wire.
Terminal Block (IP20 Base)
DI1
DI2
DI3
DI4
DI5
DI6
V+
V−
V−
DO1
DO2
DO3
DO4
DO5
DO6
TX/+
RX/−
V+
DIx. Discrete IN x.
DOx. Discrete OUT x.
RX/-. Serial comms line
TX/+. Serial comms line
V+. Power, 10 to 30V dc power connection.
V-. Ground/dc common connection.
Wiring Diagrams for Discrete Inputs
Connecting dc power to the communication pins will cause permanent damage. For the DX8x...C models, PWR in the wiring diagram
refers to V+ on the wiring board and GND in the wiring diagram refers to V- on the wiring board.
Discrete Input Wiring (PNP) Discrete Input Wiring (NPN)
SureCross DX80 Gateway with Discrete I/O
