Wiring Diagrams

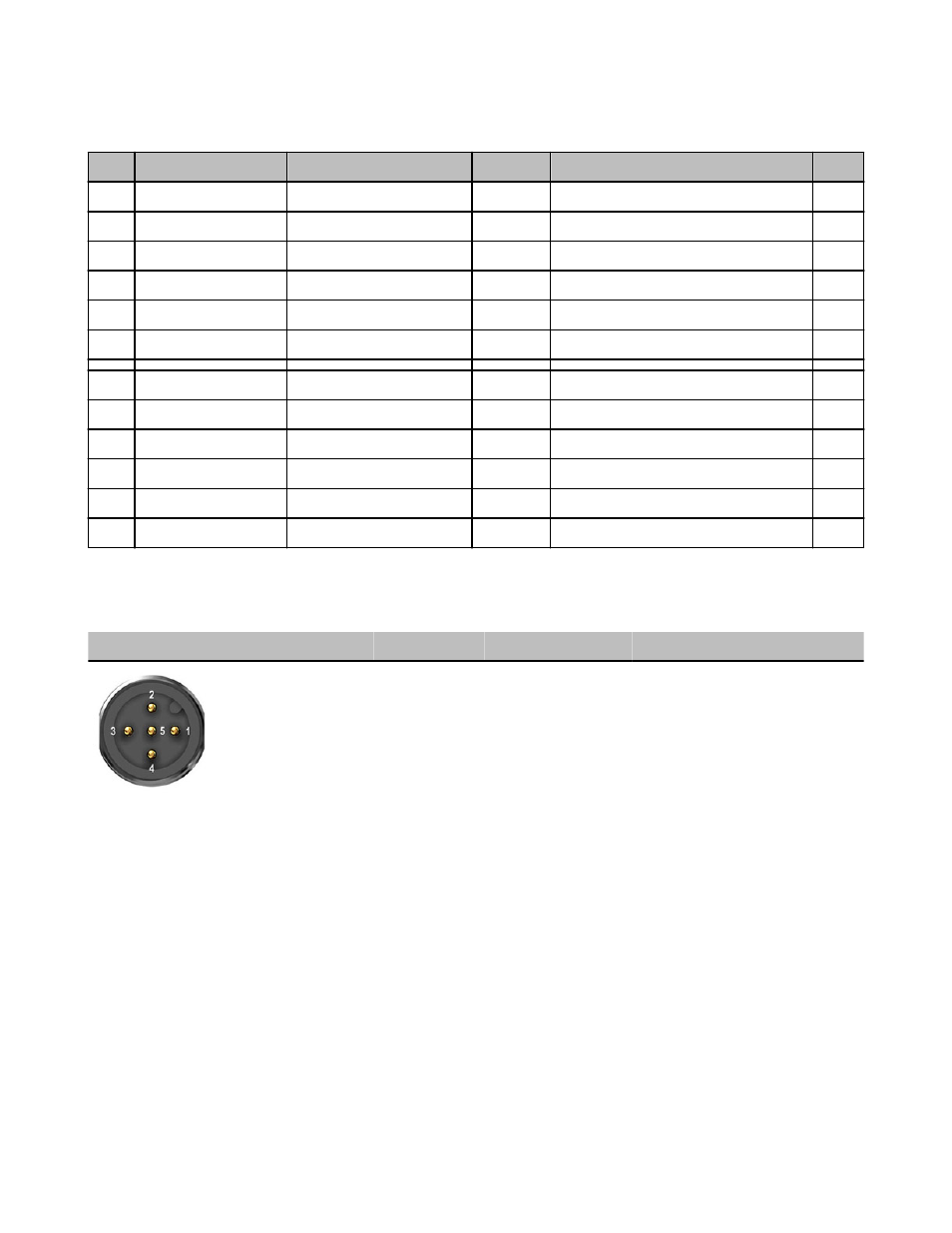

M-GAGE™ Gateway I/O Mapping
I/O Terminal Label M-GAGE Gateway M-GAGE Node I/O
1 DI1 Discrete IN 1 to Device 1, Baseline 14
2 DI2 Discrete IN 2 to Device 2, Baseline 14
3 DI3 Not used Not used
4 DI4 Not used Not used
5 DI5 DIP Switch Settings to Programmable Config, Node 1 14
6 DI5 DIP Switch Settings to Programmable Config, Node 2 14
9 DO1 Discrete OUT 1 from M-GAGE Sensor, Node 1 1
10 DO2 Discrete OUT 2 from M-GAGE Sensor, Node 2 1
11 DO3 Not used Not used
12 DO4 Not used Not used
13 DO5 Link Loss, Node 1 Not used
14 DO6 Link Loss, Node 2 Not used
5-pin Euro-Style Hookup
Wiring the 5-pin Euro-style connector depends on the model and power requirements of the device. Connecting dc power to the commu-
nication pins will cause permanent damage.
Wire No. Wire Color Description
1 Brown 10 to 30V dc
2 White RS485 / D1 / B / +
3 Blue dc common (GND)
4 Black RS485 / D0 / A / –
5 Gray Comms Gnd
SureCross DX80 Gateway with Discrete I/O
P/N 139075 rev. D www.bannerengineering.com - tel: 763-544-3164 3
