Banner SI-HG63 Hinge Style Switches User Manual
Page 6

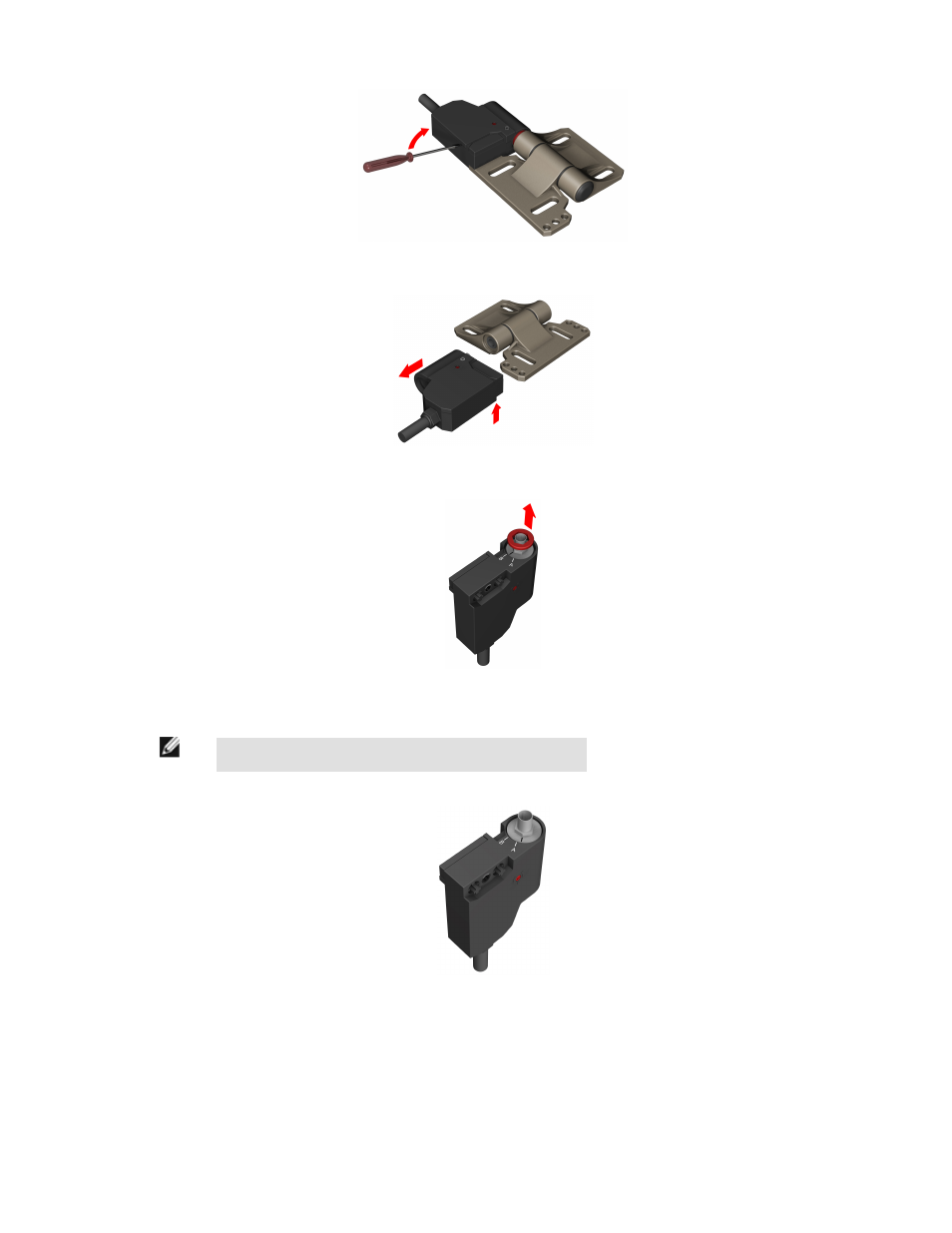

Figure 10. Remove the plugs
3. Remove the hinge portion from the switch.
Figure 11. Remove the hinge
4. Lift the red plastic washer from the switch. Discard the plastic washer; it cannot be reused.
Figure 12. Remove the plastic washer
5. Align the switch cylinder arrow with mark “A” on the switch housing.
NOTE: An SW8 hex wrench is recommended for easy rotation.
Figure 13. Algin to "A"
6. Gently press and turn the switch element into the enclosure until the switch cylinder arrow aligns with mark “B” on the switch hous-
ing.
Hinge Wing Safety Interlock Switches
6
www.bannerengineering.com - tel: 763-544-3164
Datasheet
129465_web Rev.
D
