Specifications
Contact Rating
3 A @ 230V ac max., 1.0 A @ 24V dc max.
2.5 kV max. transient tolerance
European Rating:
U
i
= 250V
U
e
= 230V AC, 24V DC
Ithe = 4A
Utilization categories: AC-15: U
e
/I
e
230 V / 3A;
DC-13: U
e
/I
e
24 V / 1 A (IEC/EN 90497-5-1)
Electrical Protection Class
II, protective insulation
Contact Function
Slow make and break contacts, 2 N.C., 1 N.O.
Switching Frequency
Max. 300 operations/h (5 operations per minute)
Switching Angle
N.C. Contact: ± 3°, Positive-opening ± 6° (wear can
cause increase by 2°)
N.O. Contact: ± 9°
Tolerance for all angles: 1.5°
Mechanical Load
SI-HG63..: F
R1
= 1800 N max., F
R2
= 750 N max., F
A
=
1800 N max.
SI-HGZ63..: F
R1
= 1200 N max., F
R2
= 500 N max., F
A
= 1200 N max.

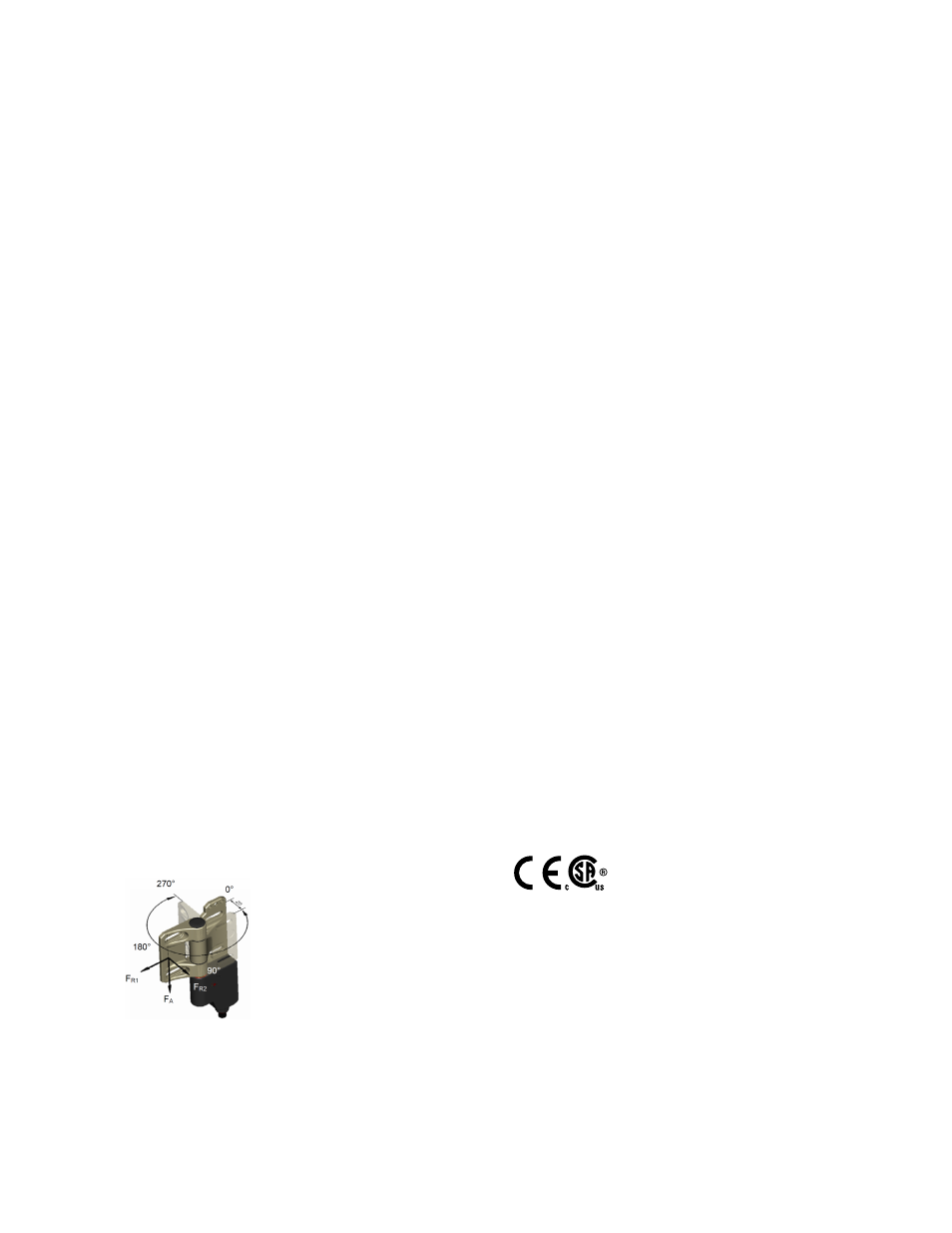

For direction of loaded forces, see Operating Range
Mechanical Life
1 million operations
Excessive loading (force) and/or vibration, as well as
improper installation, can reduce the service life.
B10d
2 x 10 6 cycles
Short Circuit Protection
4 amp Slow Blow. Recommended external fusing or
overload protection.
Operating Range
0 to 270°
Wire Connections
6-pin Micro-style quick-disconnect fitting (M12 Dual-
Key-Way). Cordsets are ordered separately.
Construction
SI-HG63..: Hinge: Cast Stainless Steel (X22CrNi 17);
Switch: PBT
SI-HGZ63..: Hinge: zinc die cast (nickel finish); Switch:
PBT
Environmental Rating
IP67 acc. to IEC/EN 60529
Operating Conditions
–25 °C to +70 °C (−13 °F to +158 °F)
(connecting cable permanently mounted; no freezing
over / no condensation)
Mounting
4 x M6 screws DIN EN ISO 7984 (on flat and stiff sur-
face)
Weight
SI-HG63..: approximately 0.45 kg
SI-HG63A: approximately 0.27 kg
SI-HGZ63..: approximately 0.4 kg
SI-HGZ63A: approximately 0.22 kg
Application Notes
To avoid excessive radial stress in applications con-
taining large doors, the hinge switch must be mounted
either in pairs of two, or in conjunction with a blank
hinge.
Applicable Standards
VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
EU-Conformity
According to directive 2006/42/EG
According to directive 2006/95/EC
Approvals
C
CSA
US
B300
Certifications
Guard Opening Calculation (before switching)
The size opening between the machine frame and the guard can be estimated based on the table provided. This can assist in determin-
ing safety distance as described by ANSI B11.19 or ISO 13857.
Hinge Wing Safety Interlock Switches
