CONNECTING AND CONFIGURING YOUR CABLE/DSL ROUTER
14
3.3 Plug the loose end of the cable you just unplugged into the port on the
back of the Router labeled “Internet/WAN”.
3.4 Connect the new network cable from the back of the computer to one of
the ports labeled “1–4”. Note: It does not matter which numbered port
you choose.
3.5 Turn on your cable or DSL modem by reconnecting the power supply to
the modem.
3.6 Before plugging the power cord into the Router, plug the cord into the
wall, then plug the cord into the Router’s power jack.
3.7 Verify that your modem is connected to the Router by checking the lights
on the front of the Router. The green light labeled “WAN” should be ON if
your modem is connected correctly to the Router. If it is not, recheck
your connections.
3.8 Verify that your computer is connected properly to the Router by
checking the lights labeled “LAN 1,2,3,4”. The light which corresponds to
the numbered port that you connected your computer to should be ON if
your computer is connected properly.

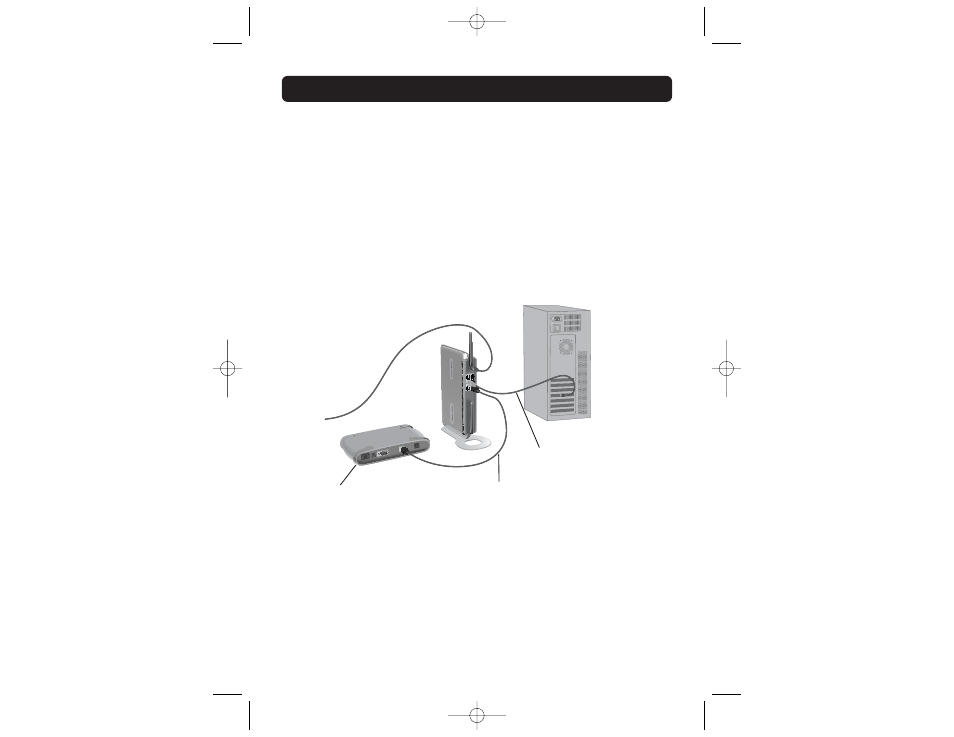

Computer that was originally connected to
the cable or DSL modem
To power
adapter
Cable or
DSL modem
New network cable
(to computer)
Existing network cable
(that came with modem)
